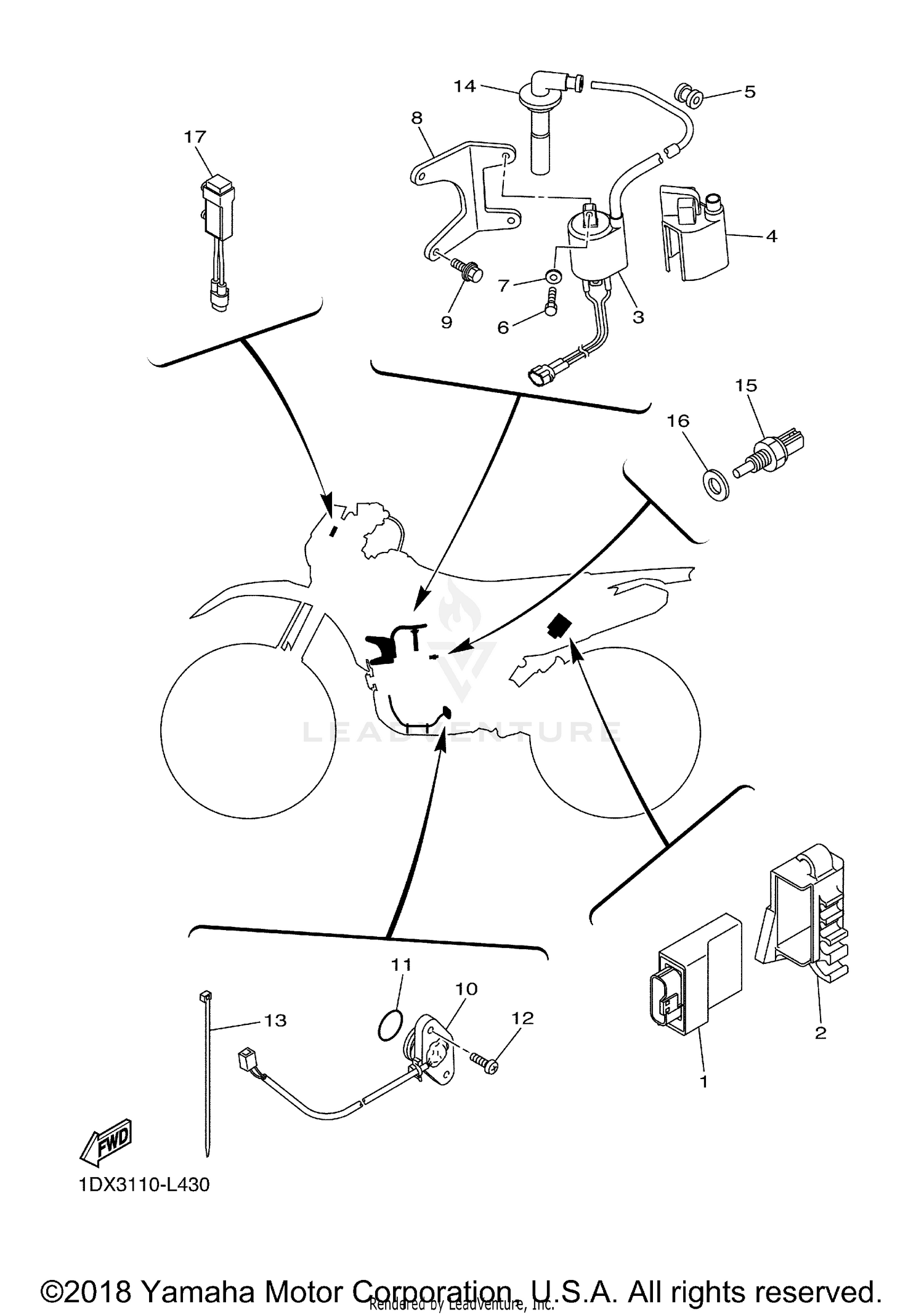

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ENGINE CONTROL UNIT ASSY
1DX-8591A-20-00
|
$568.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAND
1DX-85546-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
ROTOR ASSY
1DX-82310-00-00
Superseded by 1DX-82310-01-00
|
$84.99 | ||
|
Unavailable |
|||
|
#4
COVER, IGNITION COIL
1DX-82314-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-11015-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
97002-05020-00
Superseded by 97027-05020-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
92902-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, IGNITION COIL
1DX-82316-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, WITH WASHER
90119-06265-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
NEUTRAL SWITCH ASSY
1DX-82540-00-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-21001-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, BIND
90154-05022-00
Superseded by 98902-05014-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP 1
5Y9-12491-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG CAP ASSY
18P-82370-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
THERMO UNIT
4P9-83591-00-00
Superseded by 52B-H3591-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET
90430-10004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
RESISTOR ASSY
1DX-82718-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
