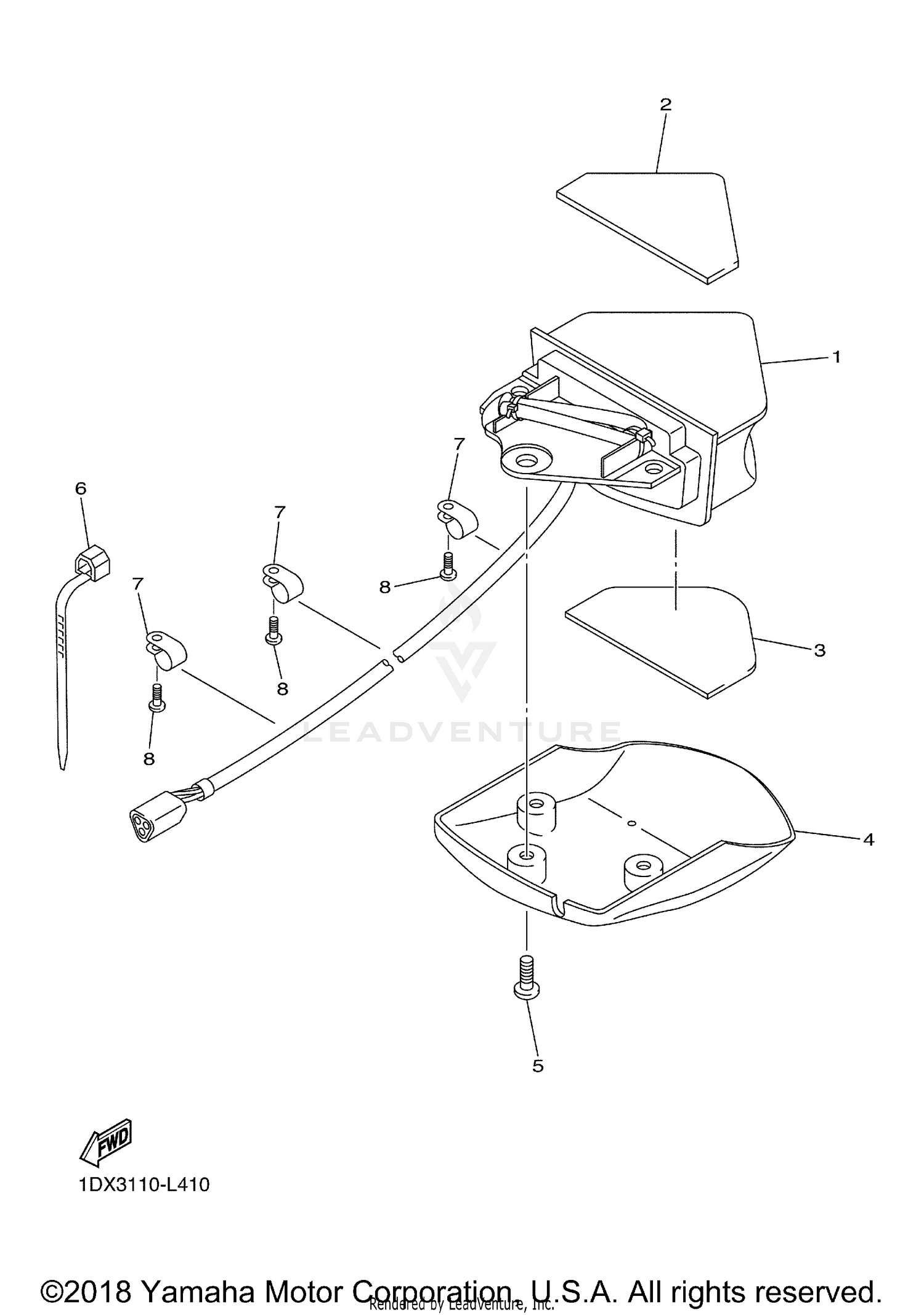

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSY
1DX-84710-00-00
Superseded by BNK-84710-00-00
|
$221.99 | ||
|
Unavailable |
|||
|
#2
DAMPER, TAIL 1
5UM-84736-E0-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, TAIL 2
5UM-84737-E0-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, TAILLIGHT
5UM-84716-E0-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, TAPPING
97702-50016-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
90464-11M18-00
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, TAPPING
97702-40010-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
