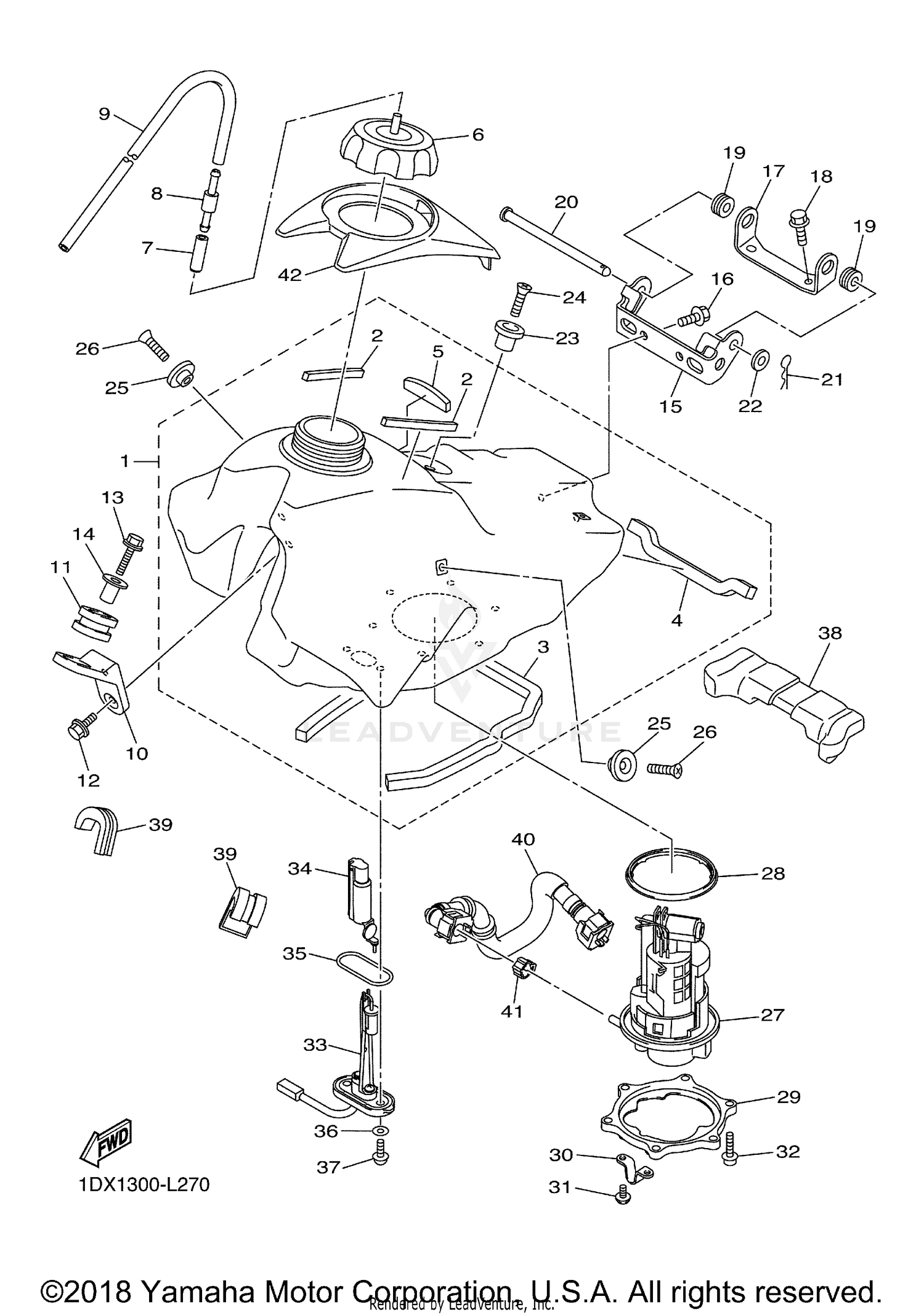

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK ASSY
1DX-24100-10-00
|
$665.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER 2
2C0-28227-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, PLATE
90520-10018-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, PLATE 6
2D1-2414R-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER, SEAT
1DX-24724-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP ASSY
5NY-24610-10-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE (L30)
90445-09027-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE JOINT ASSY
3XJ-24380-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE 5
90445-09005-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER, DAMPER
1DX-24144-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET
90480-17008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
90105-06107-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-06111-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPECIAL
3JD-24186-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, CANISTOR
33D-2419F-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-06107-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
BRACKET, FUEL TANK 1
1DX-24191-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
90105-06066-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET
90480-12025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, CLEVIS
90240-08007-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
90468-16001-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-087F0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET, SEAT
4EW-2412F-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, FLAT HEAD
98707-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRACKET, SEAT
17D-2412F-00-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, FLAT HEAD
98702-06020-00
Superseded by 98707-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
FUEL PUMP COMP.
33D-13907-00-00
Superseded by 33D-13907-02-00
|
$515.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING
33D-24486-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BRACKET, FUEL PUMP
33D-24491-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BRACKET, FUEL TANK 2
33D-24192-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, BIND
90154-05012-00
Superseded by 98907-05008-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, HEXAGON SOCKET HEAD
90110-05058-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SENDER UNIT ASSY, FUEL METER
1DX-85752-00-00
Superseded by 1DX-85752-01-00
|
$105.99 | ||
|
Unavailable |
|||
|
#34
COVER
1DX-24474-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
GASKET, SENDER UNIT
1DX-85753-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW
90149-06108-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#38
DAMPER, LOCATING 1
17D-24181-50-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
DAMPER, LOCATING 2
1DX-24182-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIPE, FUEL 1
1DX-13971-00-00
Superseded by 1DX-13971-03-00
|
$68.99 | ||
|
Unavailable |
|||
|
#41
CLAMP 1
33D-24135-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
COVER, CAP
1DX-2464E-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
