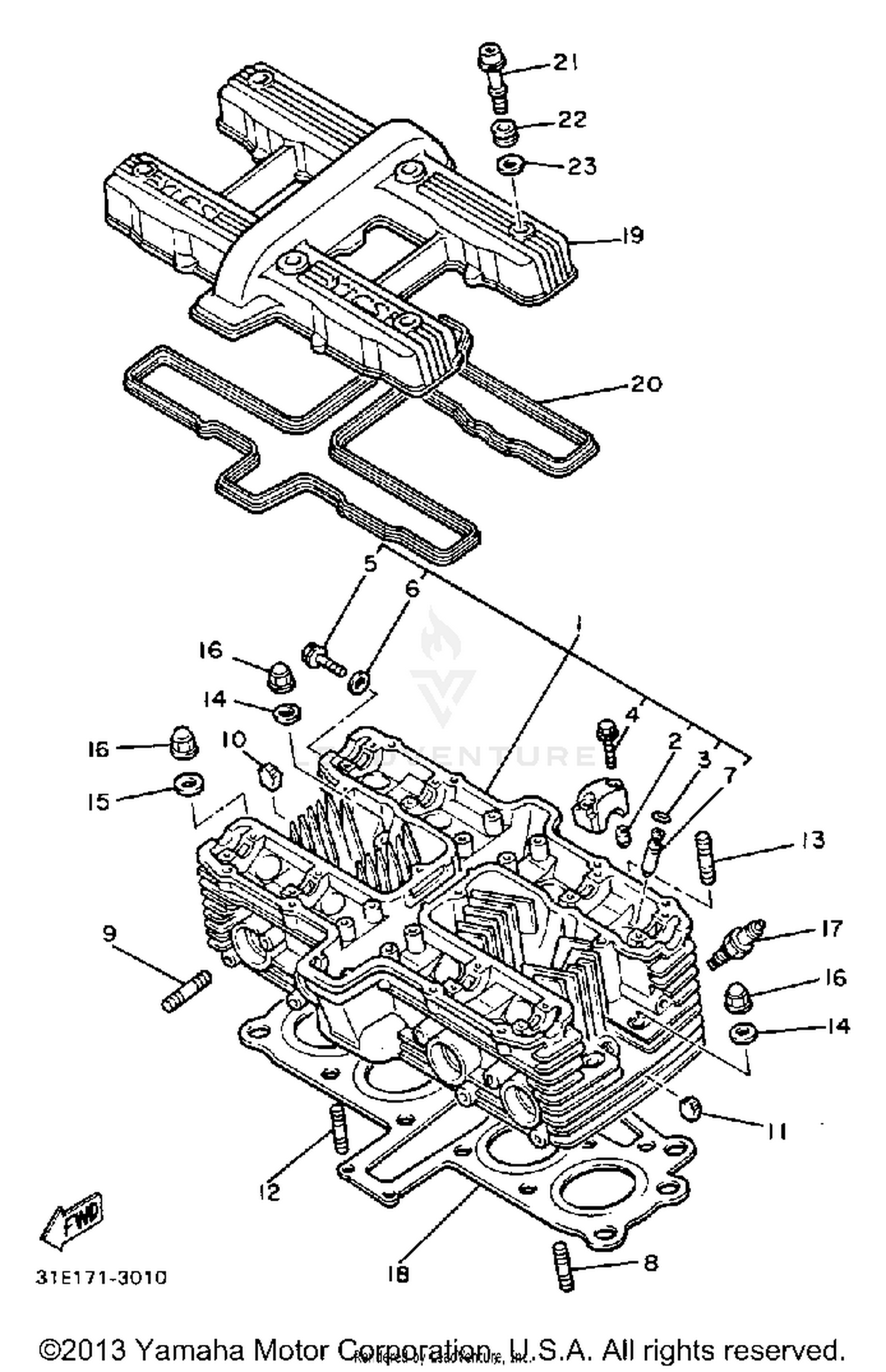

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSEMBLY (35H-111
35H-11101-01-00
|
$1,399.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99510-08016-00
Superseded by 91808-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
93440-12052-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-06153-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, HEXAGON
90153-06045-00
Superseded by 90153-06029-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE, VALVE 1
4H7-11133-10-00
Superseded by 4H7-11133-11-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, STUD
95612-06625-00
Superseded by 95617-06625-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, STUD
95611-06630-00
Superseded by 90116-06466-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
ABSORBER 1 (363-11161-00)
434-11161-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
ABSORBER 1
4H7-11161-00-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, STUD
95611-06630-00
Superseded by 90116-06466-00
|
$4.25 | ||
|
Unavailable |
|||
|
#13
BOLT, STUD
95611-08330-00
Superseded by 95617-08330-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-114G2-00
|
$0.99 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90201-10128-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, CROWN
90176-10033-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BPR7ES NGK - 4/PACK
NGK-BPR7E-S0-00
Superseded by BPR-7ES00-40-00
|
$2.95 | ||
|
Unavailable |
|||
|
#18
GASKET,CYL HEAD 1
31A-11181-00-00
Superseded by 58L-11181-00-00
|
$89.99 | ||
|
Unavailable |
|||
|
#19
COVER, CYLINDER HEAD 1
35H-11191-00-00
|
$67.51 | ||
|
Unavailable |
|||
|
#20
GASKET, HD.COVER 1
31A-11193-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
90109-064F0-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
RUBBER, MOUNT 1
2GH-1111G-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER
90209-11262-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
