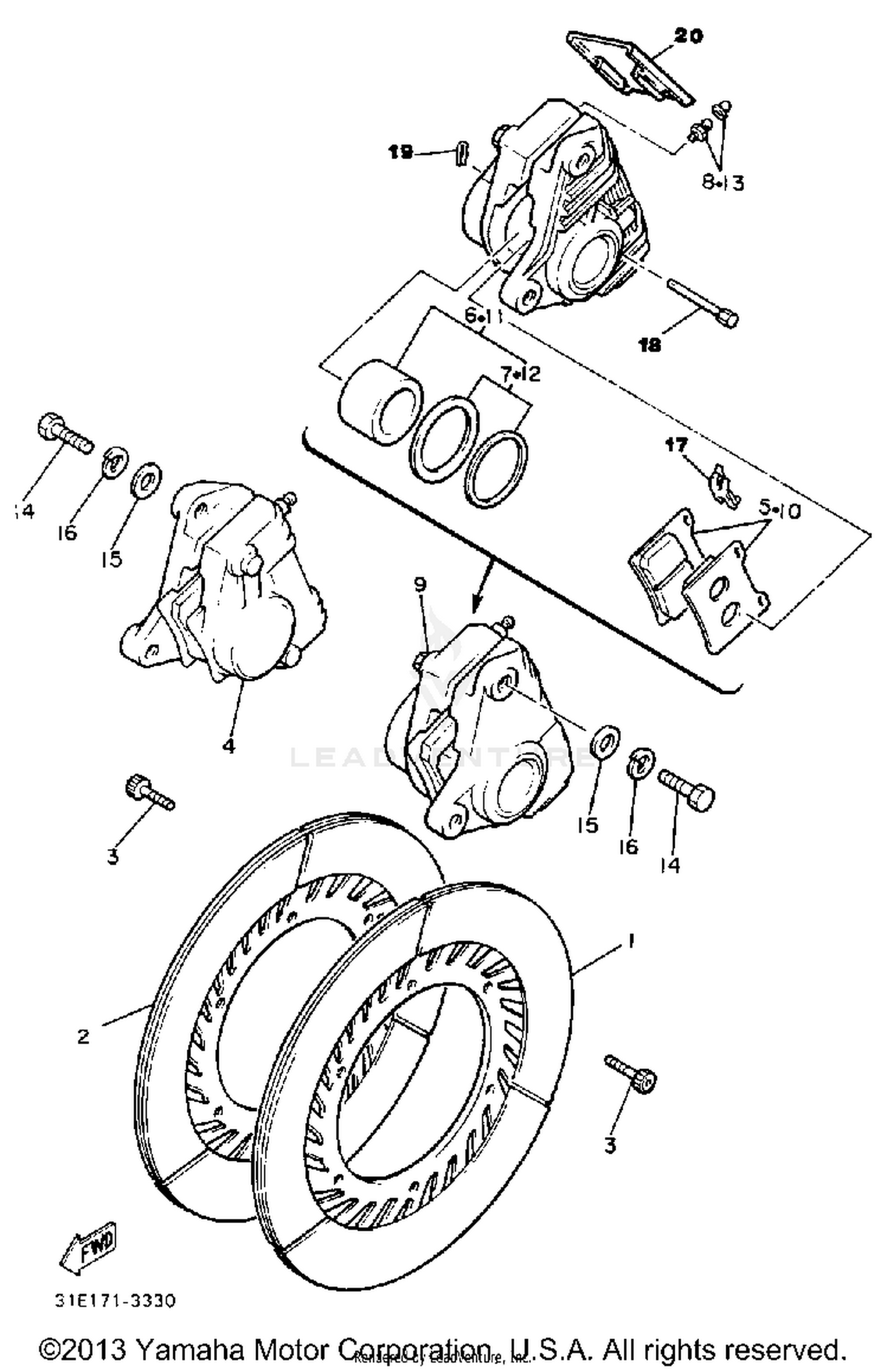

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE (31A-25831-00)
31A-25831-01-00
|
$352.99 | ||
|
Unavailable |
|||
|
#2
DISC, BRAKE (31A-25831-10)
31A-25831-11-00
|
$295.99 | ||
|
Unavailable |
|||
|
#3
BOLT,HEX. SOCKET BUT
90109-08718-00
Superseded by 90111-08084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CALIPER ASSEMBLY RH
31A-25810-00-00
|
$166.99 | ||
|
Unavailable |
|||
|
#5
BRAKE PAD KIT 2
26H-W0045-11-00
Superseded by 1FK-W0046-01-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PISTON ASSY, CALIPER
31A-W0057-00-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CALIPER SEAL KIT
31A-W0047-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BLEED SCREW KIT
1J3-W0048-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CALIPER ASSEMBLY LH
31A-25810-11-00
|
$210.99 | ||
|
Unavailable |
|||
|
#10
BRAKE PAD KIT, FRONT
31A-W0045-00-00
|
$25.13 | ||
|
Unavailable |
|||
|
#11
PISTON ASSY, CALIPER
31A-W0057-00-00
|
$135.99 | ||
|
Unavailable |
|||
|
#12
CALIPER SEAL KIT
31A-W0047-00-00
|
$54.99 | ||
|
Unavailable |
|||
|
#13
BLEED SCREW KIT
1J3-W0048-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE
90105-10638-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN
92990-10200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SUPPORT, PAD
26H-25919-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, PAD
3HE-25924-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
3HE-25925-00-00
Superseded by 3GM-25925-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, DUST 1
26H-25836-00-00
|
$8.02 | ||
|
Unavailable |
|||
