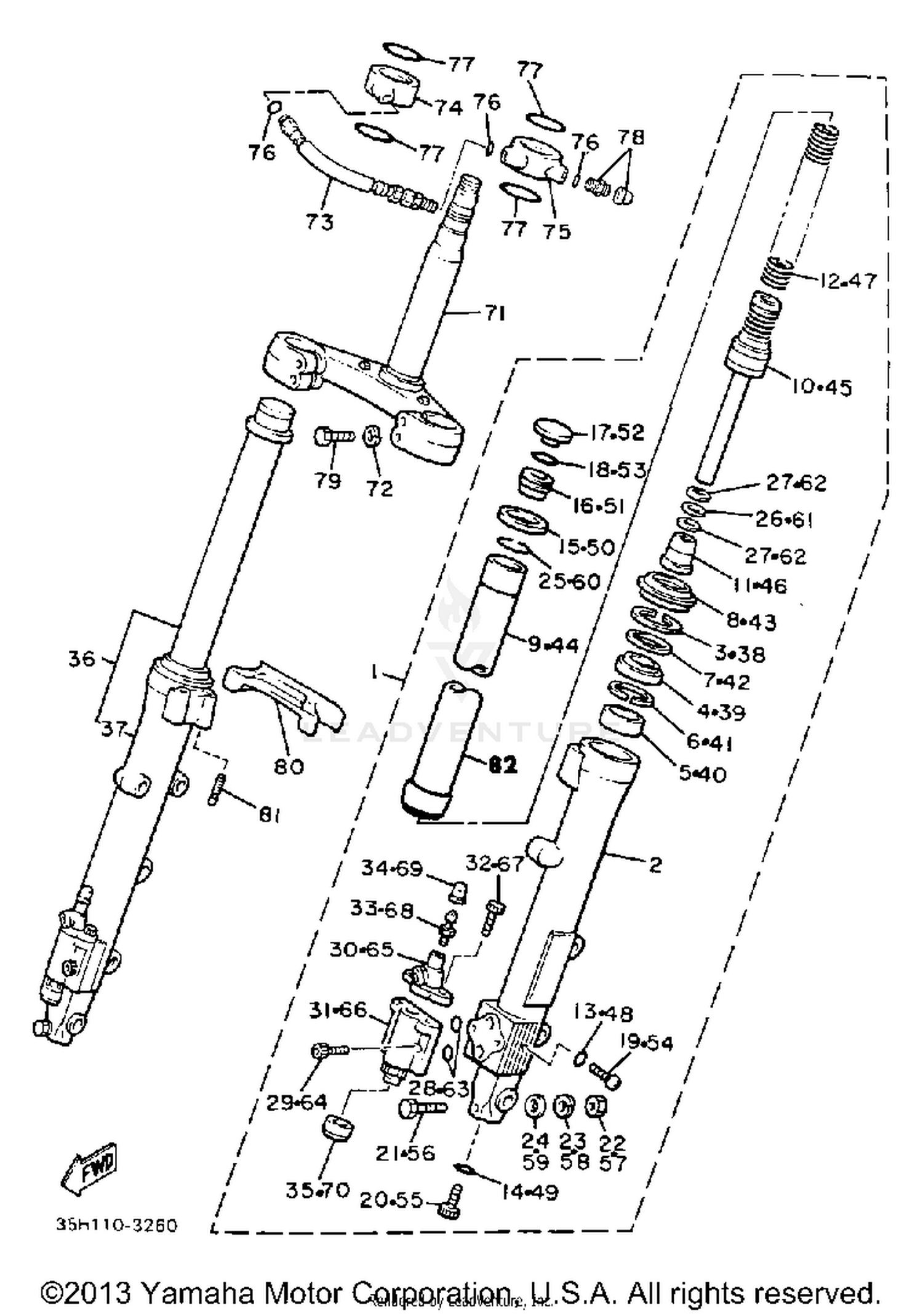

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY L
31A-23102-01-00
|
$335.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
31A-23126-31-00
|
$304.99 | ||
|
Unavailable |
|||
|
#3
RING, SNAP
3R4-23153-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL - (2H7-23145-00)
41Y-23145-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
31A-23125-31-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING UPPER
31A-23149-31-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, OIL SEAL
31A-23146-30-00
|
$3.96 | ||
|
Unavailable |
|||
|
#8
SEAL, DUST
31A-23144-30-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
INNER TUBE 1
31A-23110-31-00
|
$535.99 | ||
|
Unavailable |
|||
|
#10
CYLINDER, FRONT FORK
31A-23170-30-00
|
$87.56 | ||
|
Unavailable |
|||
|
#11
SPINDLE, TAPER
22N-23173-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#12
SPRING, FRONT FORK (31A-23141
31A-23141-31-00
|
$38.99 | ||
|
Unavailable |
|||
|
#13
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET (42H-23163-00-00)
2H7-23163-00-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, CAP
31A-23111-31-00
|
$56.99 | ||
|
Unavailable |
|||
|
#17
CAP, front fork
16G-23168-00-00
Superseded by 26H-23168-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET
1W1-23114-L0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
UNAVAILABLE IN PRICE BOOK (12
4H7-23119-01-00
|
|||
|
Unavailable |
|||
|
#20
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
4U8-23356-10-00
Superseded by 97017-08060-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
RING, SNAP
15R-23153-00-00
|
$4.45 | ||
|
Unavailable |
|||
|
#26
WASHER
22N-2319L-00-00
|
$3.65 | ||
|
Unavailable |
|||
|
#27
SPRING, VALVE
22N-2319M-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#28
O-RING
22N-23147-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEXAGON SOCKET HEAD
22N-23346-00-00
Superseded by 91314-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BRAKE PLUNGER ASSEMBLY 1
26H-2319F-00-00
|
$123.99 | ||
|
Unavailable |
|||
|
#31
DAMPER PISTON ASSEMBLY
26H-2319E-00-00
|
$123.99 | ||
|
Unavailable |
|||
|
#32
BOLT
22N-23356-00-00
Superseded by 91314-05012-00
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#33
BREATHER, AIR (26H-2319V-00-0
1TX-2319V-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#34
CAP
26H-2319W-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#35
CAP
22N-2319U-00-00
|
$7.10 | ||
|
Unavailable |
|||
|
#36
FRONT FORK ASSEMBLY R
31A-23103-01-00
|
$335.99 | ||
|
Unavailable |
|||
|
#37
TUBE, OUTER 2
31A-23136-30-00
|
$198.99 | ||
|
Unavailable |
|||
|
#38
RING, SNAP
3R4-23153-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#39
OIL SEAL - (2H7-23145-00)
41Y-23145-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#40
METAL, SLIDE 1
31A-23125-31-00
|
$33.99 | ||
|
Unavailable |
|||
|
#41
WASHER, SPRING UPPER
31A-23149-31-00
|
$7.49 | ||
|
Unavailable |
|||
|
#42
WASHER, OIL SEAL
31A-23146-30-00
|
$3.96 | ||
|
Unavailable |
|||
|
#43
SEAL, DUST
31A-23144-30-00
|
$25.99 | ||
|
Unavailable |
|||
|
#44
INNER TUBE 1
31A-23110-31-00
|
$535.99 | ||
|
Unavailable |
|||
|
#45
CYLINDER, FRONT FORK
31A-23170-30-00
|
$87.56 | ||
|
Unavailable |
|||
|
#46
SPINDLE, TAPER
22N-23173-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#47
SPRING, FRONT FORK (31A-23141
31A-23141-31-00
|
$38.99 | ||
|
Unavailable |
|||
|
#48
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#49
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Unavailable |
|||
|
#50
GASKET (42H-23163-00-00)
2H7-23163-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#51
BOLT, CAP
31A-23111-31-00
|
$56.99 | ||
|
Unavailable |
|||
|
#52
CAP, front fork
16G-23168-00-00
Superseded by 26H-23168-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#53
GASKET
1W1-23114-L0-00
|
$9.49 | ||
|
Unavailable |
|||
|
#54
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#55
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#56
BOLT
4U8-23356-10-00
Superseded by 97017-08060-00
|
$9.49 | ||
|
Unavailable |
|||
|
#57
NUT
95333-08600-00
|
$2.35 | ||
|
Unavailable |
|||
|
#58
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#59
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Unavailable |
|||
|
#60
RING, SNAP
15R-23153-00-00
|
$4.45 | ||
|
Unavailable |
|||
|
#61
WASHER
22N-2319L-00-00
|
$3.65 | ||
|
Unavailable |
|||
|
#62
SPRING, VALVE
22N-2319M-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#63
O-RING
22N-23147-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#64
BOLT, HEXAGON SOCKET HEAD
22N-23346-00-00
Superseded by 91314-06016-00
|
$7.49 | ||
|
Unavailable |
|||
|
#65
BRAKE PLUNGER ASSEMBLY 1
26H-2319F-00-00
|
$123.99 | ||
|
Unavailable |
|||
|
#66
DAMPER PISTON ASSEMBLY
26H-2319E-00-00
|
$123.99 | ||
|
Unavailable |
|||
|
#67
BOLT
22N-23356-00-00
Superseded by 91314-05012-00
|
$0.60 | ||
|
Unavailable |
|||
|
#68
BREATHER, AIR (26H-2319V-00-0
1TX-2319V-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#69
CAP
26H-2319W-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#70
CAP
22N-2319U-00-00
|
$7.10 | ||
|
Unavailable |
|||
|
#71
UNDER BRACKET COMP
31A-23340-31-00
|
$401.99 | ||
|
Unavailable |
|||
|
#72
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#73
HOSE, AIR
31A-2318F-30-00
|
$24.50 | ||
|
Unavailable |
|||
|
#74
JOINT, AIR
11T-2319A-00-00
|
$37.82 | ||
|
Unavailable |
|||
|
#75
JOINT, AIR 1
31A-2318A-30-00
|
$26.12 | ||
|
Unavailable |
|||
|
#76
O-RING
3J2-23147-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#77
O-RING
11T-23188-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#78
AIR VALVE
4V4-23190-L0-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#79
BOLT, HEXAGON
97313-08040-00
Superseded by 97014-08040-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#80
BRACE, FORK
31A-2313A-30-00
|
$117.99 | ||
|
Unavailable |
|||
|
#81
BOLT, HEXAGON SOCKET HEAD
31A-23181-30-00
Superseded by 91314-06020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#82
PISTON, FRONT FORK
31A-23171-30-00
|
$10.41 | ||
|
Unavailable |
|||
