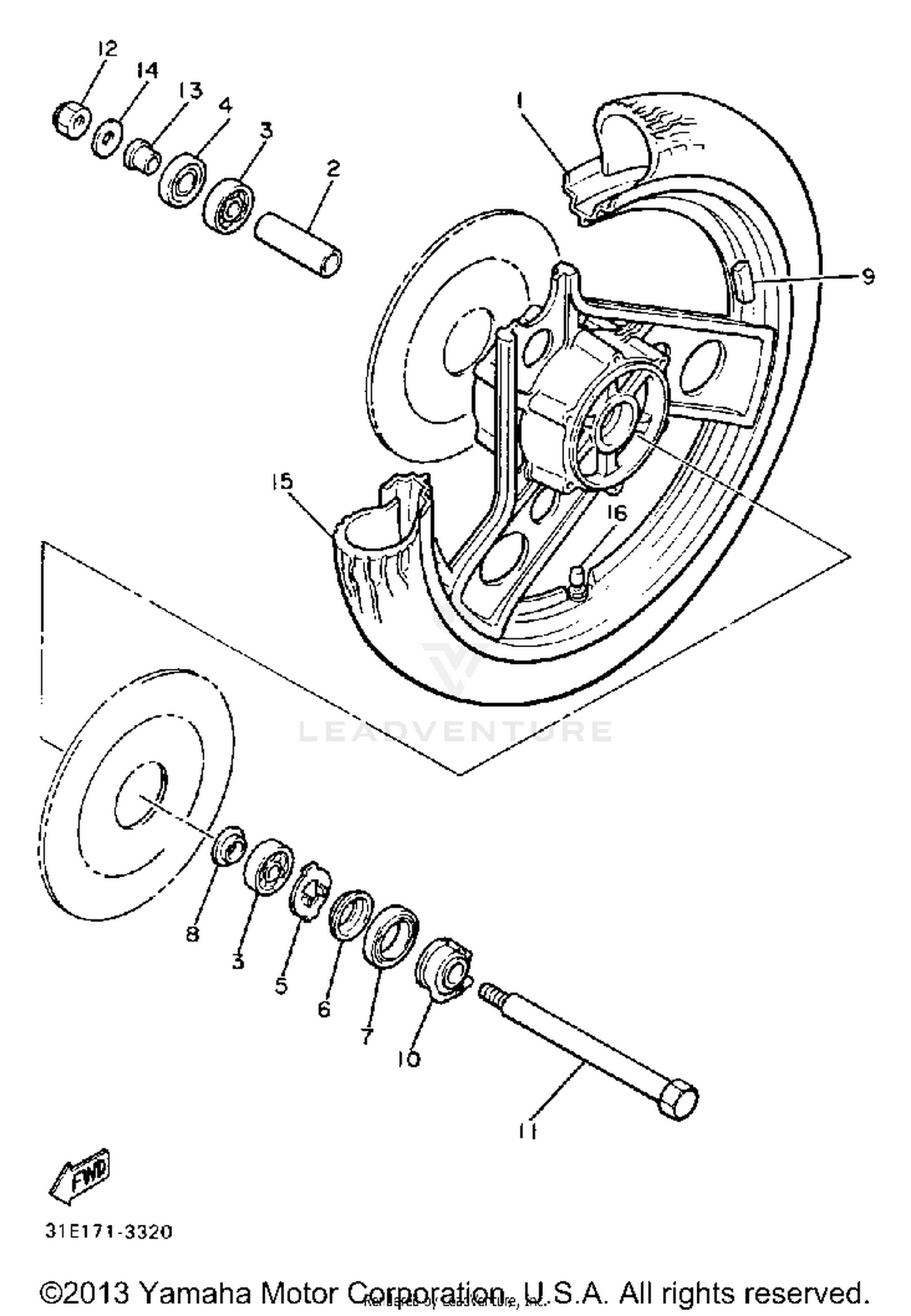

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, CAST FRONT
31E-25168-00-98
|
$572.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-15116-00
|
$13.99 | ||
|
Unavailable |
|||
|
#3
BEARING
93306-30202-00
Superseded by 93306-30212-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93102-22014-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLUTCH, METER
341-25149-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
RETAINER, CLUTCH
341-25846-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
93105-45017-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLANGE,SPACER 1
146-25115-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BALANCER, WHEEL (20G)
29L-25398-10-00
Superseded by 5MT-25398-10-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (30G)
29L-25398-20-00
Superseded by 5MT-25398-20-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
29L-25398-00-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR UNIT ASY
31A-25190-00-00
Superseded by 31A-25190-10-00
|
$87.99 | ||
|
Unavailable |
|||
|
#11
AXLE, WHEEL
31A-25181-00-00
Superseded by 525-25381-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#12
NUT, U
95601-14100-00
Superseded by 95617-14100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-15550-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLAIN
92990-14200-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
100/90V18 L303 TL
94110-184M9-00
|
$105.99 | ||
|
Unavailable |
|||
|
#16
VALVE, RIM
93900-00001-00
Superseded by 93900-00031-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
