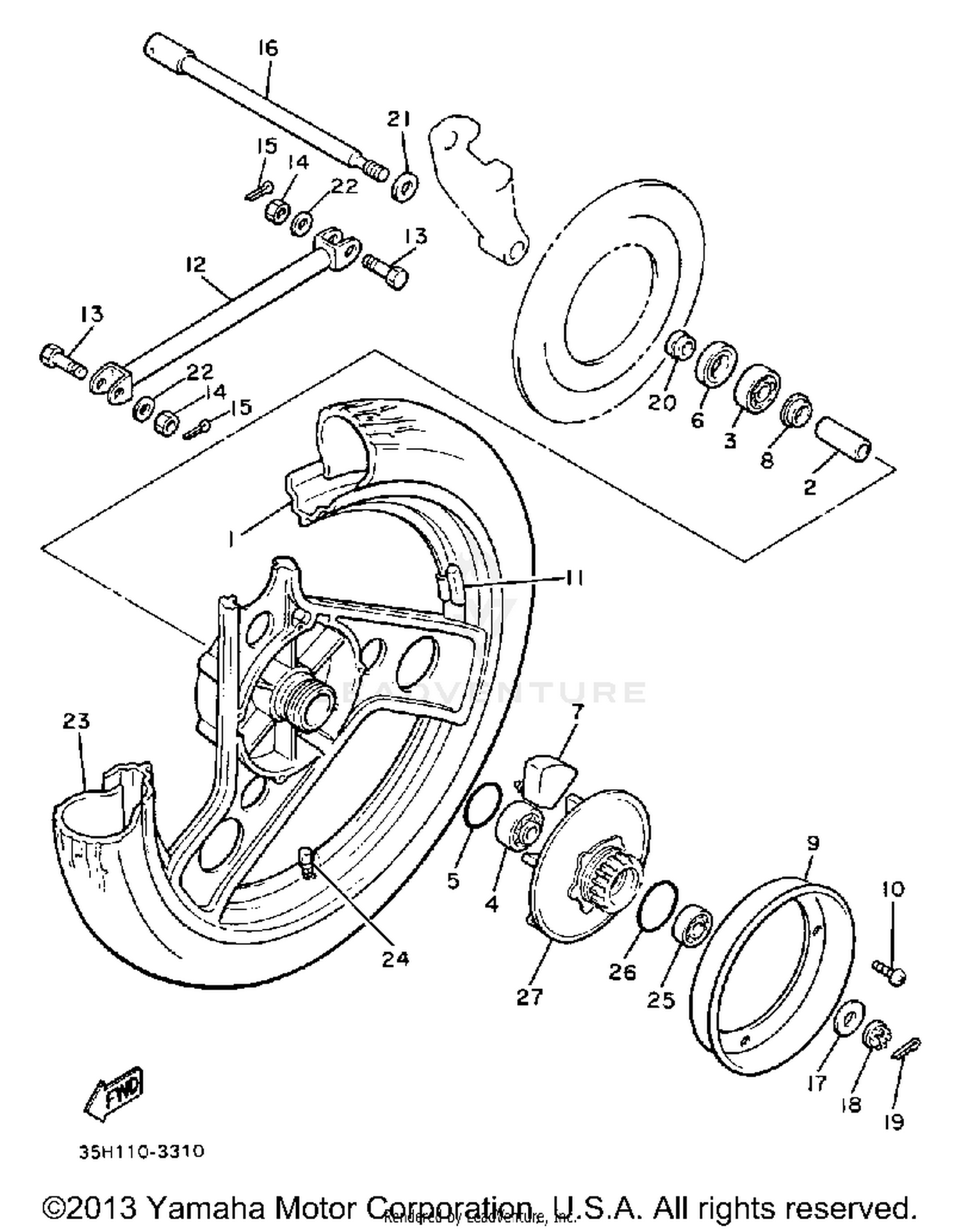

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, CAST REAR
31E-25338-20-98
|
$781.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-17204-00
|
$10.99 | ||
|
Unavailable |
|||
|
#3
BEARING
93306-30309-00
Superseded by 93306-30317-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93302-20306-00
|
$245.99 | ||
|
Unavailable |
|||
|
#5
O-RING
93210-48530-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93102-25044-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER
4G0-25364-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLANGE, SPACER
146-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, PLATE
31A-25327-00-00
|
$15.68 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
BALANCER, WHEEL (20G)
29L-25398-10-00
Superseded by 5MT-25398-10-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (30G)
29L-25398-20-00
Superseded by 5MT-25398-20-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
29L-25398-00-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAR, TENSION
31A-25371-00-00
|
$9.08 | ||
|
Unavailable |
|||
|
#13
BOLT, WITH HOLE
90102-10056-00
|
$8.49 | ||
|
Unavailable |
|||
|
#14
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
AXLE, WHEEL
31A-25381-00-00
|
$98.99 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
90201-144J5-00
Superseded by 90201-14022-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, CASTLE
90179-14217-00
Superseded by 90171-14031-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-177Y4-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
UNAVAILABLE IN PRICE BOOK (4H7-
56W-25277-00-00
|
|||
|
Unavailable |
|||
|
#22
WASHER, PLAIN
92906-10200-00
Superseded by 92907-10200-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
120/90V18 G516 TL
94112-185M1-00
|
$142.99 | ||
|
Unavailable |
|||
|
#24
VALVE, RIM
93900-00001-00
Superseded by 93900-00031-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING
93306-20310-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-57428-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLUTCH, HUB
31A-25366-00-00
|
$61.25 | ||
|
Unavailable |
|||
