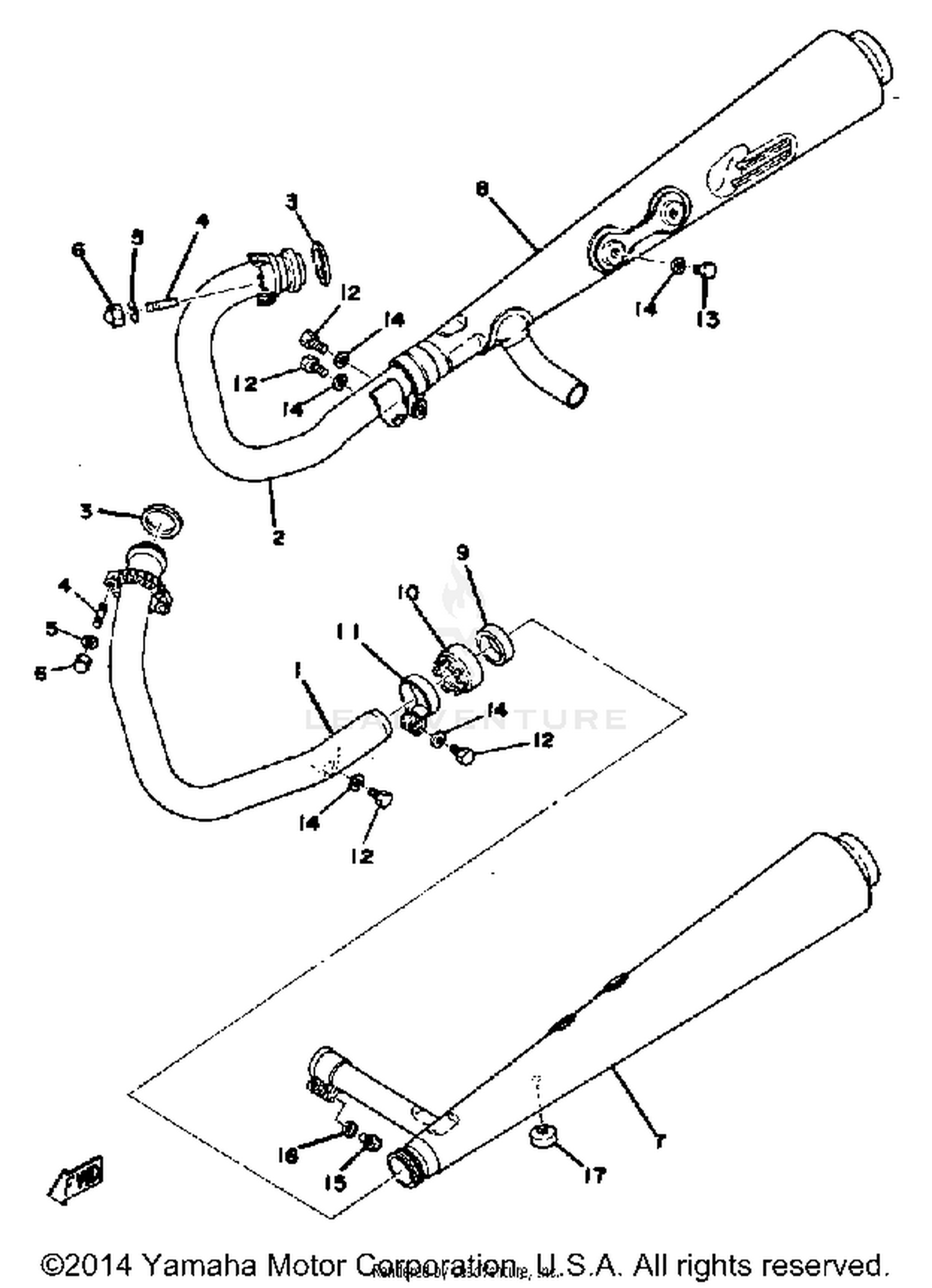

Exhaust Xs650c Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY L (447-14
447-14610-03-00
|
$154.99 | ||
|
Unavailable |
|||
|
#2
EXHAUST PIPE ASSEMBLY R (447-14
447-14620-03-00
|
$149.99 | ||
|
Unavailable |
|||
|
#3
GASKET, EXHAUST PIPE
90430-38054-00
Superseded by 3GD-14613-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, STUD
90116-10195-00
|
$2.95 | ||
|
Unavailable |
|||
|
#5
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
95303-10800-00
Superseded by 95380-10800-00
|
$14.90 | ||
|
Available to order. Add to View Price |
|||
|
#7
MUFFLER L (584-14711-00)
584-14711-80-00
|
$276.99 | ||
|
Unavailable |
|||
|
#8
MUFFLER R (584-14721-00)
584-14721-80-00
|
$286.99 | ||
|
Unavailable |
|||
|
#9
GASKET,MUFFLER
371-14714-03-00
Superseded by 371-14714-13-00
|
$12.49 | ||
|
Unavailable |
|||
|
#10
NUT, MUFFLER JOINT
371-14713-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#11
CLAMP, HOSE (447-14715-02)
90460-46057-00
|
$32.99 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE
95811-10016-00
Superseded by 95817-10016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT,HEXAGON
97011-10016-00
Superseded by 97017-10016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Unavailable |
|||
|
#15
BOLT
97001-08025-00
Superseded by 97017-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-09116-00
|
$0.55 | ||
|
Unavailable |
|||
|
#17
STOPPER, MAIN STAND
371-27114-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
