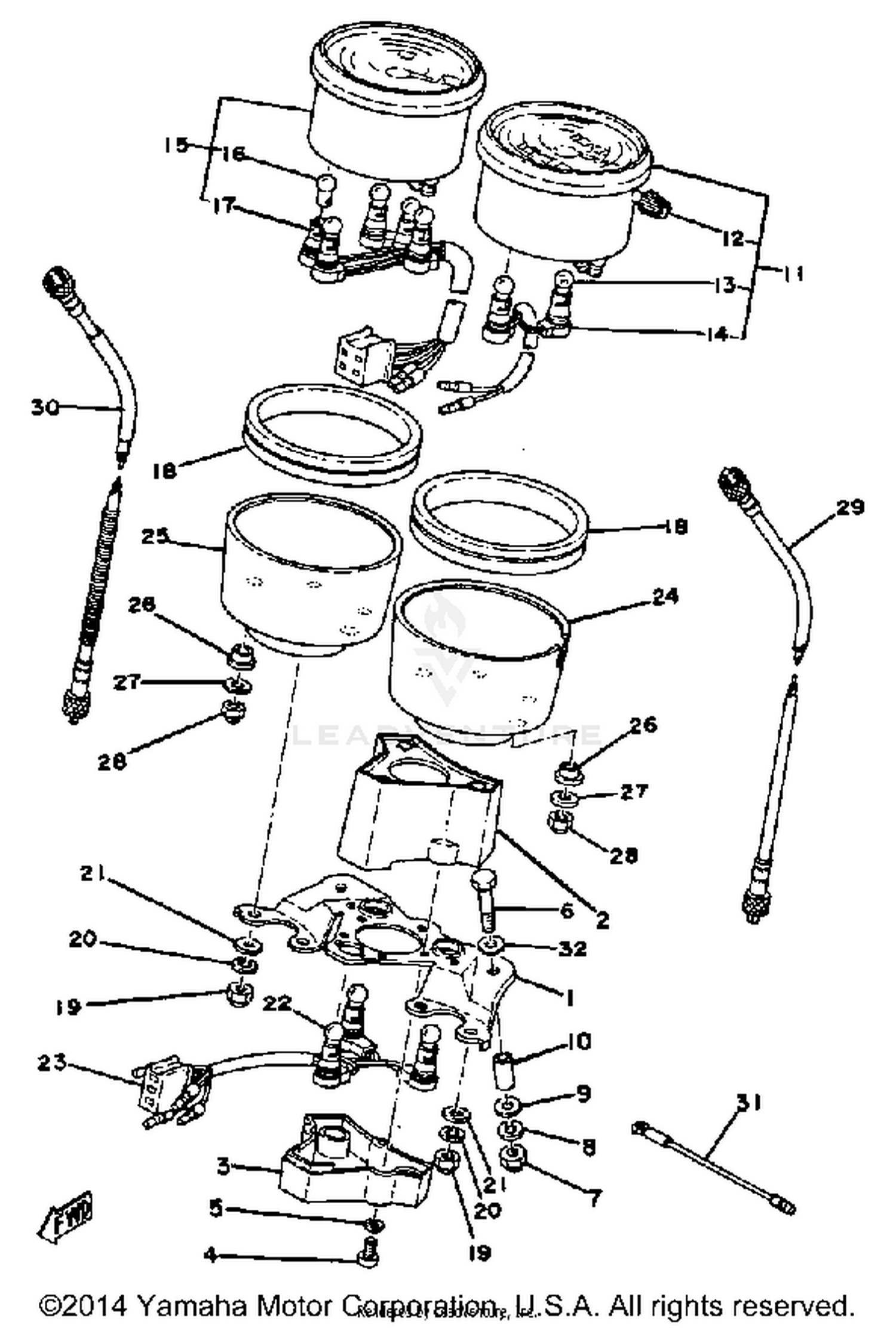

Meter Xs650c Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, METER
584-83519-00-00
|
$14.20 | ||
|
Unavailable |
|||
|
#2
PILOT BOX, UPPER
584-83568-00-00
|
$11.46 | ||
|
Unavailable |
|||
|
#3
PILOT BOX, LOWER
584-83569-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98580-04010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (682)
97313-06040-00
Superseded by 97095-06040-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, CROWN
95303-06800-00
Superseded by 95380-06800-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-06249-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPEEDOMETER ASSEMBLY
2Y4-83570-70-00
|
$166.99 | ||
|
Unavailable |
|||
|
#12
KNOB, TRIP METER
584-83578-71-00
Superseded by 4SV-83578-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BULB (12V-3.4W)
123-83516-21-00
Superseded by 123-83516-21-XX
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
CASE, SPDMTR UPPER
584-83571-00-00
|
$12.08 | ||
|
Unavailable |
|||
|
#15
TACHOMETER ASSEMBLY
584-83540-01-00
|
$114.99 | ||
|
Unavailable |
|||
|
#16
BULB (12V-3.4W)
123-83516-21-00
Superseded by 123-83516-21-XX
|
$4.75 | ||
|
Unavailable |
|||
|
#17
SOCKET CORD ASSEMBLY 3
584-83573-00-00
|
$15.90 | ||
|
Unavailable |
|||
|
#18
DAMPER
3H3-83513-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, CROWN
95303-06800-00
Superseded by 95380-06800-00
|
$7.49 | ||
|
Unavailable |
|||
|
#20
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#21
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
BULB (12V-3.4W)
123-83516-21-00
Superseded by 123-83516-21-XX
|
$4.75 | ||
|
Unavailable |
|||
|
#23
SOCKET CORD ASSEMBLY 2
584-83572-00-00
|
$14.42 | ||
|
Unavailable |
|||
|
#24
COVER, SPEEDOMETER
584-83507-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#25
COVER, TACHOMETER
584-83508-00-00
|
$18.86 | ||
|
Unavailable |
|||
|
#26
DAMPER
584-83523-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT (CROWN)
95303-05800-00
|
$1.30 | ||
|
Unavailable |
|||
|
#29
UNAVAILABLE IN PRICE BOOK
341-83350-01-00
|
|||
|
Unavailable |
|||
|
#30
TACHOMETER CABLE
447-83560-01-00
|
$45.99 | ||
|
Unavailable |
|||
|
#31
WIRE, EARTH (GROUND) LEAD 1
3FU-83364-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
