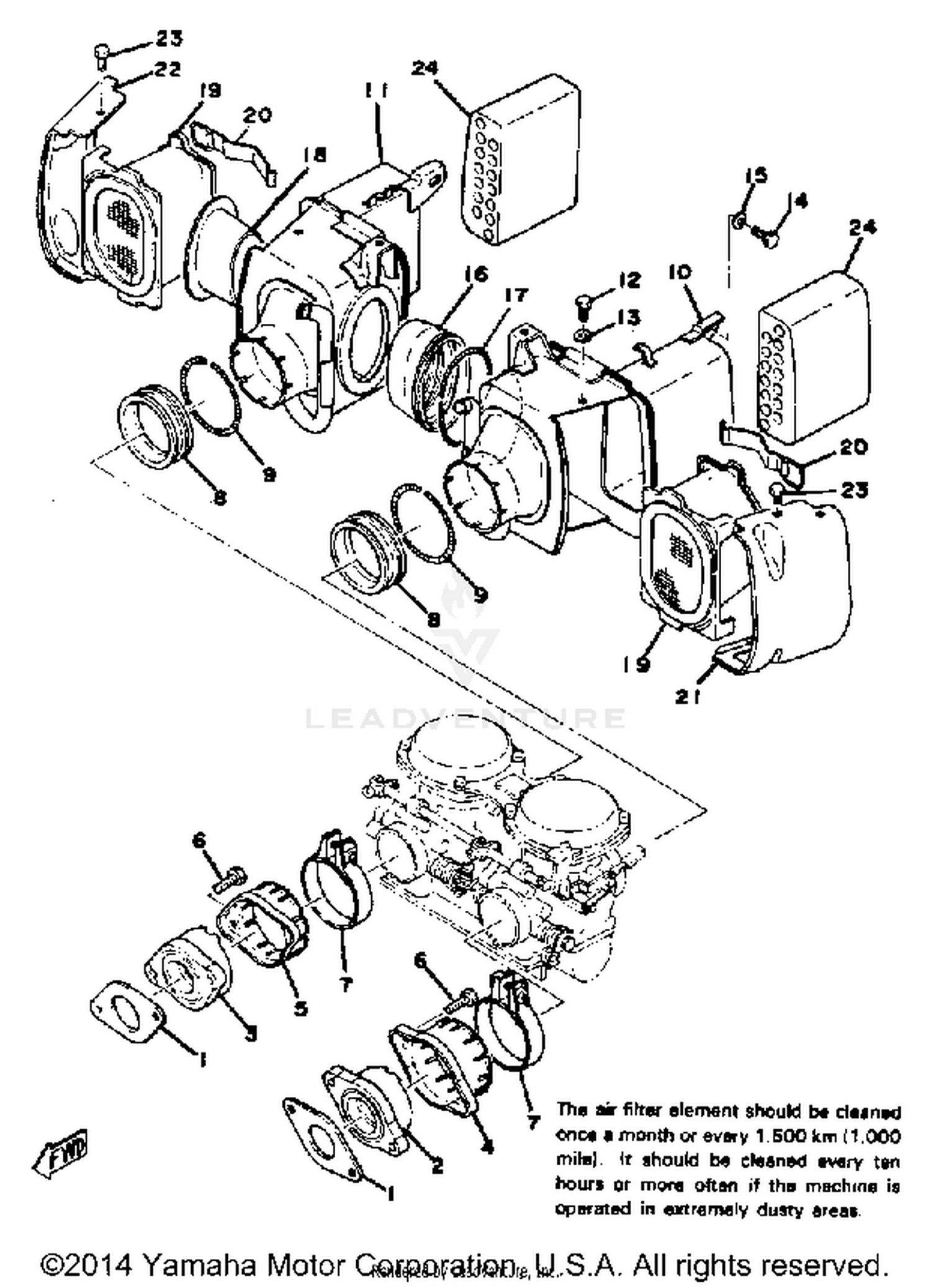

Intake Xs650c Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET,MANIFOLD
256-13556-01-00
Superseded by 256-13556-11-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
MANIFOLD, INTAKE
447-13555-01-00
|
$91.99 | ||
|
Unavailable |
|||
|
#3
JOINT, CARBURETOR
447-13565-01-00
|
$100.99 | ||
|
Unavailable |
|||
|
#4
COVER, CARB.JOINT
447-13564-00-00
|
$19.54 | ||
|
Unavailable |
|||
|
#5
COVER, CARB.JOINT
447-13584-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#6
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE CLAMP ASSY
90460-58015-00
Superseded by 90450-58002-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
JOINT, AIR CLNR 1
341-14453-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#9
SPRING, TENSION (256-14487-00)
90506-06006-00
|
$2.65 | ||
|
Unavailable |
|||
|
#10
CASE, AIR CLEANER 1
584-14411-00-00
|
$50.93 | ||
|
Unavailable |
|||
|
#11
CASE, AIR CLEANER 2
584-14421-00-00
|
$32.01 | ||
|
Unavailable |
|||
|
#12
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
JOINT, AIR CLNR 2
447-14463-01-00
|
$39.99 | ||
|
Unavailable |
|||
|
#17
SPRING, TENSION
90506-06095-00
Superseded by 90506-06261-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
JOINT
447-14454-00-00
|
$8.88 | ||
|
Unavailable |
|||
|
#19
ELEMENT, AIR CLEANER
533-14451-00-00
Superseded by 533-14451-01-00
|
$30.99 | ||
|
Unavailable |
|||
|
#20
PLATE, ELEMENT FTNG
533-14468-02-00
|
$11.99 | ||
|
Unavailable |
|||
|
#21
CAP, CLEANER CASE 1
447-14412-01-00
|
$6.26 | ||
|
Unavailable |
|||
|
#22
CAP, CLEANER CASE 2
447-14422-01-00
|
$25.99 | ||
|
Unavailable |
|||
|
#23
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
SILENCER, INTAKE 2
533-14441-00-00
|
$24.99 | ||
|
Unavailable |
|||
