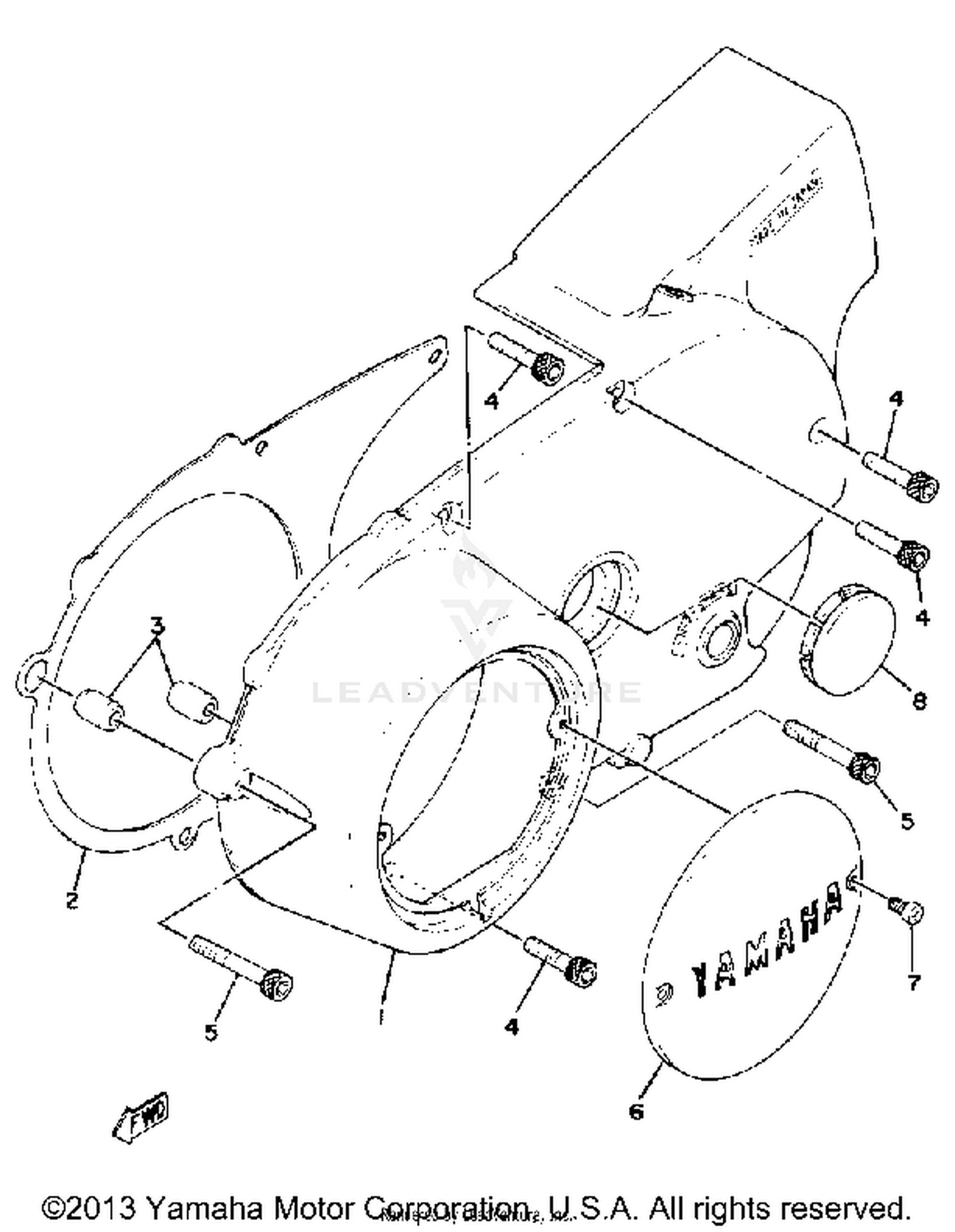

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSEMBLY
306-15100-03-00
|
$402.99 | ||
|
Unavailable |
|||
|
#
COVER, CRANKCASE L
584-15411-00-00
|
$184.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#
GASKET,CRCS CVR 2
306-15461-00-00
Superseded by 306-15461-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Unavailable |
|||
|
#3
PIN, DOWEL
93605-12069-00
|
$2.60 | ||
|
Unavailable |
|||
|
#4
BOLT, STUD
90116-08196-00
Superseded by 90116-08371-00
|
$7.49 | ||
|
Unavailable |
|||
|
#
BOLT, HEXAGON SOCKET HEAD
91311-06025-00
Superseded by 91314-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT, HEXAGON SOCKET HEAD
91311-06040-00
Superseded by 91314-06040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, STUD
90116-08064-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
COVER, GENERATOR R
256-15425-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#6
BOLT, STUD
90116-08232-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, STUD
90116-08199-00
|
$2.05 | ||
|
Unavailable |
|||
|
#8
BOLT, STUD (306-15192-00)
90116-08047-00
|
$4.80 | ||
|
Unavailable |
|||
|
#
COVER, CAP
1J7-15417-02-00
|
$8.49 | ||
|
Unavailable |
|||
|
#9
BOLT, STUD
90116-08066-00
|
$4.80 | ||
|
Unavailable |
|||
|
#10
BOLT,STUD
90116-08055-00
Superseded by 90116-08393-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, OIL SEALING
256-15395-00-00
|
$3.50 | ||
|
Unavailable |
|||
|
#12
BOLT
97013-08075-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (661)
97313-08055-00
Superseded by 97013-08055-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT (97321-08090)
97023-08090-00
|
$3.40 | ||
|
Unavailable |
|||
|
#15
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL
93603-14026-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Unavailable |
|||
|
#19
NUT, CROWN
90176-08019-00
|
$10.49 | ||
|
Unavailable |
|||
|
#20
GASKET
90430-08143-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG, OIL LEVEL
256-15362-02-00
|
$12.49 | ||
|
Unavailable |
|||
|
#22
GASKET
90430-29114-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLUG, DRAIN
256-15351-00-00
|
$16.02 | ||
|
Unavailable |
|||
|
#24
GASKET, DRAIN
256-15353-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
