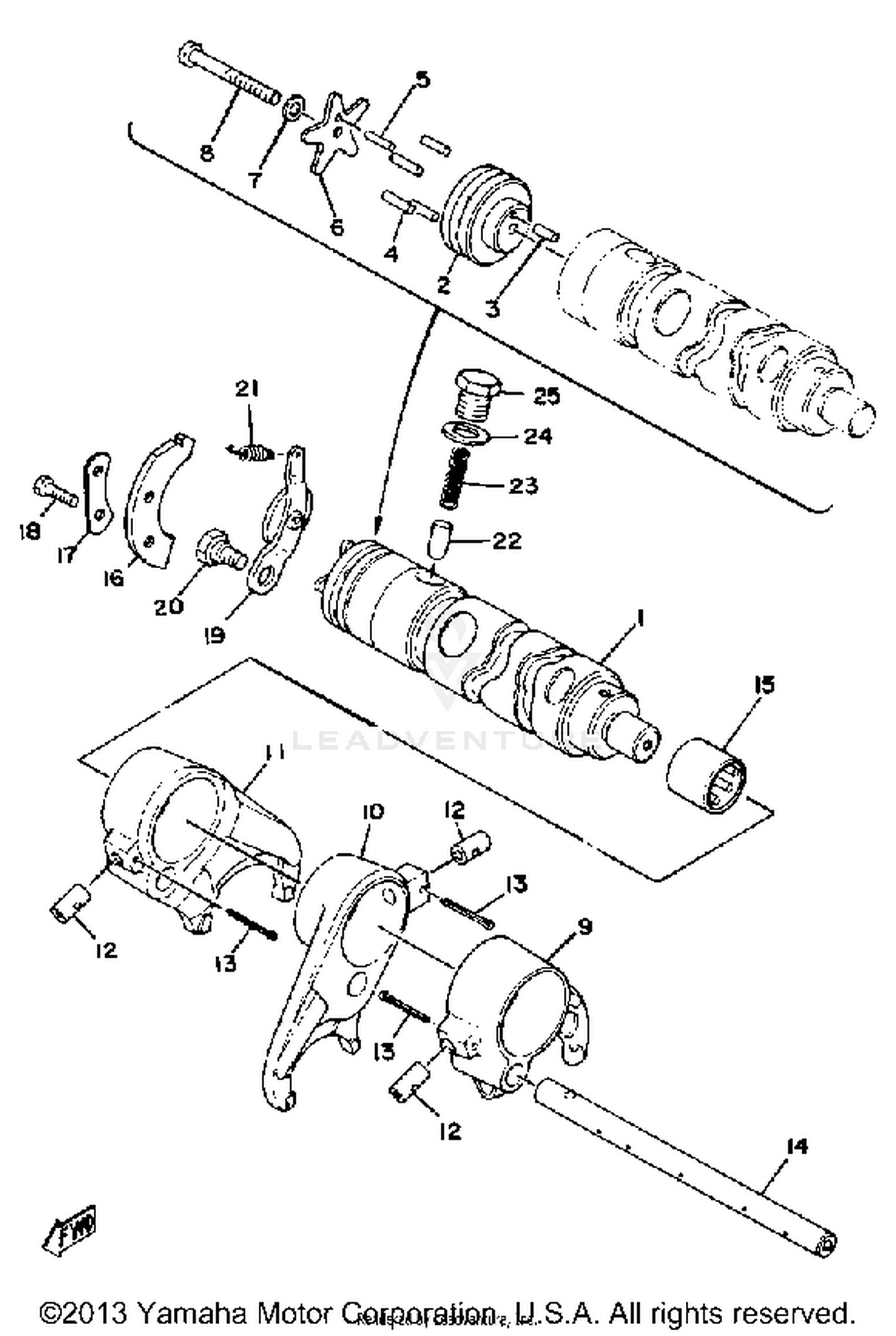

Shift Cam Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT CAM ASSEMBLY
306-18540-00-00
|
$252.99 | ||
|
Unavailable |
|||
|
#2
CAM, SHIFT 2
306-18546-00-00
|
$16.10 | ||
|
Unavailable |
|||
|
#3
PIN, DOWEL
93604-10011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
93604-14012-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, DOWEL
93603-14026-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, SIDE 1
168-18561-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#7
WASHER, INTERNAL TOOTH
92990-05300-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW,PAN HEAD
98501-05046-00
Superseded by 98580-05545-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
FORK, SHIFT 1
256-18511-00-00
|
$89.99 | ||
|
Unavailable |
|||
|
#10
FORK, SHIFT 2
256-18512-00-00
|
$87.99 | ||
|
Unavailable |
|||
|
#11
FORK, SHIFT 3
256-18513-00-00
|
$83.99 | ||
|
Unavailable |
|||
|
#12
PIN, SPEC''L SHAPE
90249-08122-00
|
$3.30 | ||
|
Unavailable |
|||
|
#13
PIN. COTTER
91401-25030-00
Superseded by 91490-25030-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAR, SHIF FRK GDE 1
256-18531-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#15
UNAVAILABLE IN PRICE BOOK
93320-21501-00
|
|||
|
Unavailable |
|||
|
#16
PLATE, STOPPER 2
256-18562-00-00
|
$10.18 | ||
|
Unavailable |
|||
|
#17
PLATE, LOCK SCREW
256-18565-00-00
|
$2.60 | ||
|
Unavailable |
|||
|
#18
BOLT
90101-06091-00
|
$3.70 | ||
|
Unavailable |
|||
|
#19
STOPPER LEVER ASSEMBLY
341-18140-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#20
BOLT
90109-06181-00
|
$5.49 | ||
|
Unavailable |
|||
|
#21
SPRING, TENSION
90506-10022-00
|
$7.99 | ||
|
Unavailable |
|||
|
#22
STOPPER, CAM
137-18547-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#23
SPRING, COMPRESSION
90501-10068-00
|
$2.80 | ||
|
Unavailable |
|||
|
#24
GASKET
90430-16047-00
|
$7.99 | ||
|
Unavailable |
|||
|
#25
BOLT
90109-16392-00
|
$6.49 | ||
|
Unavailable |
|||
