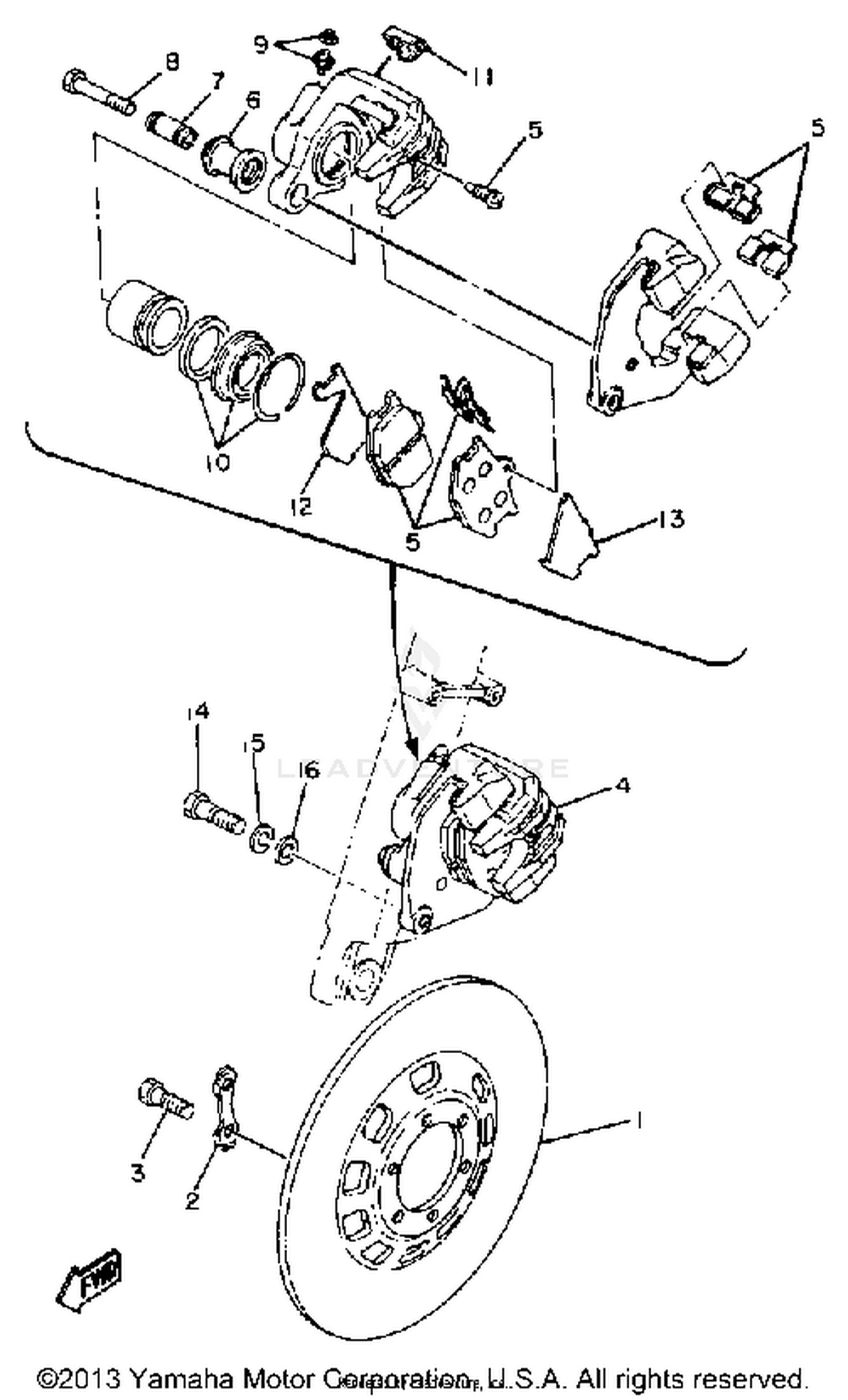

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE
1J3-25831-00-00
|
$274.99 | ||
|
Unavailable |
|||
|
#2
WASHER, LOCK
3H5-25834-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#3
BOLT
90101-08477-00
Superseded by 90101-08312-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CALIPER ASSEMBLY RH
3H5-25810-02-00
|
$258.99 | ||
|
Unavailable |
|||
|
#5
BRAKE PAD KIT,FRNT
4K0-W0045-01-00
Superseded by 4K0-W0045-02-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT, CALIPER
1J3-25917-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SLEEVE, CALIPER
1J3-25838-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#8
BOLT, WASHER BASED
90105-08145-00
|
$8.99 | ||
|
Unavailable |
|||
|
#9
BLEED SCREW KIT
1J3-W0048-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CALIPER SEAL KIT
1J3-W0047-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, INDICATOR
1J3-25845-01-00
|
$7.99 | ||
|
Unavailable |
|||
|
#12
SHIM, CALIPER
3H5-25827-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#13
SHIM, CALIPER
3H5-25828-00-00
|
$10.41 | ||
|
Unavailable |
|||
|
#14
BOLT, WASHER BASED
90101-10308-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLAIN
92990-10200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
