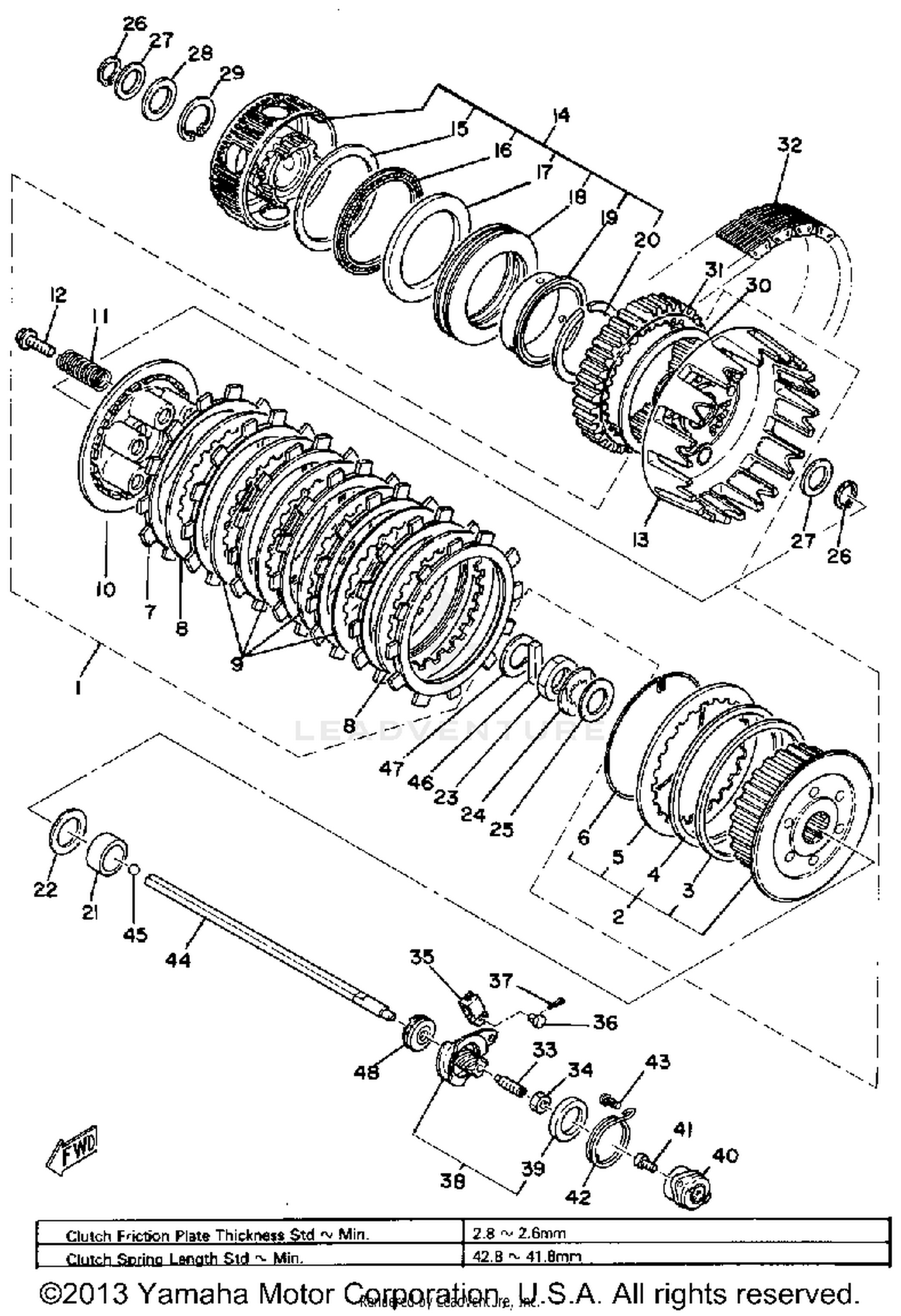

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH ASSEMBLY
3J2-16301-01-00
|
$205.99 | ||
|
Unavailable |
|||
|
#2
CLUTCH BOSS ASSEMBLY
1T5-16370-00-00
|
$135.99 | ||
|
Unavailable |
|||
|
#3
PLATE, SEAT
1J7-16384-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, CLUTCH BOSS
1J7-16383-01-00
|
$41.99 | ||
|
Unavailable |
|||
|
#5
PLATE, CLUTCH 2
4H7-16325-00-00
Superseded by 168-16325-10-00
|
$13.99 | ||
|
Unavailable |
|||
|
#6
RING, CLUTCH BOSS
1J7-16385-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, FRICTION
5Y1-16321-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, CLUTCH 2
4H7-16325-00-00
Superseded by 168-16325-10-00
|
$13.99 | ||
|
Unavailable |
|||
|
#9
PLATE, CLUTCH 1
3J2-16324-00-00
Superseded by 3J2-16324-10-00
|
$10.49 | ||
|
Unavailable |
|||
|
#10
PLATE, PRESSURE 1
1J7-16351-00-00
|
$65.99 | ||
|
Unavailable |
|||
|
#11
SPRING, COMPRESSION
90501-23142-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, WITH WASHER
90159-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLUTCH HOUSING ASSEMBLY
1J7-16310-03-00
|
$164.99 | ||
|
Unavailable |
|||
|
#14
CLUTCH DAMPER ASSEMBLY
3J2-16306-00-00
|
$217.99 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90201-76604-00
|
$1.98 | ||
|
Unavailable |
|||
|
#16
BEARING, FLAT #40
93340-27601-00
|
$8.88 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
90201-69603-00
|
$12.96 | ||
|
Unavailable |
|||
|
#18
SPRING, DAMPER
1J7-16318-00-00
|
$25.60 | ||
|
Unavailable |
|||
|
#19
COLLAR
90387-64672-00
|
$15.99 | ||
|
Unavailable |
|||
|
#20
CIRCLIP, OUTER
93440-64047-00
|
$5.49 | ||
|
Unavailable |
|||
|
#21
SPACER
90560-25160-00
|
$1.98 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-25291-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, HEXAGON
90170-24203-00
|
$5.49 | ||
|
Unavailable |
|||
|
#24
WASHER, LOCK
90215-21130-00
|
$2.87 | ||
|
Unavailable |
|||
|
#25
WASHER, CONICAL SPR
90208-25021-00
|
$5.49 | ||
|
Unavailable |
|||
|
#26
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-21599-00
|
$3.78 | ||
|
Unavailable |
|||
|
#28
SHIM
2F3-16391-00-00
|
$5.20 | ||
|
Unavailable |
|||
|
#29
CIRCLIP, OUTER
93440-31068-00
|
$4.10 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
90201-99693-00
|
$6.33 | ||
|
Unavailable |
|||
|
#
WASHER, PLATE
90201-99692-00
|
$4.15 | ||
|
Unavailable |
|||
|
#31
GEAR, PRI DRIVEN
3J2-16151-00-00
|
$101.99 | ||
|
Unavailable |
|||
|
#32
CHAIN, PRIMARY
3J2-16139-00-00
|
$267.99 | ||
|
Unavailable |
|||
|
#33
BOLT, SET
90113-08021-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, SPECIAL SHAPE
90179-08179-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
JOINT
214-16389-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN, CLEVIS
90240-06005-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIN, COTTER
91401-10015-00
|
$2.35 | ||
|
Unavailable |
|||
|
#38
PUSH LEVER ASSEMBLY
1J7-16340-01-00
|
$20.84 | ||
|
Unavailable |
|||
|
#39
SEAL, DUST
214-16347-01-00
|
$6.49 | ||
|
Unavailable |
|||
|
#40
BALL SCRW HSNG ASSEMBLY (256-16
1J7-16304-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#41
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
SPRING, TORSION
90508-18313-00
|
$2.27 | ||
|
Unavailable |
|||
|
#43
HOOK, SPRING
132-16346-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
ROD, PUSH 2
1J7-16357-01-00
|
$22.03 | ||
|
Unavailable |
|||
|
#45
BALL
93505-16006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
ROD, PUSH 1
1J7-16356-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#47
WASHER, PLATE
90201-22625-00
|
$3.10 | ||
|
Unavailable |
|||
|
#48
OIL SEAL, SD-TYPE
93102-08205-00
|
$26.99 | ||
|
Unavailable |
|||
