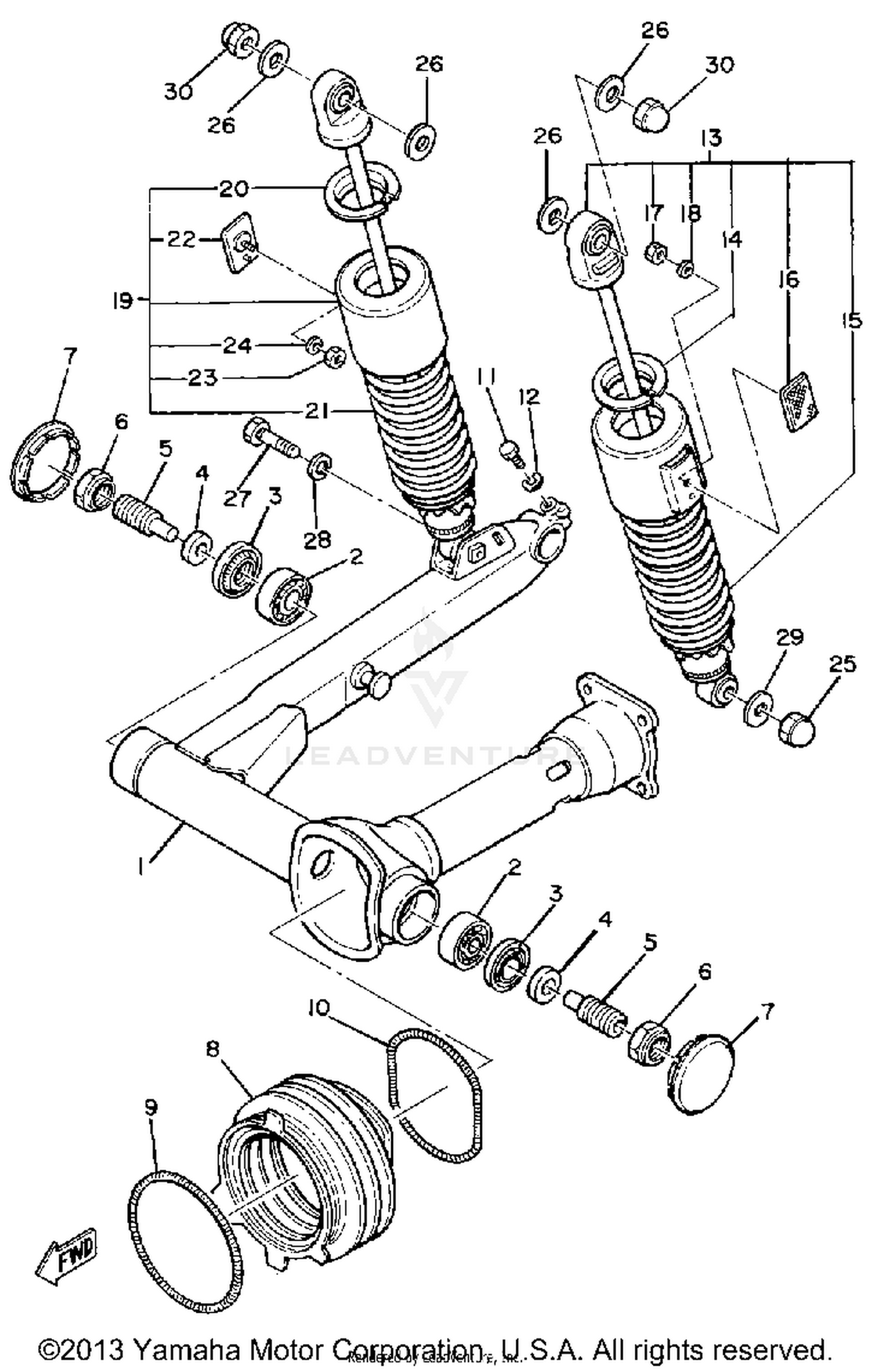

Rear Arm Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
3J3-22110-01-33
|
$161.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93332-00010-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93102-25017-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-17543-00
Superseded by 90387-17011-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, PIVOT
1J7-22141-00-00
Superseded by 15B-22141-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
1J7-22143-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER
2H7-2219X-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT, RUBBER
2H7-22189-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, TENSION
90506-07136-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, TENSION
90506-07135-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
97303-08035-00
Superseded by 97013-08035-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92906-08100-00
Superseded by 92907-08100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHK/ABS ASSEMBLY, REAR
3J2-22210-00-00
|
$133.99 | ||
|
Unavailable |
|||
|
#14
SEAT, SPRING UPPER
341-22213-20-00
|
$6.44 | ||
|
Unavailable |
|||
|
#15
SPRING
3J2-22212-00-00
|
$54.98 | ||
|
Unavailable |
|||
|
#16
REAR REFLECTOR ASSY
3G1-85130-01-00
Superseded by 4KM-85130-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHK/ABS ASSEMBLY, REAR
3J2-22210-10-00
|
$133.99 | ||
|
Unavailable |
|||
|
#20
SEAT, SPRING UPPER
341-22213-20-00
|
$6.44 | ||
|
Unavailable |
|||
|
#21
SPRING
3J2-22212-00-00
|
$54.98 | ||
|
Unavailable |
|||
|
#
SPRING
3J2-22212-A0-00
|
$62.59 | ||
|
Unavailable |
|||
|
#22
REAR REFLECTOR ASSY
3G1-85130-01-00
Superseded by 4KM-85130-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#23
NUT
95380-05600-00
|
$7.49 | ||
|
Unavailable |
|||
|
#24
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Unavailable |
|||
|
#25
NUT, CROWN
90176-10013-00
Superseded by 90176-10073-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-100A1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
90106-10030-00
Superseded by 90106-10052-00
|
$8.49 | ||
|
Unavailable |
|||
|
#28
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-10437-00
Superseded by 90201-105R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, CAP
90176-10009-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
