1980 Yamaha XS850S SPECIAL Oil Pump OEM Parts

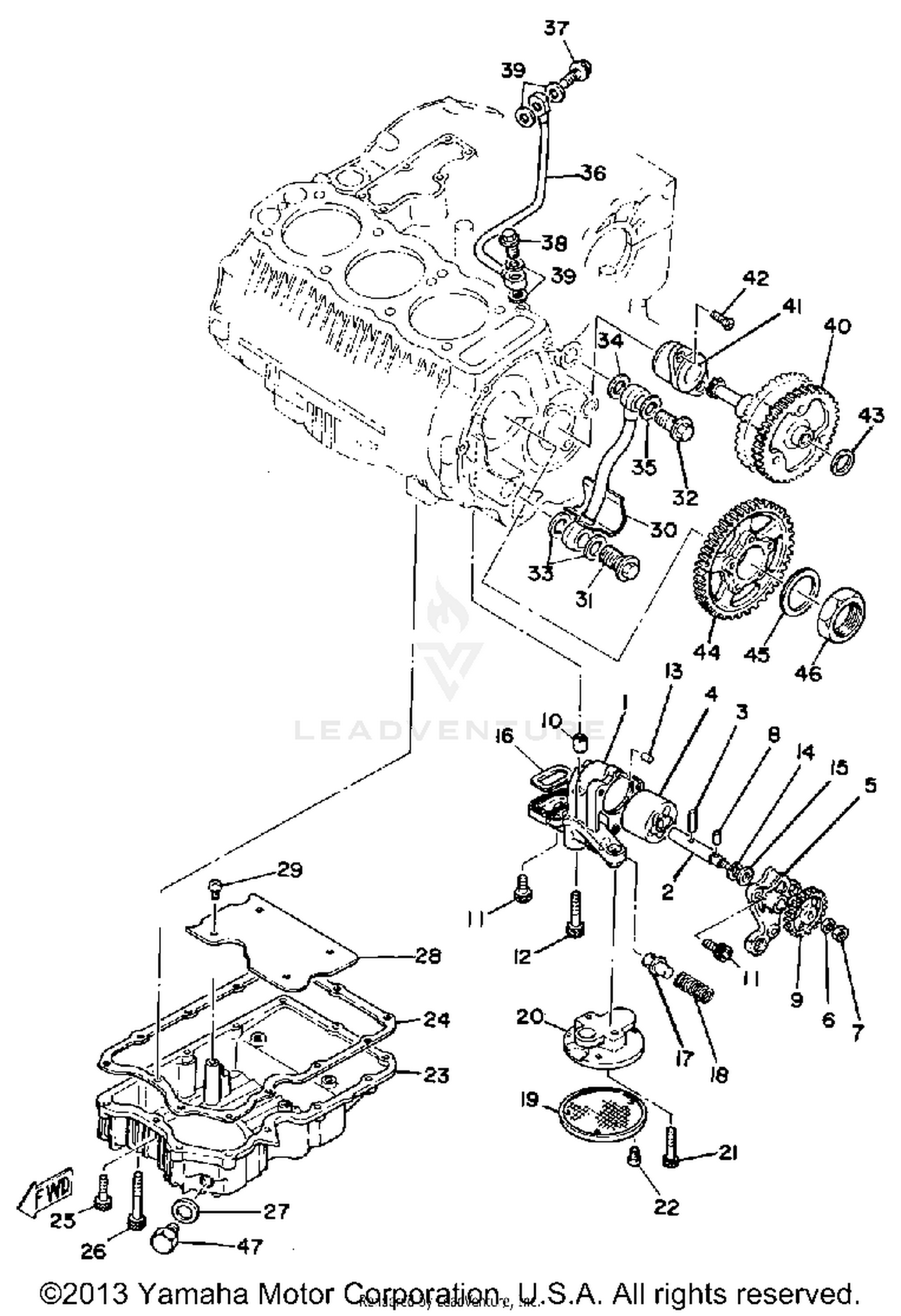

Oil Pump Diagram

Item	MSRP	Qty
#1 HOUSING, ROTOR 2F3-13336-02-00	$88.10
Unavailable
#2 COVER, PUMP 2F3-13306-00-00	$39.99
Unavailable
#3 PIN, DOWEL 93603-17070-00	$3.90
Available to order. Add to View Price
#4 ROTOR ASSEMBLY 1 2F3-13310-01-00	$24.50
Unavailable
#5 COVER, PUMP 2F3-13316-01-00	$12.52
Unavailable
#6 WASHER, SPRING 92995-06100-00	$3.20
Available to order. Add to View Price
#7 NUT, HEXAGON 95380-06600-00	$4.45
Available to order. Add to View Price
#8 PIN, DOWEL 93603-12007-00	$2.40
Available to order. Add to View Price
#9 GEAR, PUMP DRIVEN 2 1J7-13326-02-00	$25.04
Unavailable
#10 PIN, DOWEL 99510-12016-00 Superseded by 99530-12016-00	$4.70
Available to order. Add to View Price
#11 BOLT 91316-06020-00 Superseded by 91317-06020-00	$6.49
Available to order. Add to View Price
#12 BOLT 91316-06040-00 Superseded by 91317-06040-00	$3.55
Available to order. Add to View Price
#13 PIN, DOWEL 93603-07073-00	$8.49
Available to order. Add to View Price
#14 CIRCLIP 93440-11024-00	$6.49
Available to order. Add to View Price
#15 WASHER, PLATE 90201-11154-00	$1.05
Unavailable
#16 SEAL 1J7-13338-00-00	$15.49
Unavailable
#17 PLUNGER, RELIEF 1J7-13483-00-00	$20.99
Unavailable
#18 SPRING, RELIEF 1J7-13484-00-00	$1.50
Unavailable
#19 STRAINER, OIL 2F3-13411-00-00	$12.49
Unavailable
#20 HOUSING, STRAINER 1J7-13412-01-00	$13.98
Unavailable
#21 BOLT 91316-06035-00 Superseded by 91317-06035-00	$3.50
Available to order. Add to View Price
#22 SCREW, PAN HEAD 98580-05012-00	$7.49
Available to order. Add to View Price
#23 COVER, STRAINER 1J7-13417-01-00	$94.20
Unavailable
#24 GASKET,STRNR COVER 1J7-13414-00-00 Superseded by 1J7-13414-10-00	$16.49
Unavailable
#25 BOLT 91316-06025-00 Superseded by 91317-06025-00	$5.49
Available to order. Add to View Price
#26 BOLT 91316-06055-00 Superseded by 91317-06055-00	$3.95
Available to order. Add to View Price
#27 GASKET 214-11198-01-00	$3.05
Available to order. Add to View Price
#28 PLATE, BAFFLE LOWER 1J7-13337-01-00	$1.78
Unavailable
#29 SCREW, PAN HEAD 98580-06010-00	$7.49
Available to order. Add to View Price
#30 PIPE, DELIVERY 2 2F3-13171-00-00	$58.99
Unavailable
#31 BOLT, UNION 90401-18040-00	$2.52
Unavailable
#32 BOLT, UNION 90401-10054-00	$1.98
Unavailable
#33 GASKET 90430-18130-00	$7.49
Available to order. Add to View Price
#34 WASHER, PLATE 90201-10128-00	$4.55
Available to order. Add to View Price
#35 GASKET 90430-15129-00 Superseded by 90430-16048-00	$4.10
Unavailable
#36 PIPE, DELIVERY 1 2G2-13161-00-00	$38.99
Unavailable
#37 BOLT, UNION (371-13166-00) 90401-10013-00	$7.99
Unavailable
#38 BOLT, UNION 90401-10004-00 Superseded by 90401-10084-00	$13.99
Available to order. Add to View Price
#39 GASKET 90430-10171-00	$3.00
Available to order. Add to View Price
#40 GEAR, PUMP DRIVEN 1J7-13325-01-00	$85.99
Unavailable
#41 HOUSING 1J7-13313-00-00	$16.10
Unavailable
#42 SCREW, OVAL HEAD 98603-06018-00	$0.35
Unavailable
#43 WASHER, PLATE (T=1.0) 90201-20276-00	$7.49
Available to order. Add to View Price
#44 GEAR, PUMP DRIVE 1J7-13324-00-00	$35.92
Unavailable
#45 WASHER, PLATE 90201-26600-00	$3.20
Unavailable
#46 NUT, HEXAGON 90170-26191-00	$2.72
Unavailable
#47 PLUG, STRAIGHT SCREW 3VD-13455-00-00 Superseded by 90340-14132-00	$3.75
Available to order. Add to View Price
