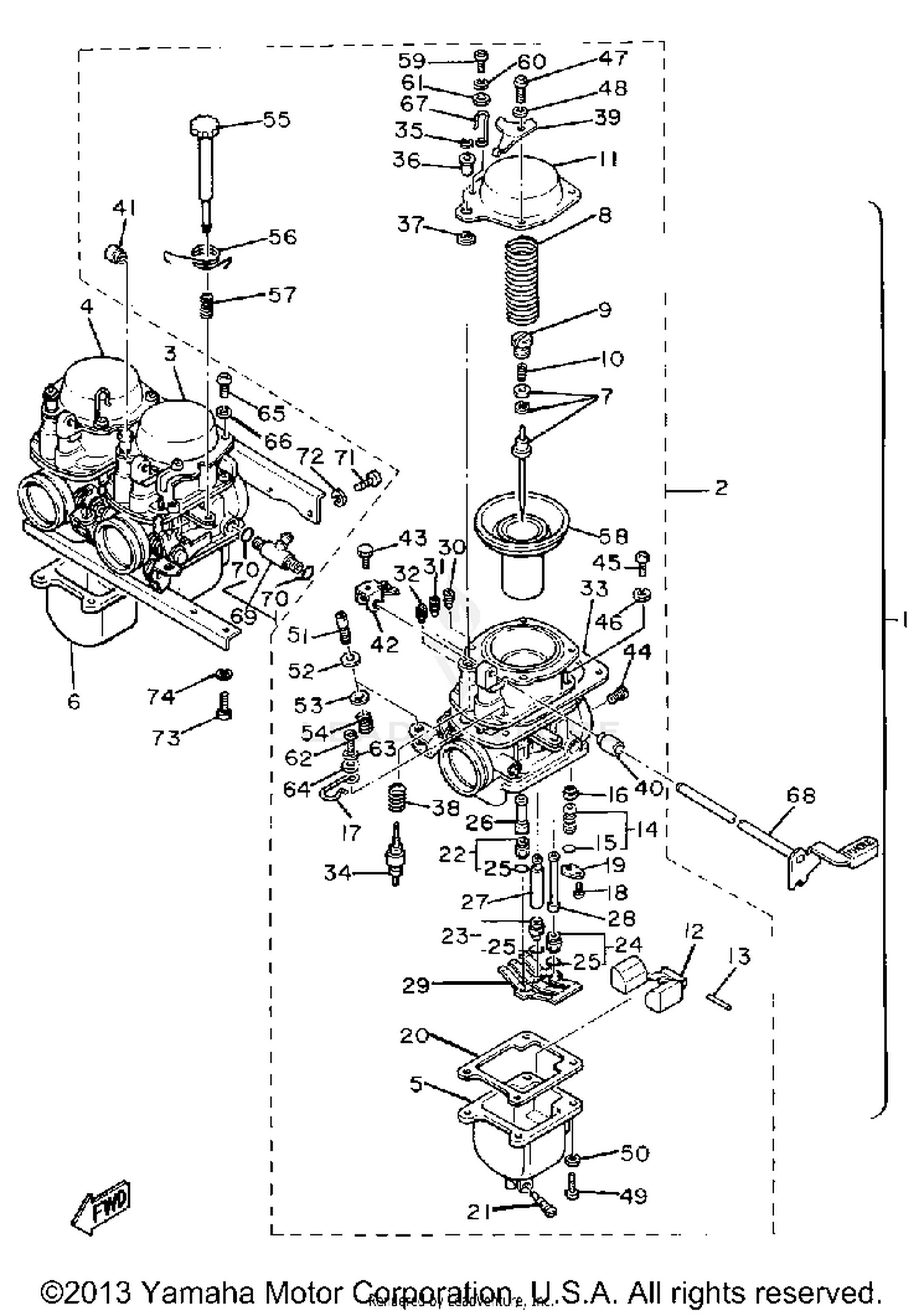

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
UNAVAILABLE IN PRICE BOOK
3J2-14900-00-
|
|||
|
Unavailable |
|||
|
#2
CARBURETOR ASSEMBLY 1
3J2-14901-00-00
|
$233.99 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSEMBLY 2
3J2-14902-00-00
|
$233.99 | ||
|
Unavailable |
|||
|
#4
CARBURETOR ASSEMBLY 3
3J2-14903-00-00
|
$217.99 | ||
|
Unavailable |
|||
|
#5
BODY, FLOAT CHAMBER
3J2-14981-01-00
|
$54.99 | ||
|
Unavailable |
|||
|
#6
HOLDER
3J2-14982-01-00
|
$44.99 | ||
|
Unavailable |
|||
|
#7
JET, NEEDLE
3J3-W1418-01-00
|
$59.99 | ||
|
Unavailable |
|||
|
#8
SPRING, DIAPHRAGM
3J3-14933-00-00
|
$7.46 | ||
|
Unavailable |
|||
|
#9
SEAT, SPRING
4H7-14936-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#10
SPRING
3J3-14589-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#11
COVER, DIAPHRAGM
3J3-14958-00-00
|
$21.12 | ||
|
Unavailable |
|||
|
#12
FLOAT
3J3-14985-00-00
|
$31.04 | ||
|
Unavailable |
|||
|
#13
PIN, FLOAT
3J3-14186-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#14
NEEDLE VALVE ASSEMBLY
3J3-W1496-20-00
|
$155.99 | ||
|
Unavailable |
|||
|
#15
O-RING
3J3-14147-00-00
Superseded by 93210-07180-00
|
$3.40 | ||
|
Unavailable |
|||
|
#16
NET, FILTER
3J3-14994-00-00
|
$6.86 | ||
|
Unavailable |
|||
|
#17
CLIP
3J3-14937-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE
3J3-14146-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#20
GASKET,FLOAT CHMBR
3J3-14984-00-00
Superseded by 3J3-14984-01-00
|
$25.99 | ||
|
Unavailable |
|||
|
#21
PLUG, DRAIN
4X7-14191-01-00
|
$25.99 | ||
|
Unavailable |
|||
|
#22
JET, MAIN
3J3-W4943-42-00
|
$13.99 | ||
|
Unavailable |
|||
|
#23
JET, PILOT
3J3-W1448-40-00
|
$10.99 | ||
|
Unavailable |
|||
|
#24
JET, STARTER
3J3-W1461-40-00
|
$28.99 | ||
|
Unavailable |
|||
|
#25
O-RING
3J3-14561-00-00
|
$3.21 | ||
|
Unavailable |
|||
|
#26
NOZZLE, MAIN
3J3-14921-26-00
|
$14.84 | ||
|
Unavailable |
|||
|
#27
EMULSION TUBE, SLOW
3J3-14924-00-00
|
$9.08 | ||
|
Unavailable |
|||
|
#28
JET, NEEDLE
3J3-14947-15-00
|
$18.86 | ||
|
Unavailable |
|||
|
#29
WASHER
3J3-14956-00-00
|
$4.56 | ||
|
Unavailable |
|||
|
#30
JET, MAIN AIR
3J3-14928-10-00
|
$4.15 | ||
|
Unavailable |
|||
|
#31
JET, PILOT AIR
3J3-14949-31-00
|
$7.52 | ||
|
Unavailable |
|||
|
#32
NOZZLE, STARTER
3J3-14983-12-00
|
$5.86 | ||
|
Unavailable |
|||
|
#33
GASKET
3J3-14959-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#34
PLUNGER, STARTER
3J3-14171-00-00
|
$36.48 | ||
|
Unavailable |
|||
|
#35
WASHER
3J3-14955-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#36
CAP
3J3-14968-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#37
COVER, PLUNGER CAP
3J3-14173-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#38
SPRING, PLUNGER
3J3-14135-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#39
PIPE
3J3-14996-00-00
|
$4.56 | ||
|
Unavailable |
|||
|
#40
BUSH
3J3-14998-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#41
WASHER
3J3-14973-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#42
LEVER, STARTER
3J3-14905-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#43
SCREW
3J3-14991-01-00
|
$2.77 | ||
|
Unavailable |
|||
|
#44
ORIFICE, AIR VENT
3J3-14989-20-00
|
$4.56 | ||
|
Unavailable |
|||
|
#45
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#47
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#48
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Unavailable |
|||
|
#49
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Unavailable |
|||
|
#50
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Unavailable |
|||
|
#51
SCREW, THROTTLE
3J3-14922-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#52
WASHER
3J3-14951-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#53
WASHER
3J3-14952-00-00
|
$1.98 | ||
|
Unavailable |
|||
|
#54
SPRING, THRTL STOP
3J3-14133-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#55
SCREW, THROTTLE
3J3-14122-00-00
|
$17.38 | ||
|
Unavailable |
|||
|
#56
SPRING
3J3-14938-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#57
SPRING, THRTL STOP
3J3-14934-00-00
|
$6.26 | ||
|
Unavailable |
|||
|
#58
DIAPHRAGM ASSEMBLY
3J3-14940-00-00
|
$71.32 | ||
|
Unavailable |
|||
|
#59
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Unavailable |
|||
|
#61
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#62
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Unavailable |
|||
|
#63
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Unavailable |
|||
|
#64
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Unavailable |
|||
|
#65
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Unavailable |
|||
|
#66
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Unavailable |
|||
|
#67
CLIP, PIPE
3J3-14139-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#68
SHAFT, STARTER LVR
3J3-14978-00-00
|
$22.86 | ||
|
Unavailable |
|||
|
#69
PIPE, STARTER CON
3J3-14988-01-00
|
$23.99 | ||
|
Unavailable |
|||
|
#70
O-RING
3J3-14147-00-00
Superseded by 93210-07180-00
|
$3.40 | ||
|
Unavailable |
|||
|
#71
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Unavailable |
|||
|
#72
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Unavailable |
|||
|
#73
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#74
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
