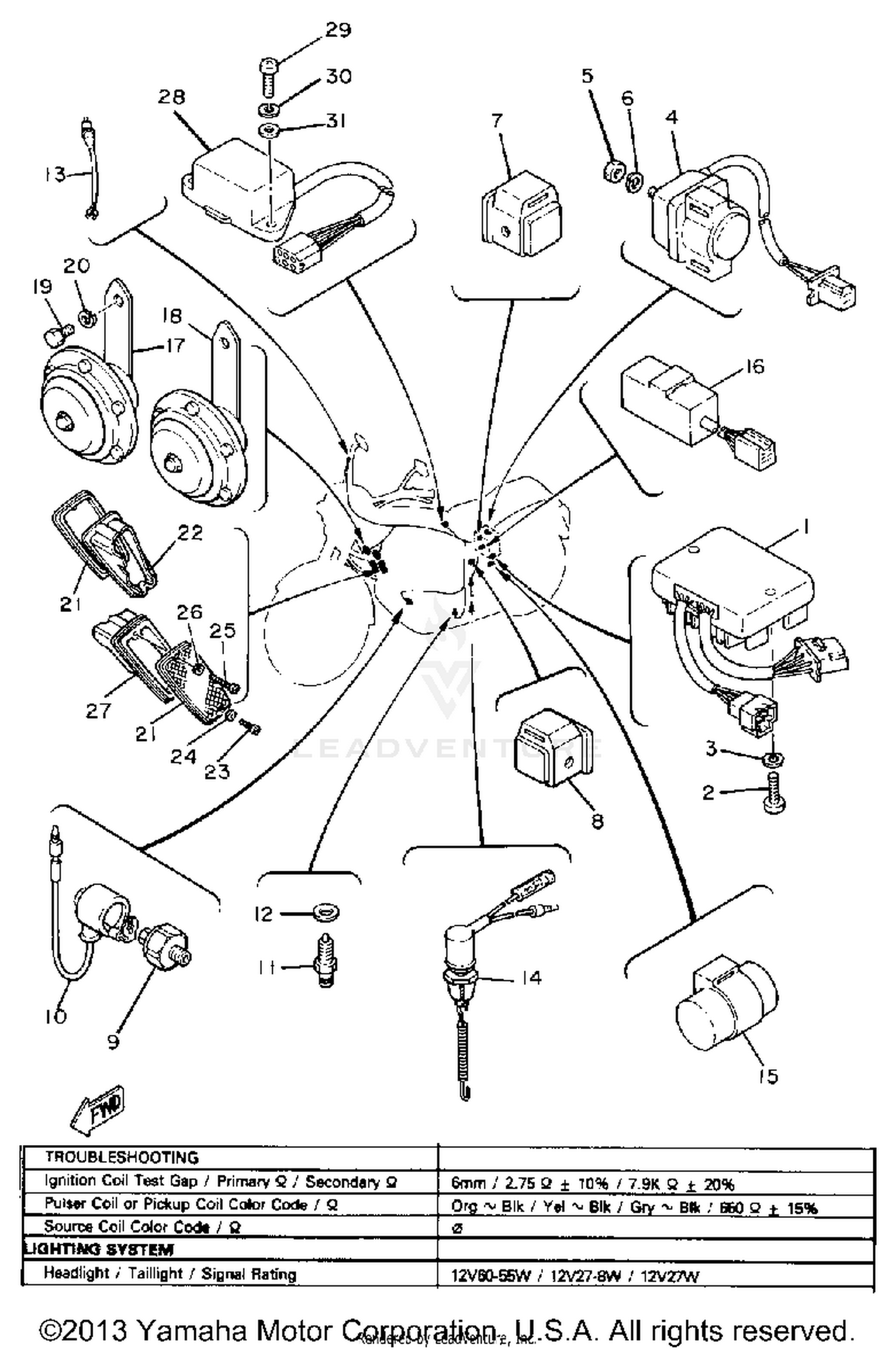

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECTIFIER/REG ASSEMBLY
1T4-81960-A0-00
|
$288.99 | ||
|
Unavailable |
|||
|
#2
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
STARTER RELAY ASSY (MS5D-611)
3AY-81940-00-00
Superseded by 4KD-81940-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#
STARTER SWITCH ASSEMBLY
1J7-81940-10-00
|
$125.99 | ||
|
Unavailable |
|||
|
#5
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#7
RELAY ASSY (3H5-00)
3H5-81950-00-00
|
$118.99 | ||
|
Unavailable |
|||
|
#8
RELAY ASSY
12R-81950-01-00
Superseded by 12R-81950-02-00
|
$67.99 | ||
|
Unavailable |
|||
|
#9
OIL PRESSURE SWITCH ASSEMBLY
341-82504-02-00
|
$141.99 | ||
|
Unavailable |
|||
|
#10
WIRE, LEAD
1J7-82507-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#11
NEUTRAL SWITCH ASSY
2H7-82540-00-00
Superseded by 4GY-82540-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
90430-10171-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
FRONT STOP SWITCH ASSY
1A0-83980-30-00
Superseded by 26H-83980-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
FRONT STOP SWITCH ASSY
1A0-83980-30-00
Superseded by 26H-83980-00-00
|
$71.99 | ||
|
Unavailable |
|||
|
#15
FLASHER RELAY ASSEMBLY
3J3-83350-70-00
|
$143.99 | ||
|
Unavailable |
|||
|
#16
FLASHER CANCELING UNIT
1A0-83395-03-00
|
$128.99 | ||
|
Unavailable |
|||
|
#17
HORN
4R2-83371-20-00
|
$58.19 | ||
|
Unavailable |
|||
|
#18
HORN
4R2-83371-30-00
|
$58.19 | ||
|
Unavailable |
|||
|
#19
BOLT
97026-08012-00
Superseded by 97027-08012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92906-08100-00
Superseded by 92907-08100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
FRONT REFLECTOR ASSEMBLY
3G1-85110-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#22
BASE, REFLECTOR
3J3-85127-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN HEAD
98506-04018-00
Superseded by 98507-04018-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN HEAD
849-84724-00-00
Superseded by 98580-04540-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Unavailable |
|||
|
#27
BASE, REFLECTOR
3J3-85127-50-00
|
$4.15 | ||
|
Unavailable |
|||
|
#28
RESERVE LIGHTING UNIT ASSEMBLY
2F9-84308-00-00
|
$112.99 | ||
|
Unavailable |
|||
|
#29
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#31
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
