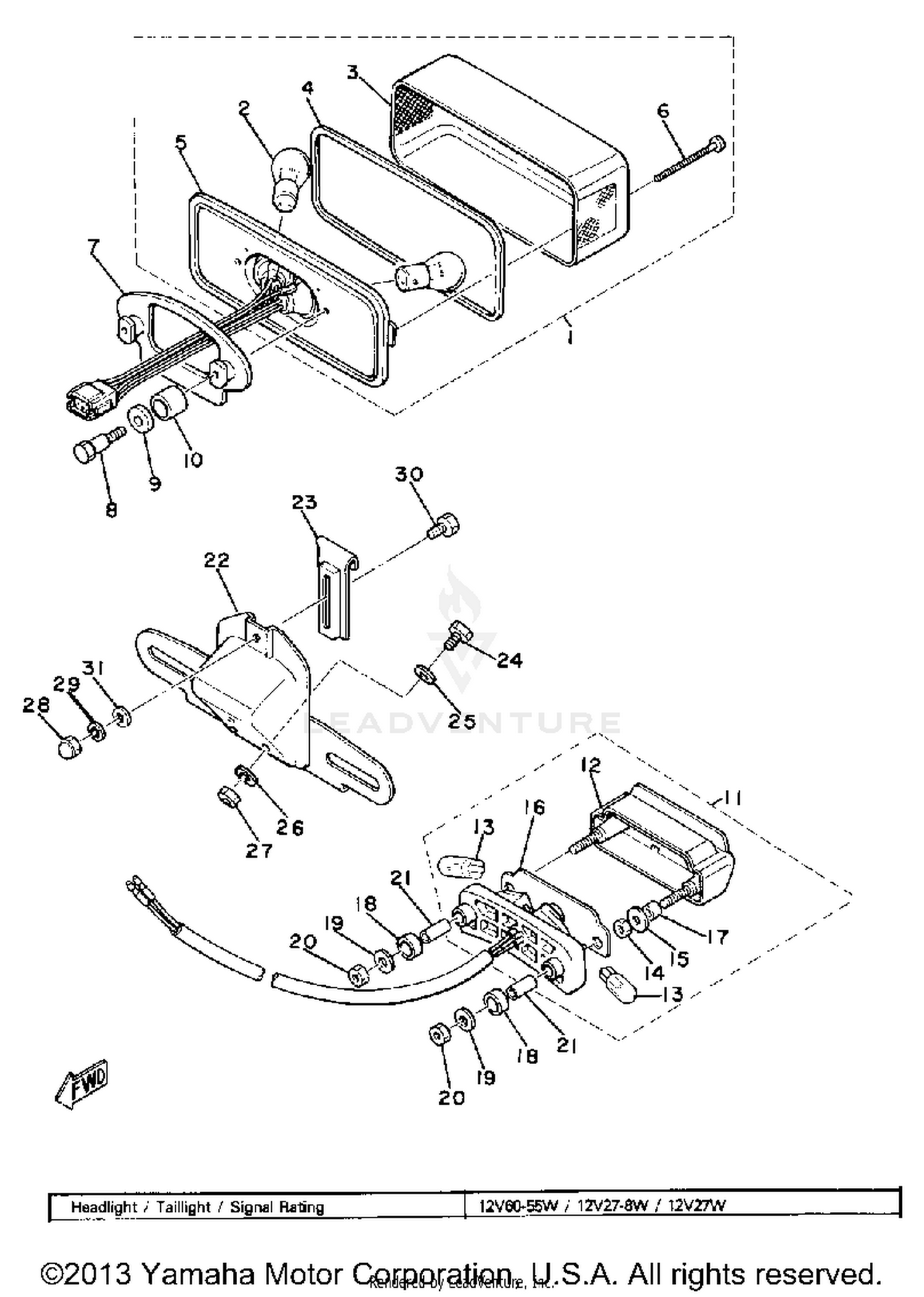

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSY
3G1-84710-60-00
|
$59.99 | ||
|
Unavailable |
|||
|
#2
BULB (12V-27/8W)
256-84714-61-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS, TAILLIGHT
1A8-84721-61-00
|
$31.99 | ||
|
Unavailable |
|||
|
#4
GASKET, TAIL LENS
1A0-84723-60-00
|
$12.49 | ||
|
Unavailable |
|||
|
#5
TAILLIGHT UNIT ASSY
3G1-84710-60-00
|
$59.99 | ||
|
Unavailable |
|||
|
#6
SCREW, LENS FITTING
98580-04055-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAT, BASE
3G1-84712-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#8
BOLT
90109-06548-00
|
$3.16 | ||
|
Unavailable |
|||
|
#9
WASHER, SPECIAL
2H7-84754-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAT, BASE
3G1-84712-60-00
|
$8.02 | ||
|
Unavailable |
|||
|
#11
LICENSE LITE ASSEMBLY
3J2-84745-61-00
|
$47.99 | ||
|
Unavailable |
|||
|
#12
BODY, LICENCE LIGHT
3J2-84749-01-00
|
$19.99 | ||
|
Unavailable |
|||
|
#13
BULB, METER 12V 3.8W
3F9-84744-00-XX
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
95311-05700-00
Superseded by 95317-05700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPECIAL
3J2-84754-00-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
3J2-84772-00-00
|
$2.17 | ||
|
Unavailable |
|||
|
#17
COLLAR, LCNSE BRKT
3J2-84757-00-00
|
$2.87 | ||
|
Unavailable |
|||
|
#18
GROMMET
3J2-84759-00-00
|
$2.85 | ||
|
Unavailable |
|||
|
#19
WASHER, PLATE
90201-05033-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
3J2-84557-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#22
BRACKET, LICENSE
3J2-84751-00-93
|
$33.99 | ||
|
Unavailable |
|||
|
#23
STOPPER, NO PLATE
3J2-84750-00-93
|
$3.55 | ||
|
Unavailable |
|||
|
#24
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, CROWN
95303-06800-00
Superseded by 95380-06800-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#30
BOLT
97013-06012-00
|
$4.85 | ||
|
Unavailable |
|||
|
#31
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
