1993 Yamaha XT 350 Fuel Tank OEM Parts

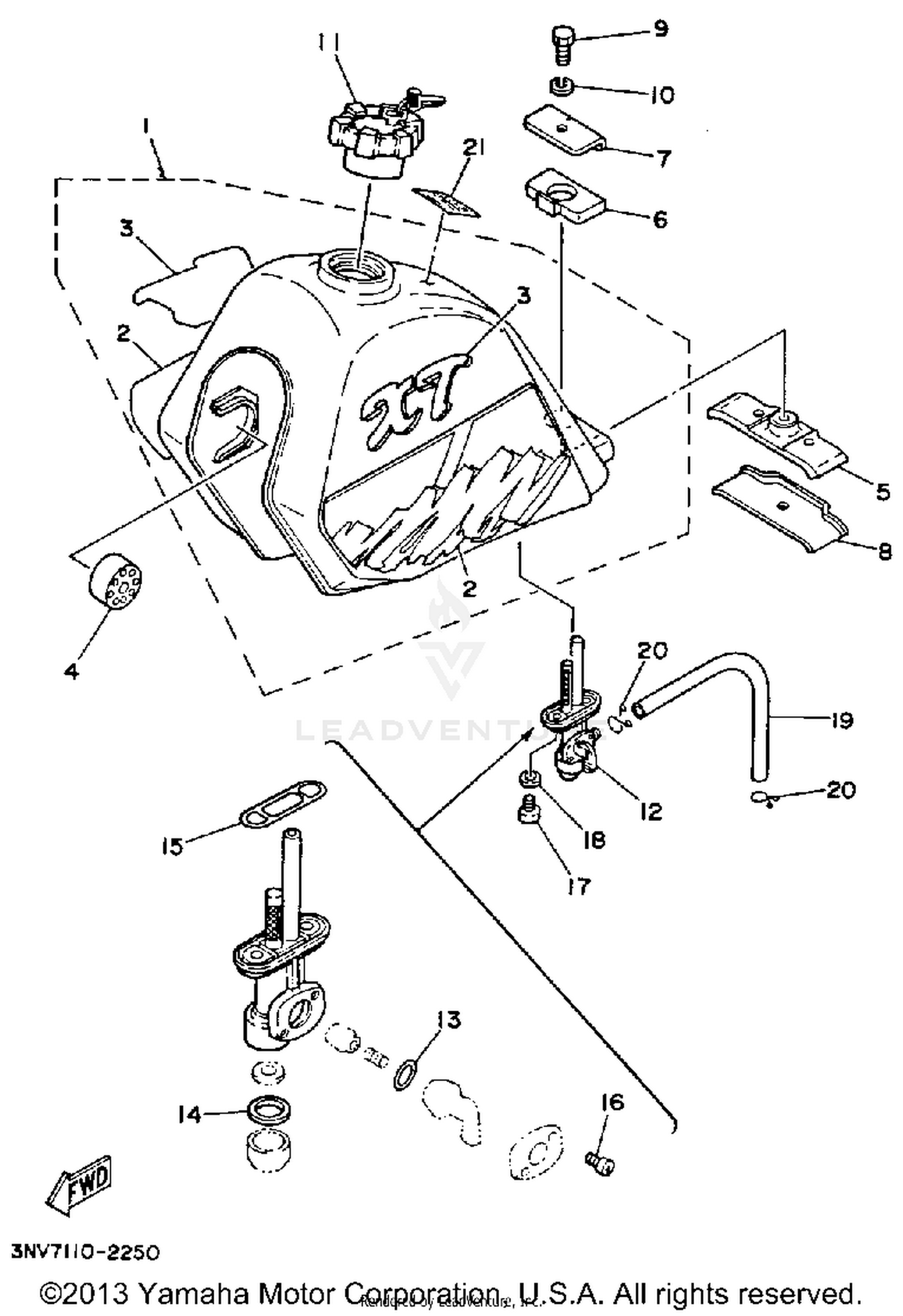

Fuel Tank Diagram

Item	MSRP	Qty
#1 FUEL TANK COMP. 30X-24110-01-W6	$737.99
Unavailable
#2 GRAPHIC SET 3NV-24240-00-00	$118.99
Unavailable
#3 EMBLEM 1 3NV-24231-00-00	$69.99
Unavailable
#4 DAMPER, LOCATING 1 4L0-24181-00-00	$9.49
Available to order. Add to View Price
#5 DAMPER, LOCATING 2 30X-24182-01-00	$19.49
Available to order. Add to View Price
#6 DAMPER, LOCATING 3 30X-24183-01-00	$7.49
Available to order. Add to View Price
#7 WASHER, SPECIAL 30X-24186-01-00	$7.49
Available to order. Add to View Price
#8 WASHER, SPECIAL 30X-24187-00-00	$23.99
Available to order. Add to View Price
#9 BOLT 97013-06012-00	$4.85
Available to order. Add to View Price
#10 WASHER, SPRING 92995-06100-00	$3.20
Available to order. Add to View Price
#11 CAP ASSY 48Y-24602-00-00	$179.99
Available to order. Add to View Price
#12 FUEL COCK ASSY 1 15A-24500-03-00 Superseded by 23F-24500-20-00	$39.99
Available to order. Add to View Price
#13 SEAL, COCK 4X8-24534-00-00	$12.99
Available to order. Add to View Price
#14 GASKET 4X8-24565-00-00 Superseded by 4X8-24565-10-00	$6.49
Available to order. Add to View Price
#15 O-RING 4X8-24512-00-00	$8.49
Available to order. Add to View Price
#16 SCREW, LEVER FITTING 4X8-24535-00-00	$3.75
Available to order. Add to View Price
#17 SCREW 90149-06011-00	$5.49
Available to order. Add to View Price
#18 WASHER, PLATE 90202-05187-00	$1.30
Available to order. Add to View Price
#19 HOSE (L110) 90445-10008-00 Superseded by 90445-10752-00	$4.70
Available to order. Add to View Price
#20 CLIP 90467-09006-00 Superseded by 90467-090A2-00	$4.15
Available to order. Add to View Price
#21 LABEL, CAUTION 3MX-2118K-00-00	$7.49
Unavailable
