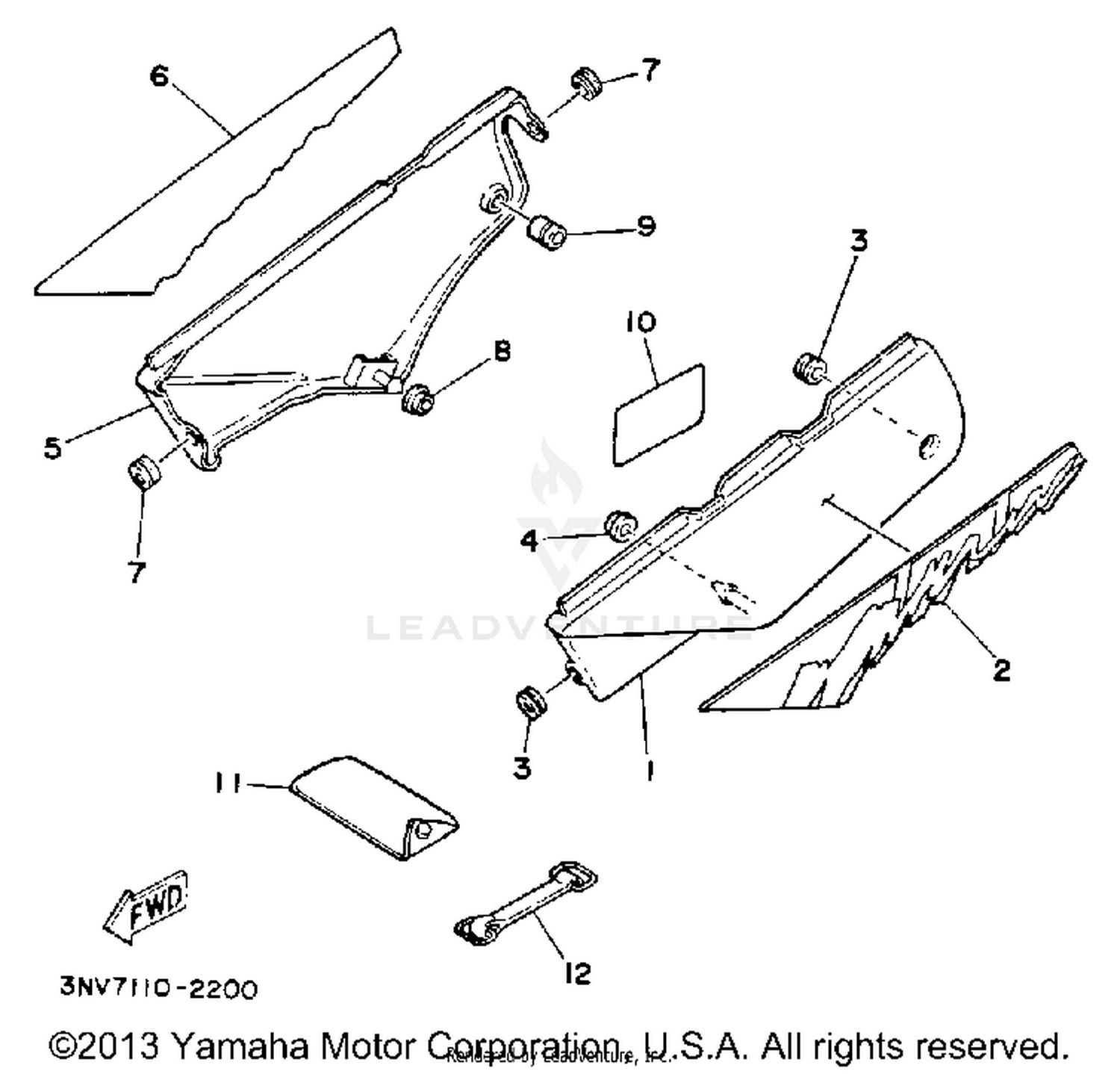

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
30X-21711-30-98
Superseded by 30X-21711-30-0X
|
$55.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC
3NV-2173E-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#3
GROMMET
90480-12053-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
90480-01401-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, SIDE 2
30X-21721-30-98
|
$67.99 | ||
|
Unavailable |
|||
|
#6
GRAPHIC
3NV-2173F-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#7
GROMMET
90480-12053-00
|
$6.49 | ||
|
Unavailable |
|||
|
#8
GROMMET
90480-01401-00
|
$7.49 | ||
|
Unavailable |
|||
|
#9
DAMPER, LOCATING 1
22W-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, EPA U49
3NV-2179V-40-00
|
$30.99 | ||
|
Unavailable |
|||
|
#
PLATE, EPA CAL 2
3NV-2179R-40-00
|
$23.99 | ||
|
Unavailable |
|||
|
#11
TOOL KIT (48Y-28100-00-00)
48Y-28100-00-00
Superseded by 1LN-W2810-01-00
|
$130.99 | ||
|
Unavailable |
|||
|
#12
BAND, BATTERY
116-82131-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
