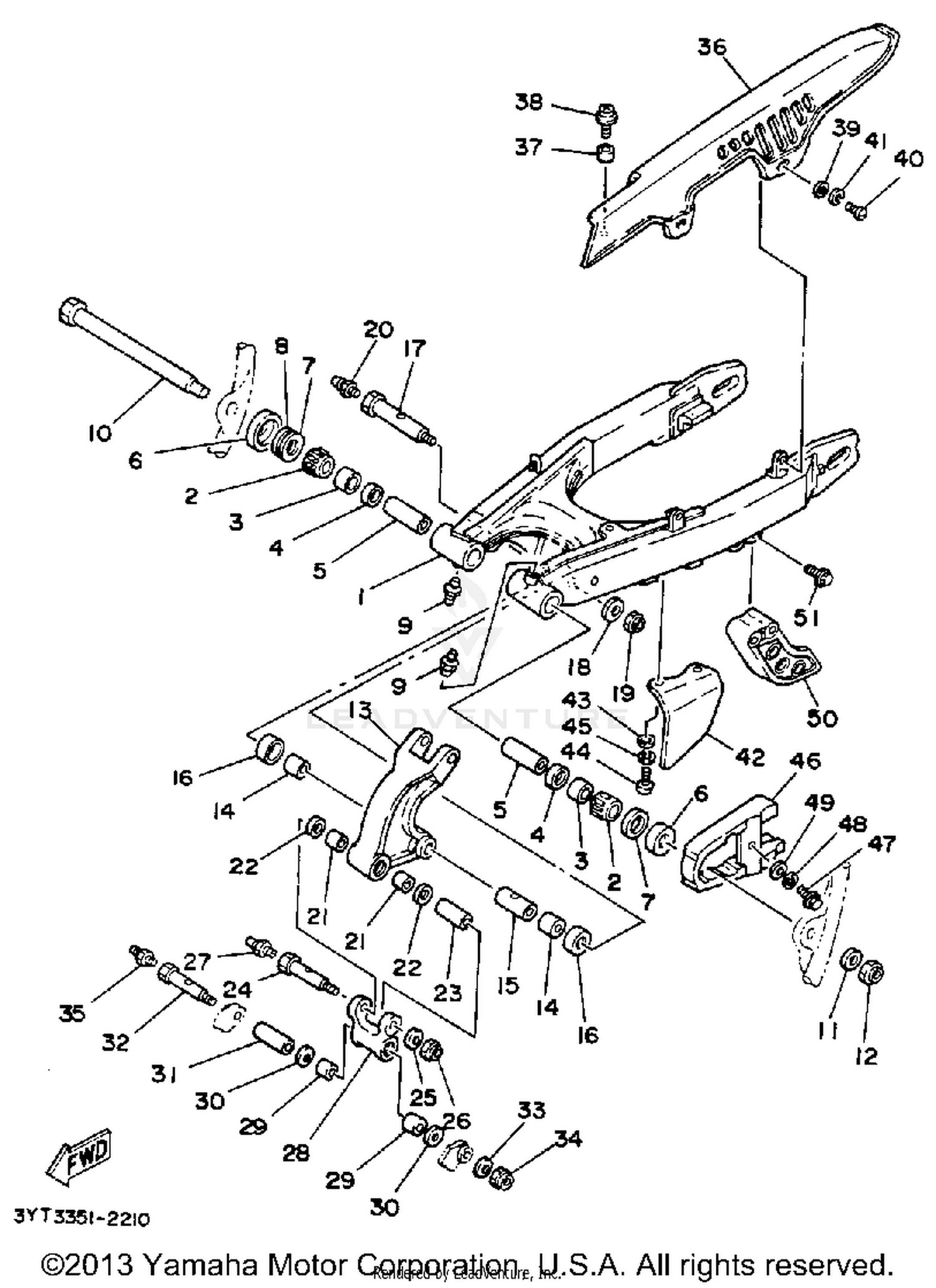

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
55V-22110-00-P0
|
$914.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93317-32231-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH, SOLID
90380-22111-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL (DC 22-28-8)
93106-22019-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH 2
3Y1-22124-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, THRUST 1
322-22128-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-243A2-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIM (0.3T)
240-22127-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT, PIVOT
30X-22141-00-00
|
$78.99 | ||
|
Unavailable |
|||
|
#11
WASHER, PLATE
90201-14218-00
Superseded by 90201-15797-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SELF-LOCKING
90185-14070-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
ARM, RELAY
30X-2217A-00-00
|
$221.99 | ||
|
Unavailable |
|||
|
#14
BUSH
90386-20120-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-140J9-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, THRUST 1
30X-22128-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#17
BOLT
90109-121A1-00
|
$19.49 | ||
|
Unavailable |
|||
|
#18
WASHER, PLATE
90201-120A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, SELF-LOCKING
90185-12119-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Unavailable |
|||
|
#21
BUSH
90386-18115-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL
93109-18020-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-126J8-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
90109-10752-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-100E9-00
Superseded by 90201-10M05-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, SELF-LOCKING
90185-10120-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NIPPLE, GREASE
93700-06009-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
ROD, CONNECTING 1
30X-2217F-01-00
|
$57.99 | ||
|
Unavailable |
|||
|
#29
BUSH
90386-18115-00
|
$15.99 | ||
|
Unavailable |
|||
|
#30
OIL SEAL
93109-18020-00
|
$12.49 | ||
|
Unavailable |
|||
|
#31
COLLAR
90387-121L6-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
90109-10752-00
|
$22.99 | ||
|
Unavailable |
|||
|
#33
WASHER, PLATE
90201-100E9-00
Superseded by 90201-10M05-00
|
$5.49 | ||
|
Unavailable |
|||
|
#34
NUT, SELF-LOCKING
90185-10120-00
|
$5.49 | ||
|
Unavailable |
|||
|
#35
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Unavailable |
|||
|
#36
CASE, CHAIN
38M-22311-00-00
|
$78.99 | ||
|
Unavailable |
|||
|
#37
COLLAR
90387-064E8-00
Superseded by 90387-06704-00
|
$2.95 | ||
|
Unavailable |
|||
|
#38
SCREW, WITH WASHER
90159-06042-00
Superseded by 90159-06013-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER
90209-06223-00
Superseded by 90209-06187-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW,PAN HEAD
98506-06016-00
Superseded by 98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#42
CASE, CHAIN 2
30X-22312-01-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER
90209-06223-00
Superseded by 90209-06187-00
|
$7.49 | ||
|
Unavailable |
|||
|
#44
SCREW,PAN
98516-06012-00
Superseded by 98517-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#46
SEAL, GUARD
42U-22151-00-00
Superseded by 42U-22151-01-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT
97026-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#48
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#49
WASHER
90209-06223-00
Superseded by 90209-06187-00
|
$7.49 | ||
|
Unavailable |
|||
|
#50
GUARD, CHAIN
30X-22153-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
BOLT, FLANGE
95811-06050-00
Superseded by 95817-06050-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
