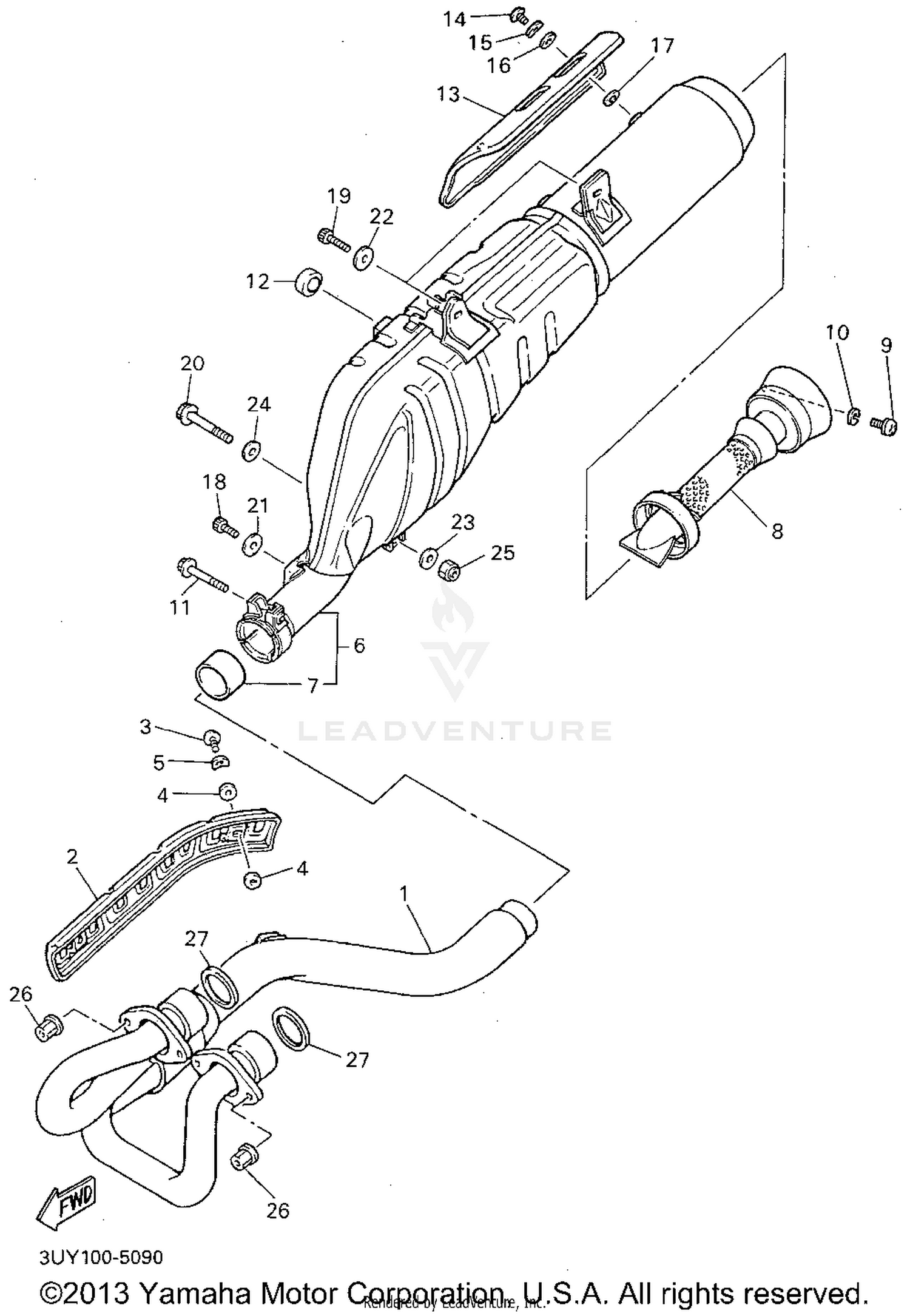

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST 1
34K-14611-01-00
|
$297.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTOR, EXHAUST PIPE
54G-14628-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, TAPPING
90164-06017-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PROTECTOR
4BD-14766-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, WAVE
90206-06090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
MUFFLER 1
3UY-14711-01-00
|
$631.99 | ||
|
Unavailable |
|||
|
#7
GASKET, SILENCER
3YF-14755-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, OUTLET
34K-14752-00-00
|
$141.99 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98507-06010-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95027-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, LOCATING 1
22W-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PROTECTOR, MUFFLER 2
3TB-14728-00-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, BIND
98980-06010-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, WAVE
90206-06090-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
WASHER, PROTECTOR
4BD-14766-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#17
WASHER, PROTECTOR
4BD-14766-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#18
BOLT
90109-085E2-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, WASHER BASED
90105-10186-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
90105-10232-00
Superseded by 90105-10169-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-08326-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-102J5-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-101J1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-10144-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, U FLANGE
95617-10200-00
Superseded by 95607-10200-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
90179-06500-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET, EXHAUST PIPE
3YF-14613-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
