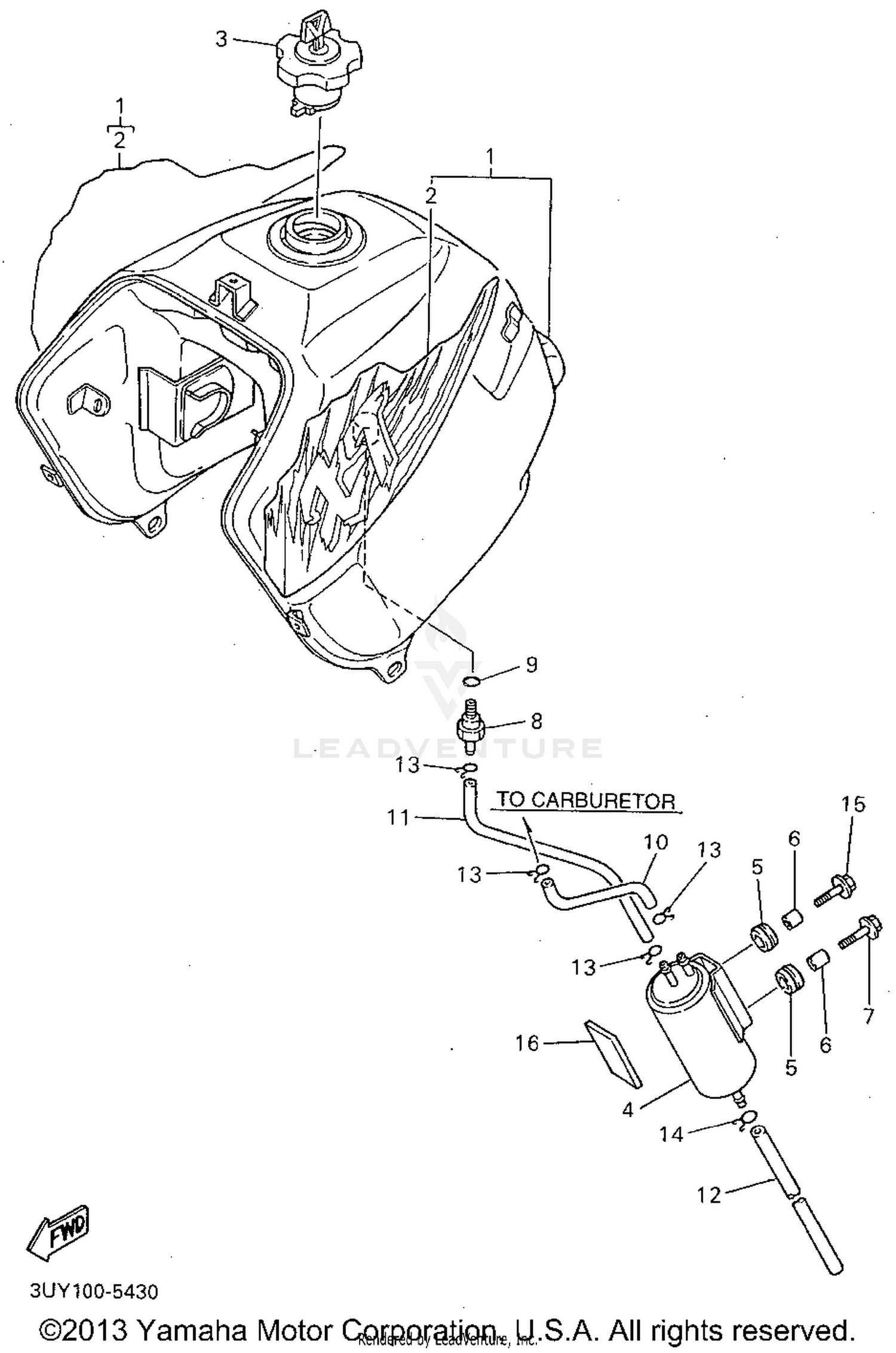

Fuel Tank California Model Only Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
3UY-24110-00-07
|
$711.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
3TB-24240-B0-00
|
$168.99 | ||
|
Unavailable |
|||
|
#3
CAP ASSY
51K-24602-01-00
Superseded by 51K-24602-10-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CANISTER ASSEMBLY
47M-24170-00-00
|
$228.99 | ||
|
Unavailable |
|||
|
#5
GROMMET
90480-12529-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-060G7-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, WITH WASHER
90119-06044-00
Superseded by 90119-06242-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROLL OVER VALVE ASSY
20K-24180-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-11453-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE
90445-102F4-00
|
$2.77 | ||
|
Unavailable |
|||
|
#11
HOSE
90445-10344-00
Superseded by 90445-10020-00
|
$8.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE, FLEXIBLE VINYL (91A-20070
91A21-07024-00
Superseded by 91A20-07039-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP
90467-11106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, WITH WASHER
90119-06118-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER
22F-2139X-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
