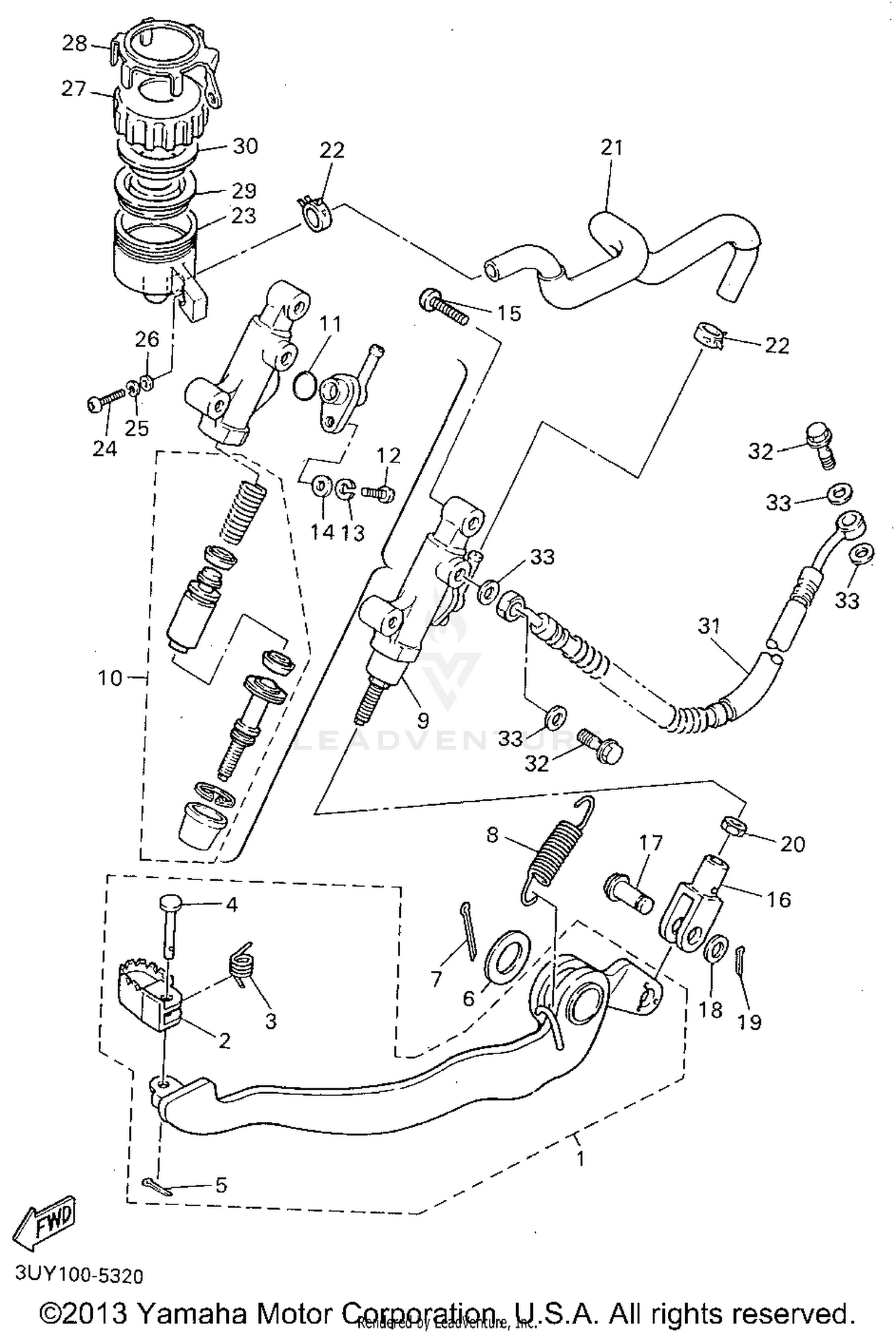

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
3TB-27200-02-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PEDAL, BRAKE
55V-27242-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TORSION
90508-14352-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
91701-06022-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-14215-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, COTTER
91401-30020-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, TENSION
90507-18055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
RR. MASTER CYLINDER ASSEMBLY.
3TB-2583V-00-00
|
$241.73 | ||
|
Unavailable |
|||
|
#10
CYLINDER KIT, MASTER
31A-W0042-50-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW,PANHEAD
98507-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92907-04100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
92907-04600-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, BUTTON HEAD
92017-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
JOINT
47X-27222-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, CLEVIS
90240-08013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
95307-08700-00
Superseded by 95317-08700-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE, RESERVOIR
3TB-25895-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#22
CLIP
90467-14057-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
TANK, RESERVOIR
47X-25894-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW,PAN HEAD
98507-06020-00
Superseded by 98517-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
CAP, RESERVOIR
2KF-25852-50-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
COVER, RESERVOIR TANK
3AJ-25888-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
DIAPHRAGM, RESERVOIR
360-25854-00-00
Superseded by 360-25854-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BUSH, DIAPHRAGM
2GU-25855-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOSE, BRAKE 2
3TB-25873-02-00
|
$97.15 | ||
|
Unavailable |
|||
|
#32
BOLT, UNION
90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
