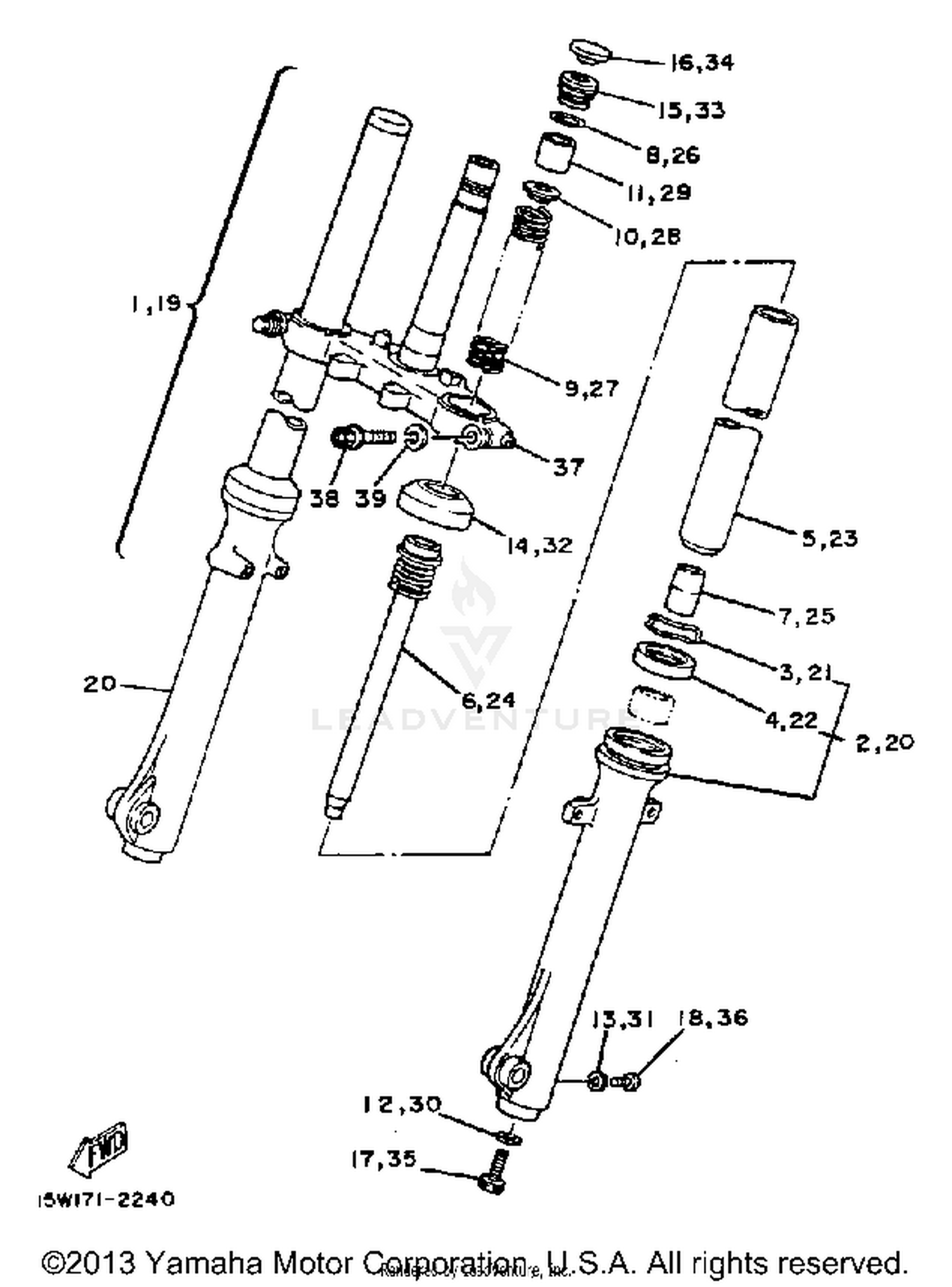

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY L
15E-23102-00-00
|
$189.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
15E-23126-00-38
|
$109.99 | ||
|
Unavailable |
|||
|
#3
CLIP, OIL SEAL
15E-23156-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#4
OIL SEAL
2K5-23145-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
INNER TUBE 1
15E-23110-00-00
|
$71.59 | ||
|
Unavailable |
|||
|
#6
CYLINDER, FRTFRK
15E-23170-00-00
|
$26.12 | ||
|
Unavailable |
|||
|
#7
SPINDLE, TAPER
2K5-23173-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
146-23114-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, FRONT FORK
15E-23141-00-00
|
$19.50 | ||
|
Unavailable |
|||
|
#10
SEAT, SPRING UPPER
256-23142-60-00
|
$21.99 | ||
|
Unavailable |
|||
|
#11
SPACER
15E-23118-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#12
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL, DUST
15E-23144-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#15
BOLT, CAP
1X0-23111-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, FRONT FORK
1X0-23168-00-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
FRONT FORK ASSEMBLY R
15E-23103-00-00
|
$223.99 | ||
|
Unavailable |
|||
|
#20
TUBE, OUTER 2
15E-23136-00-38
|
$109.99 | ||
|
Unavailable |
|||
|
#21
CLIP, OIL SEAL
15E-23156-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#22
OIL SEAL
2K5-23145-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#23
INNER TUBE 1
15E-23110-00-00
|
$71.59 | ||
|
Unavailable |
|||
|
#24
CYLINDER, FRTFRK
15E-23170-00-00
|
$26.12 | ||
|
Unavailable |
|||
|
#25
SPINDLE, TAPER
2K5-23173-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#26
GASKET
146-23114-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#27
SPRING, FRONT FORK
15E-23141-00-00
|
$19.50 | ||
|
Unavailable |
|||
|
#28
SEAT, SPRING UPPER
256-23142-60-00
|
$21.99 | ||
|
Unavailable |
|||
|
#29
SPACER
15E-23118-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#30
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Unavailable |
|||
|
#31
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#32
SEAL, DUST
15E-23144-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#33
BOLT, CAP
1X0-23111-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#34
CAP, FRONT FORK
1X0-23168-00-00
|
$4.65 | ||
|
Unavailable |
|||
|
#35
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#36
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Unavailable |
|||
|
#37
UNDER BRACKET
15E-23340-00-33
|
$111.99 | ||
|
Unavailable |
|||
|
#38
BOLT 1
15A-23346-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#39
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
