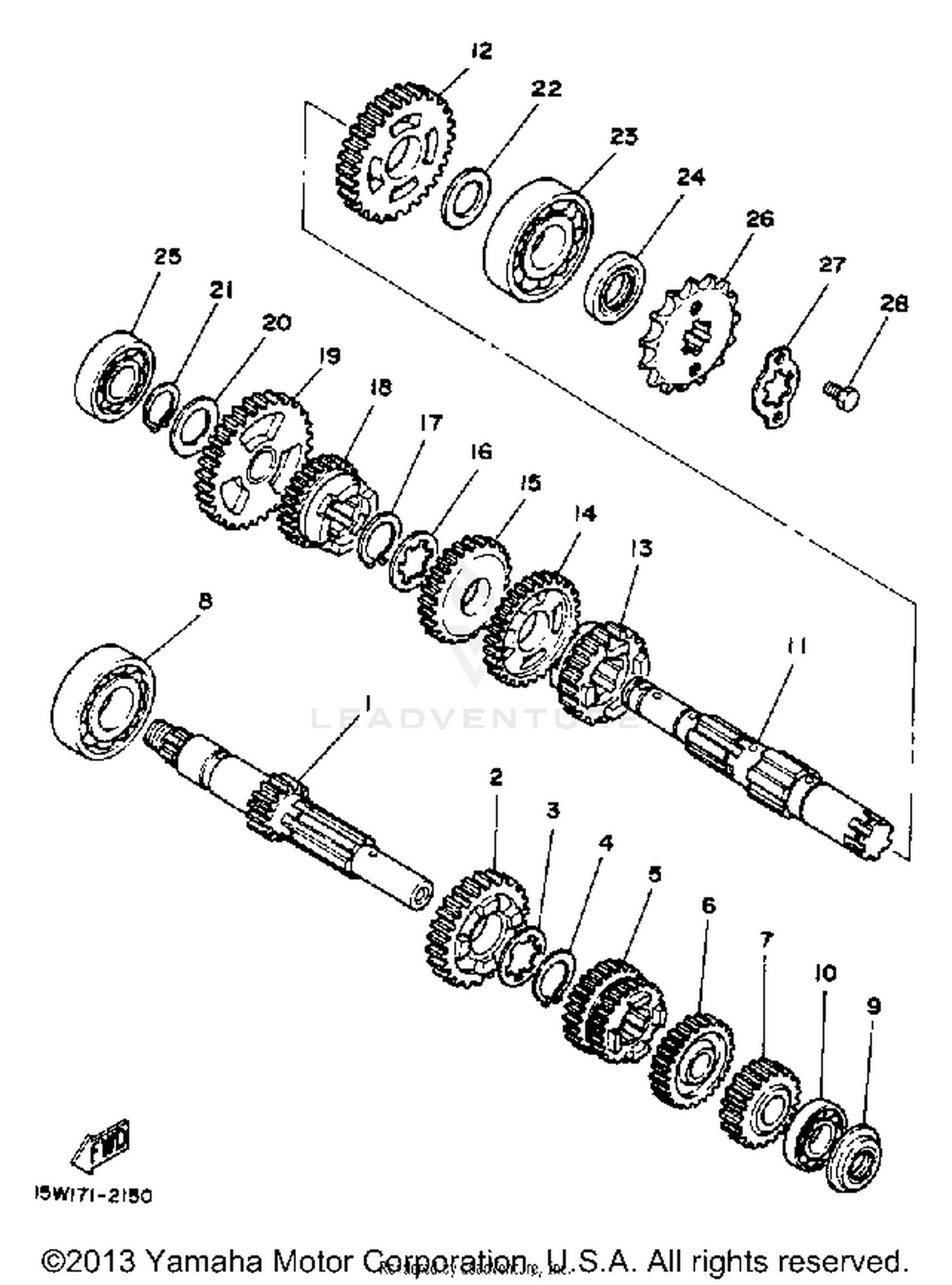

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
17T-17411-00-00
|
$36.48 | ||
|
Unavailable |
|||
|
#2
GEAR, 4TH PINION (29T)
5H0-17141-01-00
|
$28.86 | ||
|
Unavailable |
|||
|
#3
WASHER
90209-16209-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93410-20038-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 3RD/4TH PINION (21T/24T)
1KH-17131-01-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 4TH PINION
5N0-17141-00-00
|
$14.20 | ||
|
Unavailable |
|||
|
#7
GEAR, 2ND PINION (18T)
17T-17121-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING (B6204)
93306-20421-00
Superseded by 93306-20461-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93101-15101-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-20211-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DRIVE AXLE ASSY
17T-17402-00-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, 2ND WHEEL (34T)
17T-17221-00-00
Superseded by 17T-17221-01-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, 5TH WHEEL (25T)
17T-17251-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#14
GEAR, 3RD WHEEL (30T)
1KH-17231-00-00
Superseded by 1KH-17231-01-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, 4TH WHEEL (27T)
17T-17241-01-00
Superseded by 17T-17241-03-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
90209-18208-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
93410-22039-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, 6TH WHEEL (23T)
1EV-17251-00-00
Superseded by 5MP-17261-00-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, 1ST WHEEL
17T-17211-00-00
|
$26.12 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE
90201-17257-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP
99009-17400-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-203E7-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING (B6304A3)
93306-30424-00
Superseded by 93306-30443-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93102-20242-00
Superseded by 93102-20004-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING
93306-20332-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPROCKET, DRIVE (5N0-17461-40-0
93822-14043-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER, SPROCKET
5H0-17456-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
