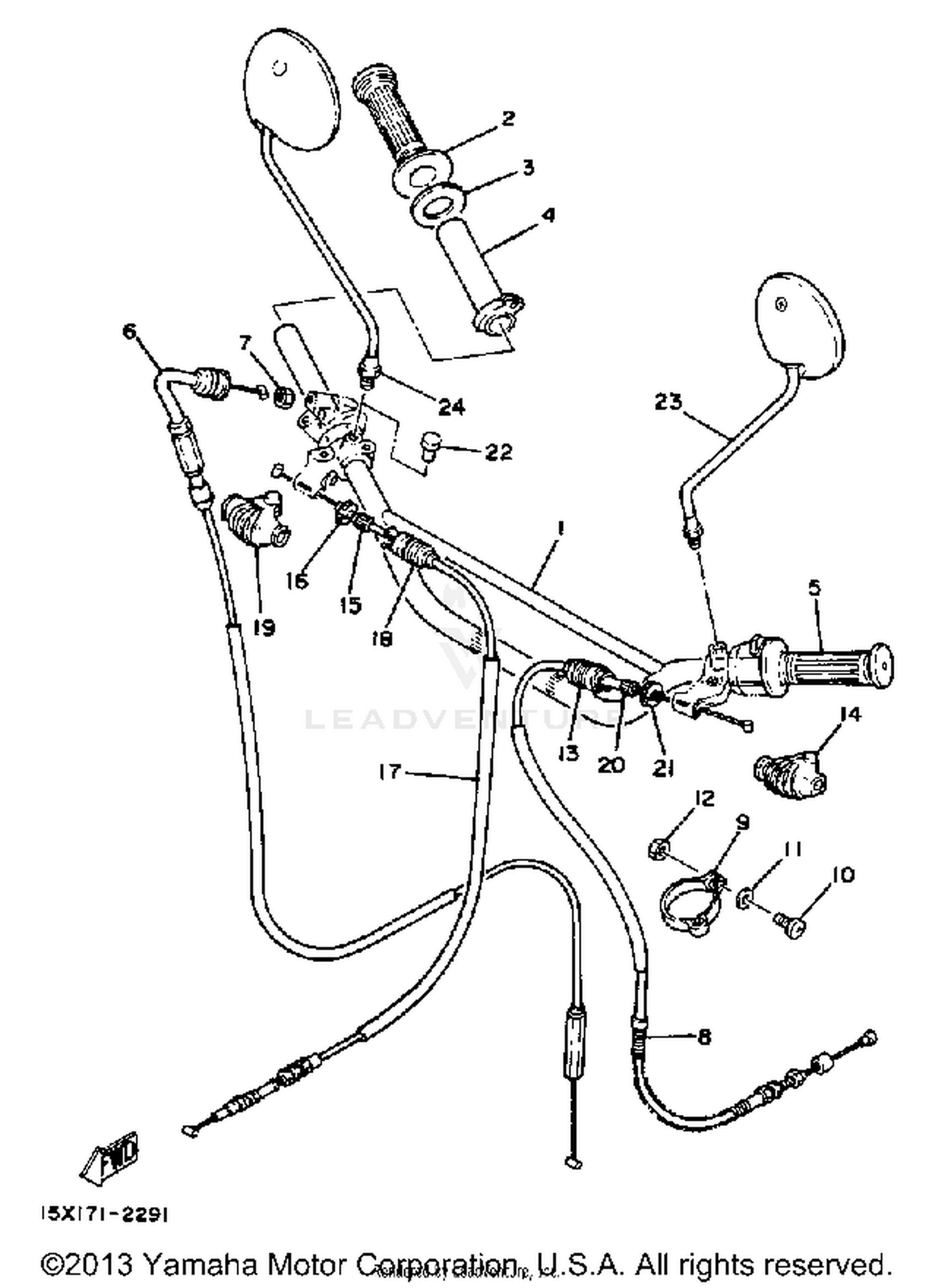

Handlebar - Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
3G7-26111-00-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRIP RH
1A0-26242-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING, LEAF
1M1-26249-01-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, THRTL GUIDE
15E-26243-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#5
GRIP LH
1E6-26241-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE, THROTTLE 1
15A-26311-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, HEXAGON
90170-10038-00
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
CABLE, CLUTCH
15A-26335-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#9
BAND
3Y1-26397-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN HEAD
98501-05016-00
Superseded by 98507-05016-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
95380-05600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOOT, CABLE
1E6-26342-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, HANDLE LEVER 1
1E6-26372-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.94 | ||
|
Available to order. Add to View Price |
|||
|
#17
CABLE, BRAKE
15A-26341-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#18
BOOT, CABLE
1E6-26342-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#19
COVER, HANDLE LEVER 1
1E6-26372-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#20
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.99 | ||
|
Unavailable |
|||
|
#21
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.94 | ||
|
Unavailable |
|||
|
#22
PLUG
90338-09012-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
MIRROR ASSY., 2
5Y1-26290-10-00
Superseded by 5Y1-26290-11-00
|
$75.99 | ||
|
Unavailable |
|||
|
#24
BACK MIRROR ASSY (R.H)
3Y1-26290-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
