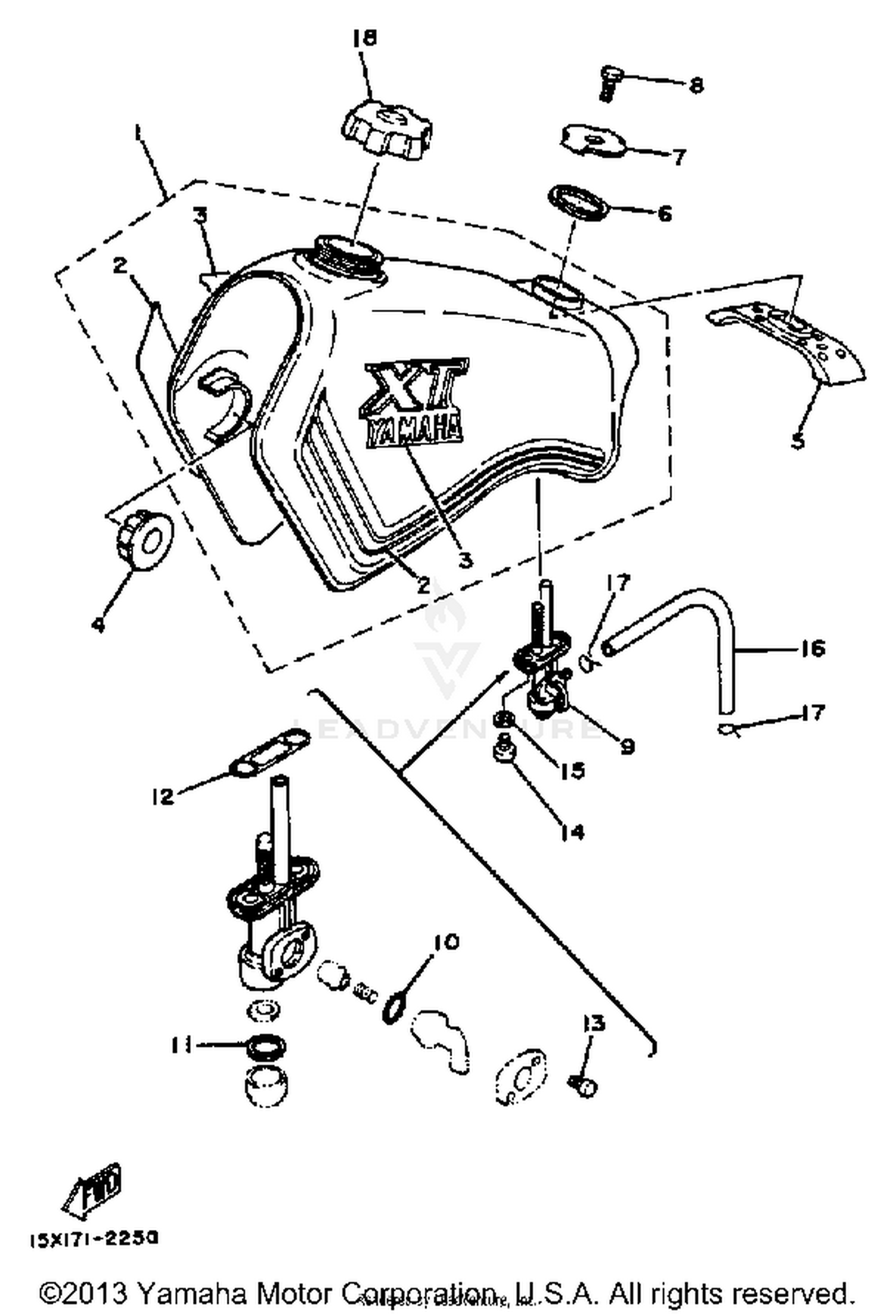

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
15A-24110-00-04
|
$709.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
21N-24240-00-00
|
$66.48 | ||
|
Unavailable |
|||
|
#3
EMBLEM 1
20T-24161-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#4
DAMPER, LOCATING 1
4H7-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER, LOCATING 2
15A-24182-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#6
DAMPER, LOCATING 3
11H-24183-00-00
Superseded by 3Y6-24183-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPECIAL
11H-24186-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#8
BOLT
97001-08025-00
Superseded by 97017-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUEL COCK ASSY 1
15A-24500-03-00
Superseded by 23F-24500-20-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, COCK
4X8-24534-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
4X8-24565-00-00
Superseded by 4X8-24565-10-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, LEVER FITTING
4X8-24535-00-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE (L110)
90445-10638-00
Superseded by 90445-10752-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP ASSEMBLY
3Y1-24610-01-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
