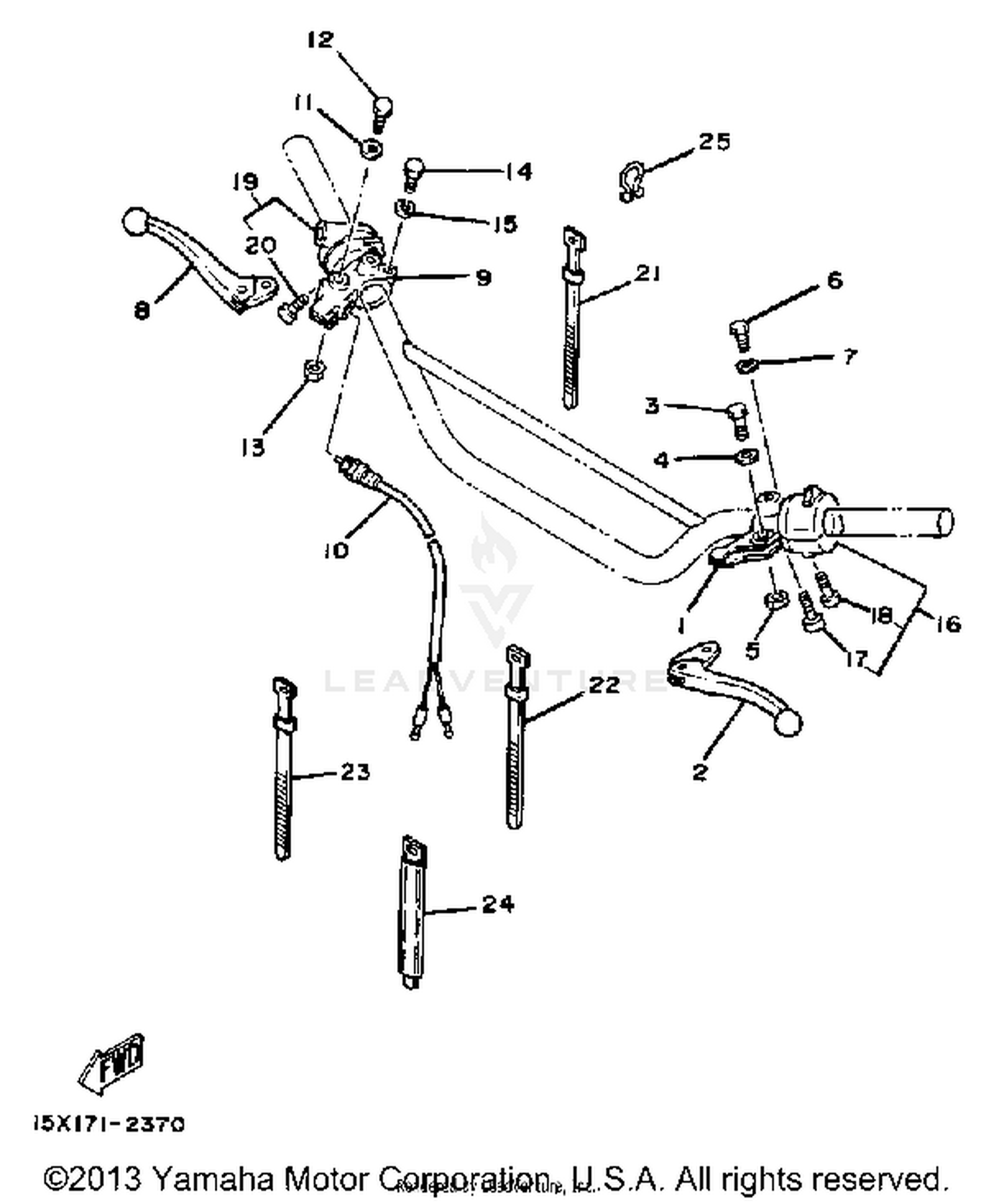

Handle Switch - Lever Xt200k - Kc Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER, LEVER 1
3Y6-82911-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER 1
3FY-83912-01-00
Superseded by 3FY-83912-02-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90109-06797-00
Superseded by 90109-061F3-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-08083-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
97006-06022-00
Superseded by 97007-06022-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER 2
5Y1-83922-10-00
Superseded by 5Y1-83922-11-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER, LEVER 2 (36182-92131-00
361-82920-93-00
|
$119.99 | ||
|
Unavailable |
|||
|
#10
FRONT STOP SWITCH AS
395-83980-00-00
Superseded by 395-83980-09-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-08083-00
|
$8.99 | ||
|
Unavailable |
|||
|
#12
BOLT
90109-06797-00
Superseded by 90109-061F3-00
|
$6.99 | ||
|
Unavailable |
|||
|
#13
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.99 | ||
|
Unavailable |
|||
|
#14
BOLT
97006-06022-00
Superseded by 97007-06022-00
|
$7.99 | ||
|
Unavailable |
|||
|
#15
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.16 | ||
|
Unavailable |
|||
|
#16
SWITCH, HANDLE 3
15A-83973-00-00
|
$140.99 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN HEAD
98506-05030-00
Superseded by 98517-05030-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98506-05020-00
Superseded by 98517-05020-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#19
SWITCH, HANDLE 1
15A-83976-00-00
|
$50.99 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN HEAD
90157-05057-00
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, SWITCH CORD
437-83936-01-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAND, SWITCH CORD
437-83936-01-00
|
$7.99 | ||
|
Unavailable |
|||
|
#23
BAND, SWITCH CORD
437-83936-11-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#24
BAND
341-26397-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
90464-16039-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
