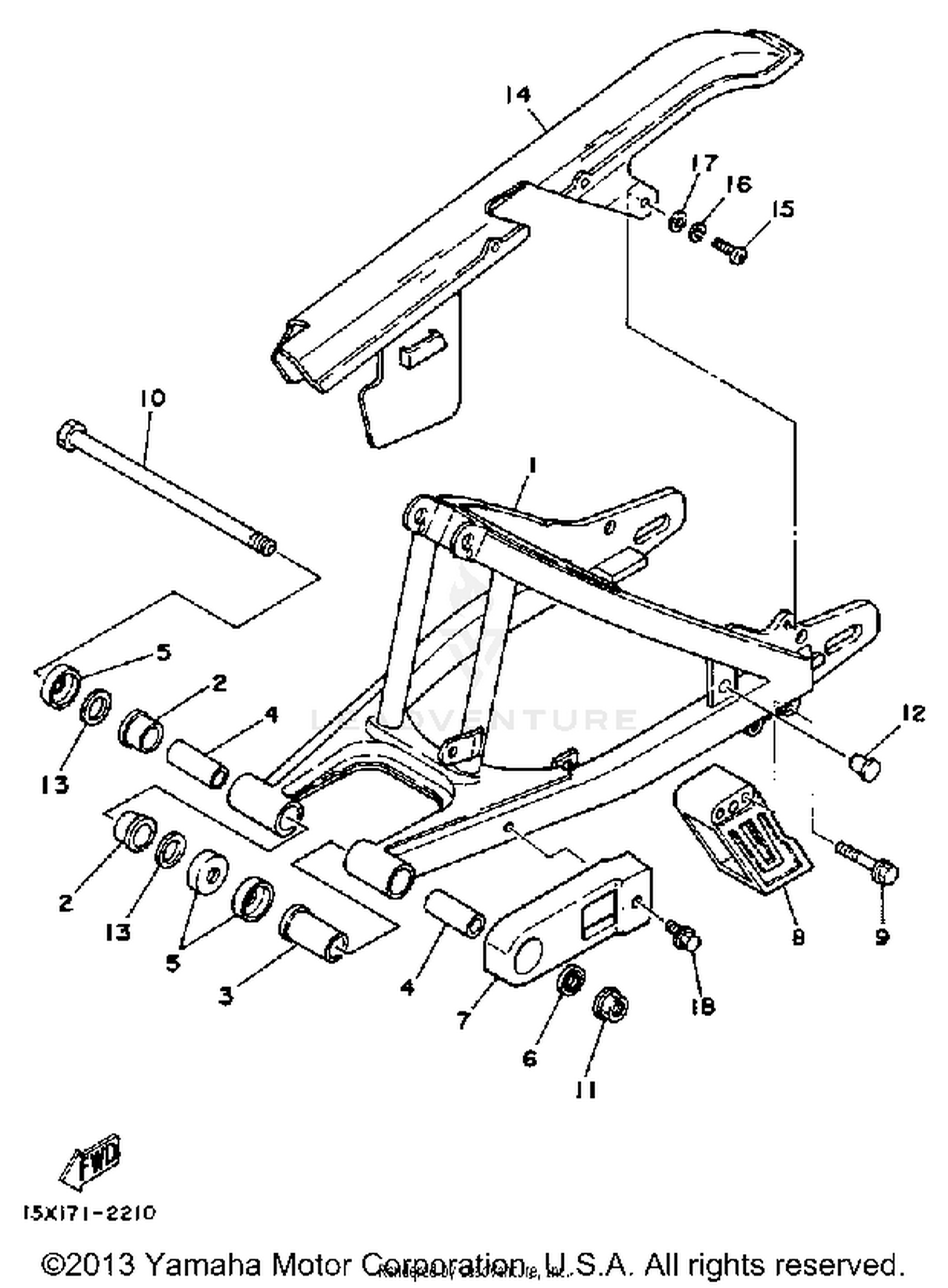

Rear Arm Xt200k - Kc Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
15A-22110-00-35
Superseded by 15A-22110-01-35
|
$252.99 | ||
|
Unavailable |
|||
|
#2
BUSH 1
15A-22123-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH
90386-18028-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
15A-22126-00-00
Superseded by 90387-124R8-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, THRUST 1
401-22128-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93109-18020-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, GUARD
15A-22151-10-00
|
$21.99 | ||
|
Unavailable |
|||
|
#8
GUARD, CHAIN
10V-22153-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95811-06050-00
Superseded by 95817-06050-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT, PIVOT
15A-22141-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#11
NUT, SELF-LOCKING
90185-12072-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG, SPECIAL SHAPE
90338-11111-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIM
401-22127-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CHAIN CASE ASSEMBLY
15A-22310-00-00
|
$60.99 | ||
|
Unavailable |
|||
|
#15
SCREW,PAN HEAD
98506-06016-00
Superseded by 98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-062A8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, WITH WASHER
90119-05062-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
