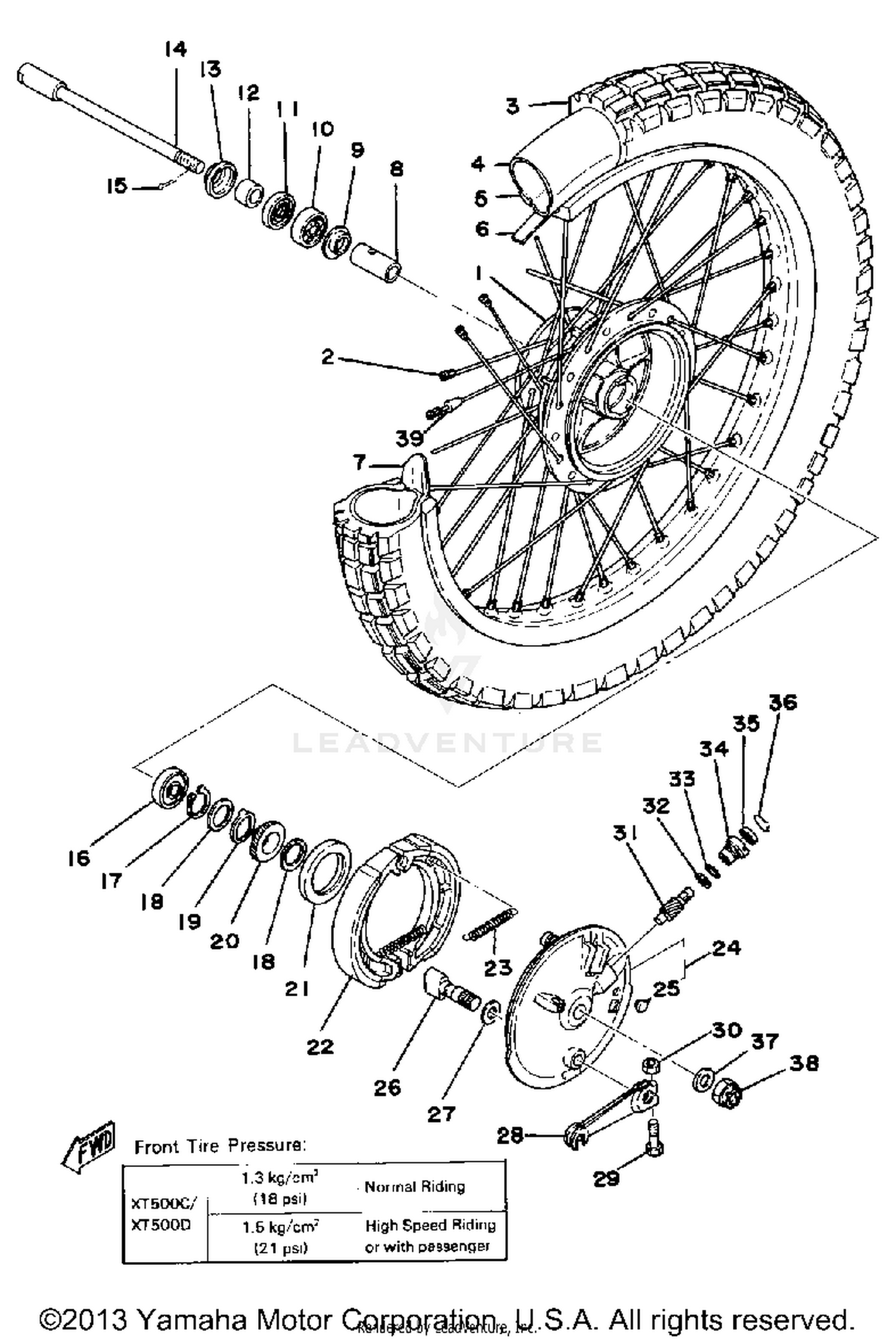

1977 Yamaha XT500 FRONT WHEEL OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
1E6-25111-00-98
|
$189.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, FRONT
1E6-25104-01-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
300X21 BS TW5A
94130-21350-00
|
$44.78 | ||
|
Unavailable |
|||
|
#4
TUBE (MCS 2.75/3.00-21 TR6)
94227-21101-00
Superseded by 94227-21123-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIM 1.60X21
94416-21326-00
|
$513.99 | ||
|
Unavailable |
|||
|
#6
BAND, RIM
94327-21024-00
|
$4.60 | ||
|
Unavailable |
|||
|
#7
SPACER, BEAD
1T1-25194-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER
90560-15293-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FLANGE, SPACER 2
146-25116-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-20209-00
Superseded by 93306-20205-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL
93102-20009-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-15529-00
|
$5.49 | ||
|
Unavailable |
|||
|
#13
COVER, HUB DUST
322-25118-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
AXLE, WHEEL
583-25181-00-00
|
$29.38 | ||
|
Unavailable |
|||
|
#15
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING
93306-20226-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
93410-22014-00
Superseded by 99009-22400-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-22283-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLUTCH, METER
214-25149-01-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, DRIVE
308-25135-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#21
OIL SEAL, SDD-TYPE (SDD-50-62-7
93105-50010-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRAKE SHOE SET-2PCS
431-W2536-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#23
SPRING, TENSION
90507-20002-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRAKE SHOE PLATE ASSEMBLY
1E6-25016-10-98
|
$77.99 | ||
|
Unavailable |
|||
|
#25
GROMMET
90480-10068-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CAMSHAFT
1E6-25151-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#27
SHIM, CAMSHAFT
148-25353-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
LEVER, CAMSHAFT 1
2N6-25155-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
90101-06278-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, HEXAGON
95380-06600-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#31
GEAR, METER
308-25138-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#32
WASHER, PLATE
90201-07076-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BUSH
109-25136-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
OIL SEAL
93104-07003-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
RING, STOP
102-25137-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PLAIN
92990-14200-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BALANCER, WHEEL (15G)
156-25398-00-00
Superseded by 3HT-25398-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
