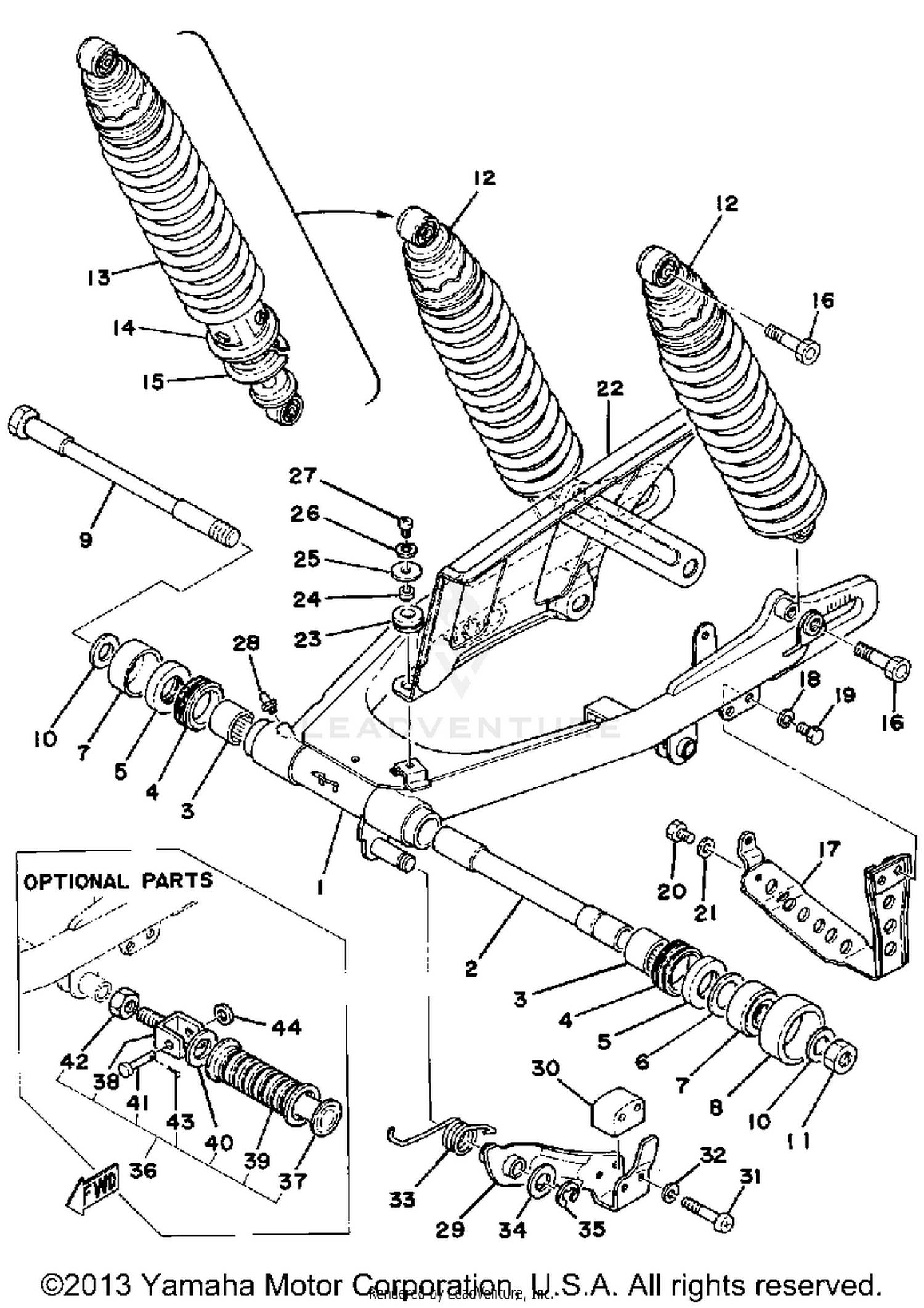

Rear Arm - Rear Cushion - Chain Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
1T2-22110-00-33
|
$126.99 | ||
|
Unavailable |
|||
|
#2
BUSH 2
483-22124-00-00
|
$97.99 | ||
|
Unavailable |
|||
|
#3
BEARING, CYLINDER.#17
93317-22208-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL (35-41-8)
93108-35004-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, FLAT #42
93342-22205-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM (90201-22284)
648-45533-00-02
|
$3.35 | ||
|
Unavailable |
|||
|
#7
COVER, THRUST 2
2K8-22129-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL, GUARD
431-22151-03-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT, PIVOT
583-22141-01-00
|
$37.99 | ||
|
Unavailable |
|||
|
#10
WASHER, CONICAL SPRING
90208-16019-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SELF-LOCKING
95601-16100-00
Superseded by 95617-16100-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHK/ABS ASSEMBLY, REAR
3H7-22210-00-00
|
$471.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING
1T1-22212-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#14
COVER
583-22211-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#15
GUIDE, SPRING 1
583-22214-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#16
BOLT
90109-10420-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GUARD, CHAIN
438-22318-00-33
|
$14.42 | ||
|
Unavailable |
|||
|
#18
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
97001-06018-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CASE, CHAIN
1E6-22311-00-33
|
$25.04 | ||
|
Unavailable |
|||
|
#23
GROMMET
90480-12529-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPACER
90560-05001-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-06407-00
Superseded by 90201-06747-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#29
ARM, TENSIONER
1T1-22179-02-00
|
$49.99 | ||
|
Unavailable |
|||
|
#30
TENSIONER
1T1-22178-01-00
|
$46.99 | ||
|
Unavailable |
|||
|
#31
SCREW, PAN HEAD
98501-05040-00
Superseded by 98507-05040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Unavailable |
|||
|
#33
SPRING, TORSION
90508-32333-00
|
$4.30 | ||
|
Unavailable |
|||
|
#34
WASHER, PLATE
90201-14411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
CIRCLIP
93430-10015-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
RR FOOTREST ASSEMBLY 1
120-27430-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
FOOTREST, REAR 1
120-27431-00-00
Superseded by 2GV-27431-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BRACKET 1
120-27432-02-00
|
$7.49 | ||
|
Unavailable |
|||
|
#39
COVER, REAR FOOTREST
120-27433-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLATE
90201-20279-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
PIN, CLEVIS
90240-06052-00
|
$1.09 | ||
|
Unavailable |
|||
|
#42
NUT
95301-12700-00
Superseded by 95317-12700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER, PLATE
90201-062G3-00
Superseded by 90201-06049-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
