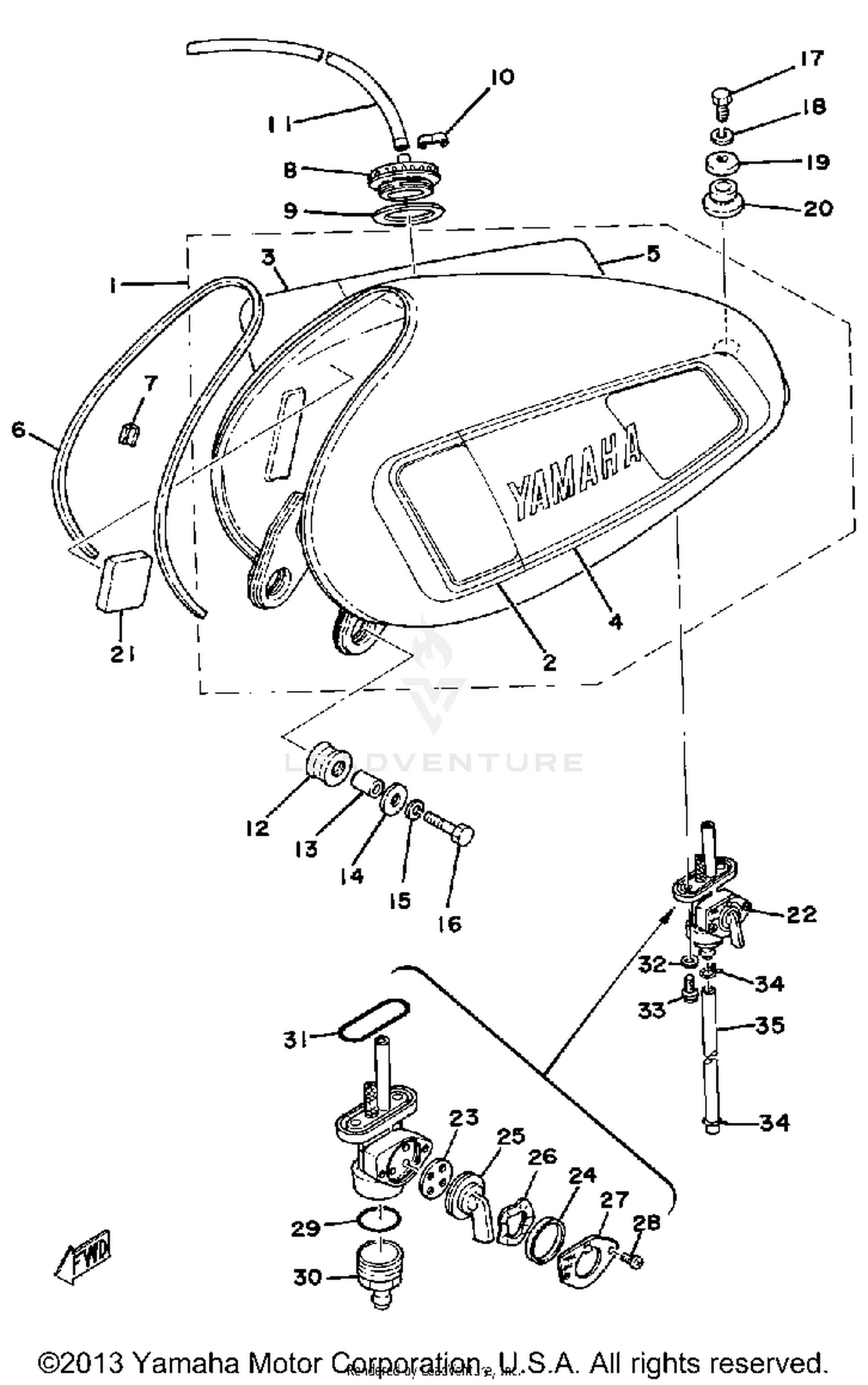

1977 Yamaha XT500 FUEL TANK OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
1E6-24110-00-03
|
$346.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC, FUEL TNK 1
1E6-24244-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#3
GRAPHIC, FUEL TNK 3
1E6-24246-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#4
GRAPHIC, FUEL TNK 2
1E6-24245-00-00
|
$10.40 | ||
|
Unavailable |
|||
|
#5
GRAPHIC, FUEL TNK 4
1E6-24247-00-00
|
$10.40 | ||
|
Unavailable |
|||
|
#6
PLATE, MOLD
1E6-24189-00-00
|
$8.46 | ||
|
Unavailable |
|||
|
#7
CLIP
90468-03063-00
|
$3.70 | ||
|
Unavailable |
|||
|
#8
BODY, CAP
322-24611-02-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
90430-35122-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
90468-15064-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE (L675)
90445-09111-00
Superseded by 90445-090F6-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET
90480-22177-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-086N4-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-06570-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92990-08100-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPEC''L SHAP (90209-080
90209-08150-00
|
$2.85 | ||
|
Unavailable |
|||
|
#20
GROMMET
90480-22054-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER, LOCATING 2
583-24182-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
FUEL COCK ASSEMBLY 1 (214-24500
498-24500-01-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
VALVE
498-24523-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
498-24528-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#25
LEVER, COCK
498-24524-01-00
|
$39.99 | ||
|
Unavailable |
|||
|
#26
WASHER, WAVE
90206-18025-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLATE, LVR FITTING
498-24525-00-00
|
$12.16 | ||
|
Unavailable |
|||
|
#28
SCREW, LEVER FITTING
214-24535-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET
498-24522-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CUP, FILTER
498-24521-00-00
|
$11.24 | ||
|
Unavailable |
|||
|
#31
GASKET
214-24512-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
90202-05187-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW
90149-06011-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOSE (L210)
90445-11288-00
Superseded by 90445-110F5-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
