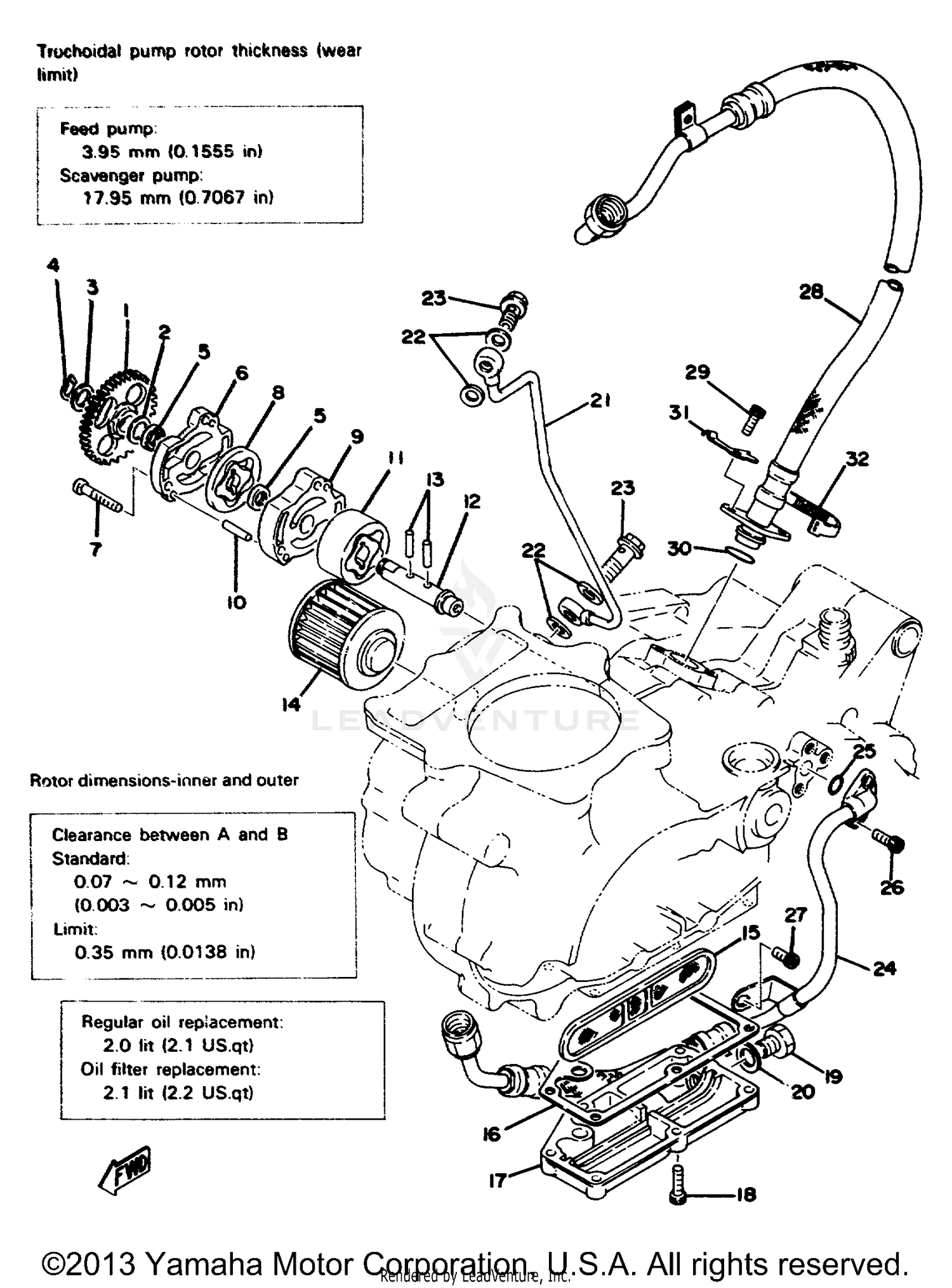

1977 Yamaha XT500 OIL PUMP - OIL CLEANER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PUMP DRIVEN
583-13325-00-00
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, PLATE
90201-12166-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-10119-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
99009-10400-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93104-11038-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CVR/HOUSING COMP
99999-00996-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98580-06030-00
Superseded by 97885-06030-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROTOR ASSEMBLY 1
583-13310-01-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CVR/HOUSING COMP
99999-00996-00
|
$139.99 | ||
|
Unavailable |
|||
|
#10
PIN, DOWEL
93604-22050-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROTOR ASSEMBLY 2
583-13320-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHAFT, PUMP
583-13314-00-00
Superseded by 583-13314-01-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, DOWEL
93603-17070-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
ELEMENT ASSY, OIL CLEANER
4X7-13440-90-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
STRAINER, OIL
583-13411-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET, STRAINER COVER
583-13414-00-00
Superseded by 3HT-13414-00-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, STRAINER
583-13417-01-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90101-14259-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET
214-11198-01-00
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE, DELIVERY 1
583-13161-01-00
|
$66.99 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-08087-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, UNION
90401-08038-00
Superseded by 90401-08006-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE, OIL 1
583-13464-00-00
|
$288.99 | ||
|
Unavailable |
|||
|
#25
O-RING
93210-10197-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT (4MY)
91316-06016-00
Superseded by 91317-06016-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
91316-06012-00
Superseded by 91317-06012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE, OIL 2
583-13465-02-00
|
$292.99 | ||
|
Unavailable |
|||
|
#29
BOLT (4MY)
91316-06016-00
Superseded by 91317-06016-00
|
$1.10 | ||
|
Unavailable |
|||
|
#30
O-RING
93210-15171-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLAMP
90465-06077-00
|
$2.87 | ||
|
Unavailable |
|||
|
#32
BAND, SWITCH CORD
437-83936-01-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
