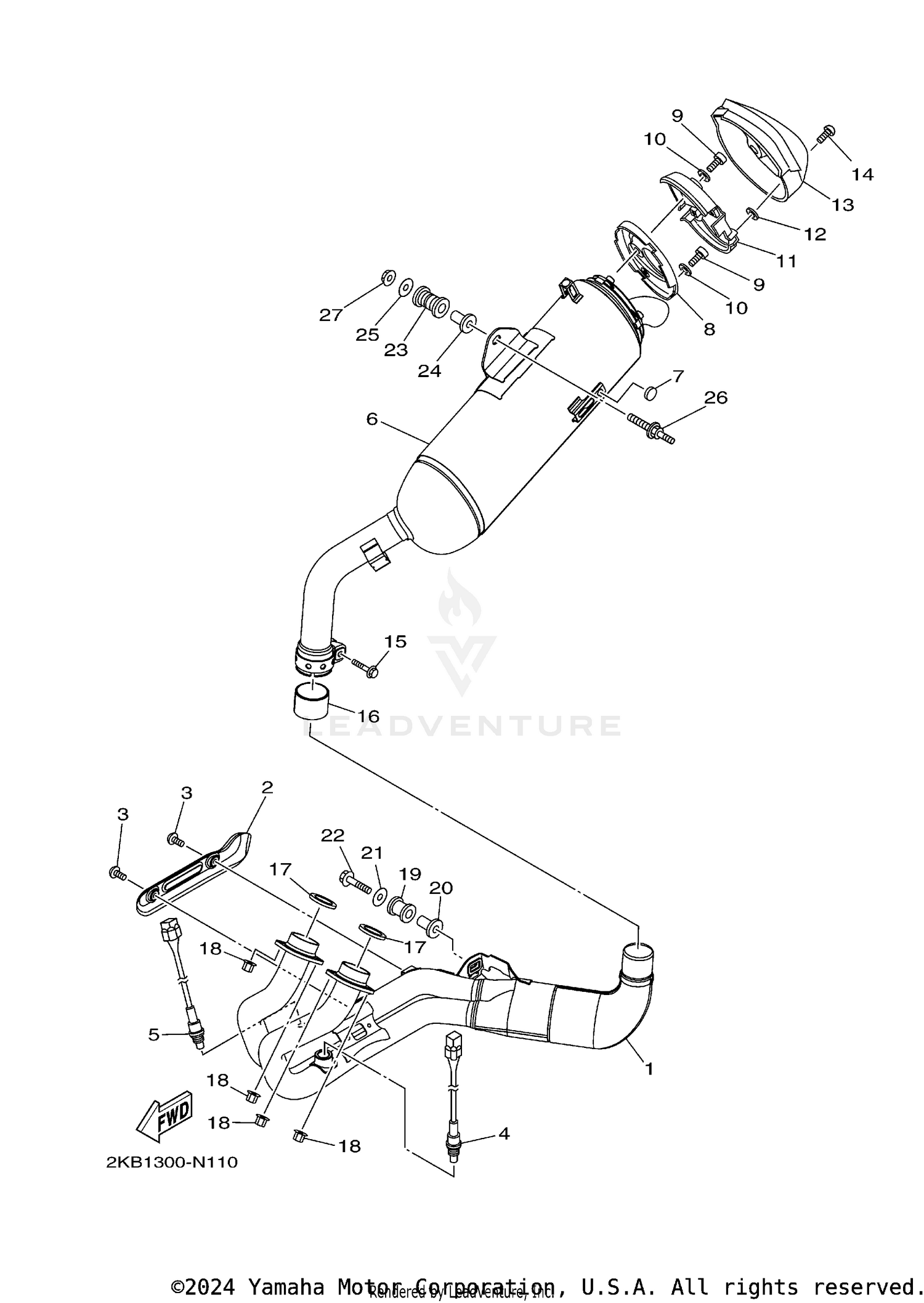

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSY 1
2BS-14610-00-00
|
$989.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTOR, EXHAUST PIPE
23P-14628-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, BIND
98980-06008-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
SENSOR, OXYGEN
2BS-8592A-00-00
|
$241.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SENSOR, OXYGEN
2BS-8592A-10-00
|
$237.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
MUFFLER COMP. 1
23P-14703-10-00
|
$603.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, LOCATING 1
22W-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET 3-1
23P-1473K-10-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
91380-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET 4-1
23P-1474K-10-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PROTECTOR
5GM-14766-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, SILENCER 2
23P-14798-00-00
|
$217.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
90110-06381-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95814-08040-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET, MUFFLER
5VY-14714-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, EXHAUST PIPE
4FM-14613-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90179-08410-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER, MUFFLER 2
5YU-14757-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-082W9-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-08034-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95814-08040-00
|
$4.45 | ||
|
Unavailable |
|||
|
#23
DAMPER, FOOTREST 2
36Y-27424-01-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-10636-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-10043-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
23P-14777-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, WITH WASHER
95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
