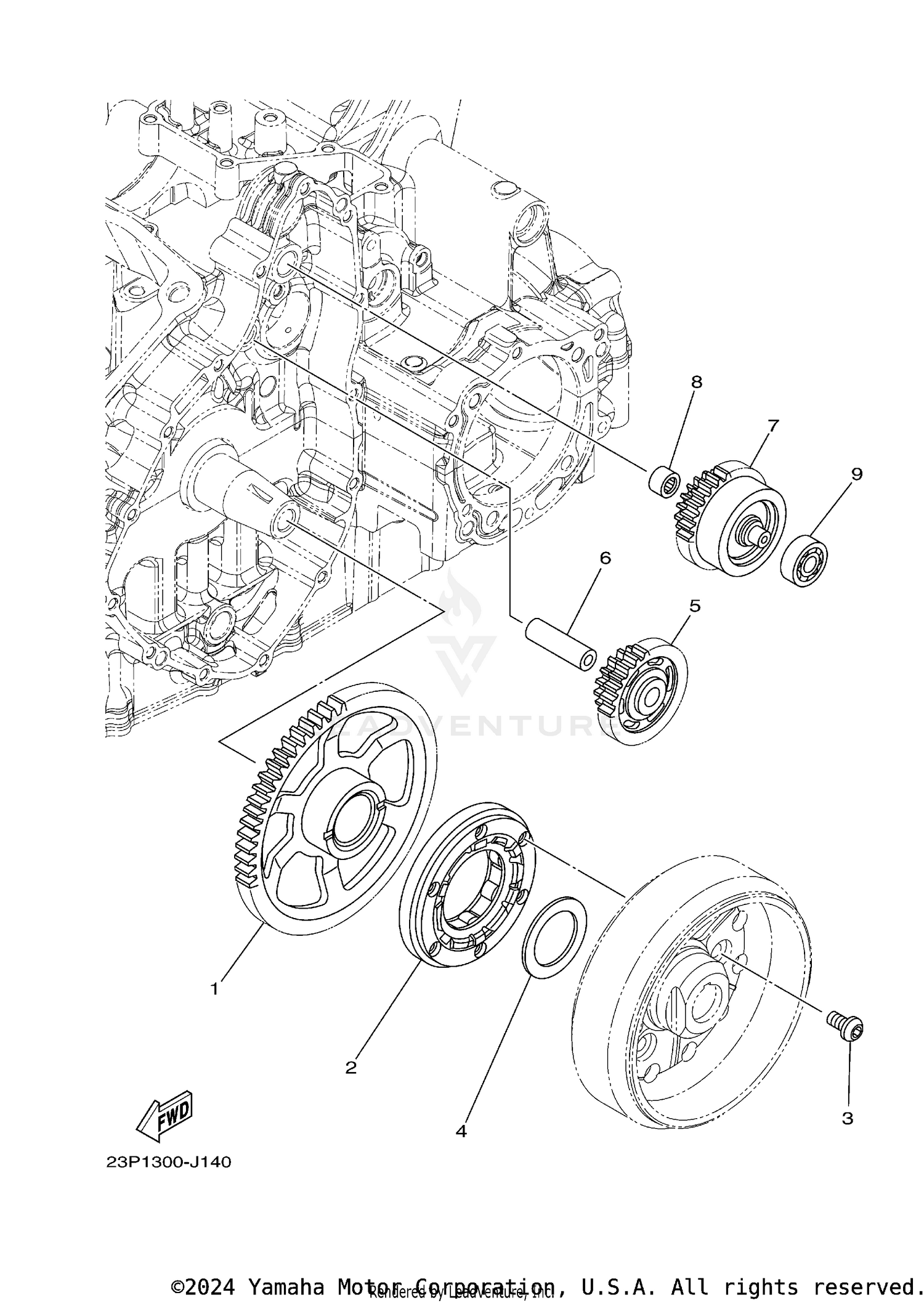

Starter Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR 3
23P-15515-00-00
|
$186.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
STARTER ONE-WAY ASSY
4NK-15590-00-00
|
$280.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
90149-08030-00
Superseded by 90149-08031-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-350F3-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
IDLE GEAR ASSY
23P-15650-00-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT 1
23P-15521-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER ASSY
23P-15560-00-00
|
$251.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93317-11096-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-00006-00
Superseded by 93306-00004-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
