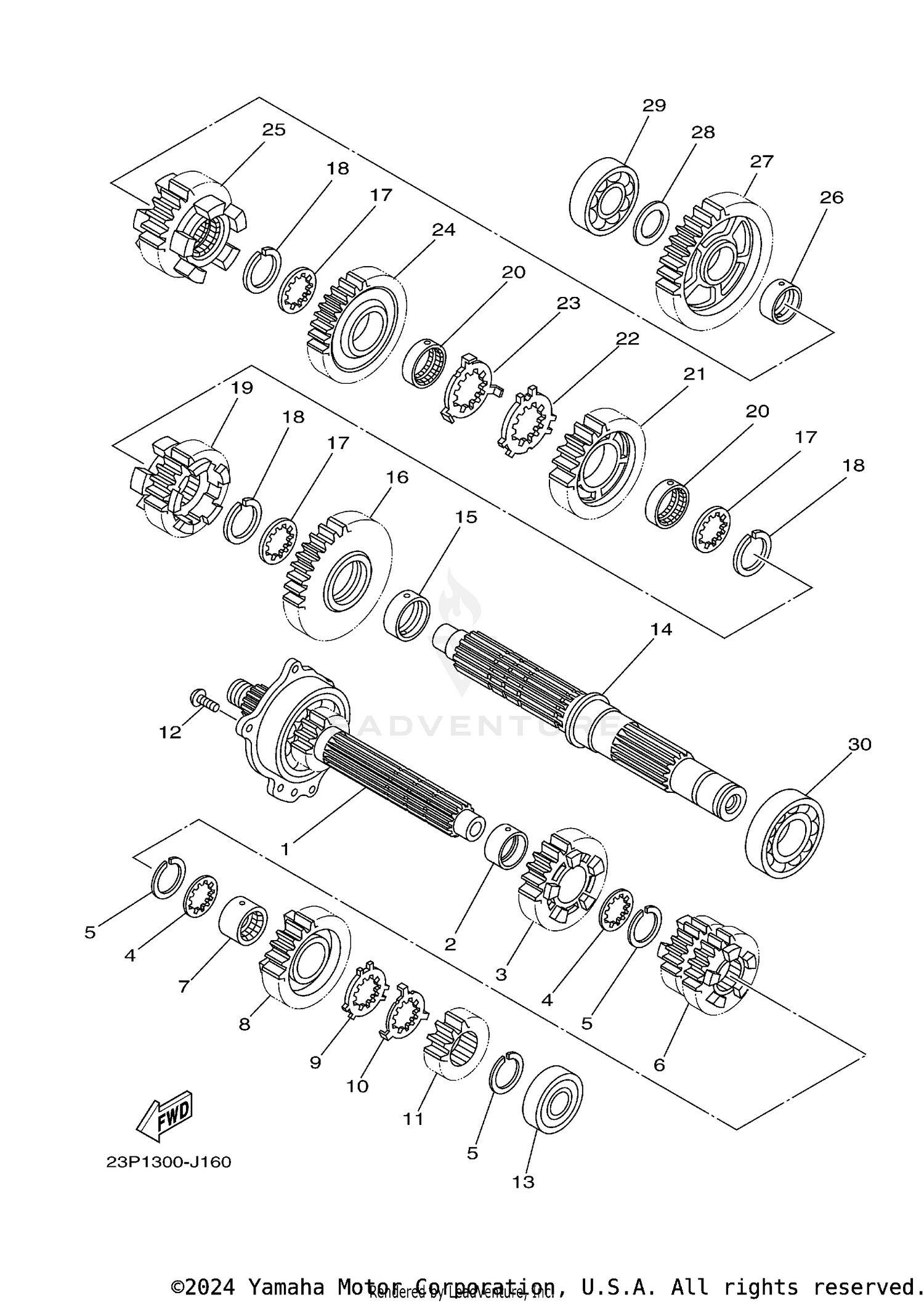

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN AXLE ASSY
23P-17401-00-00
|
$283.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-28003-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 5TH PINION (24T)
23P-17151-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
90209-25011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93440-28184-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 3RD PINION (21T/24T)
23P-17131-00-00
|
$160.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-25023-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, 6TH PINION (28T)
23P-17161-00-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, CLAW
90214-25004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, CLAW
90214-25003-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, 2ND PINION (16T)
5S7-17121-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
90149-06082-00
Superseded by 90149-06081-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-20464-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DRIVE AXLE ASSY
23P-17402-00-00
|
$211.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-31003-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, 2ND WHEEL (33T)
23P-17221-00-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
90209-28008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
93440-31187-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, 6TH WHEEL (26T)
23P-17261-00-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-28004-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, 4TH WHEEL (30T)
23P-17241-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, CLAW
90214-29002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, CLAW
90214-28002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GEAR, 3RD WHEEL (33T)
23P-17231-00-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GEAR, 5TH WHEEL (25T)
23P-17251-00-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-25008-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
GEAR, 1ST WHEEL (36T)
23P-17211-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-224L4-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING
93306-37215-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING
93306-28204-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
