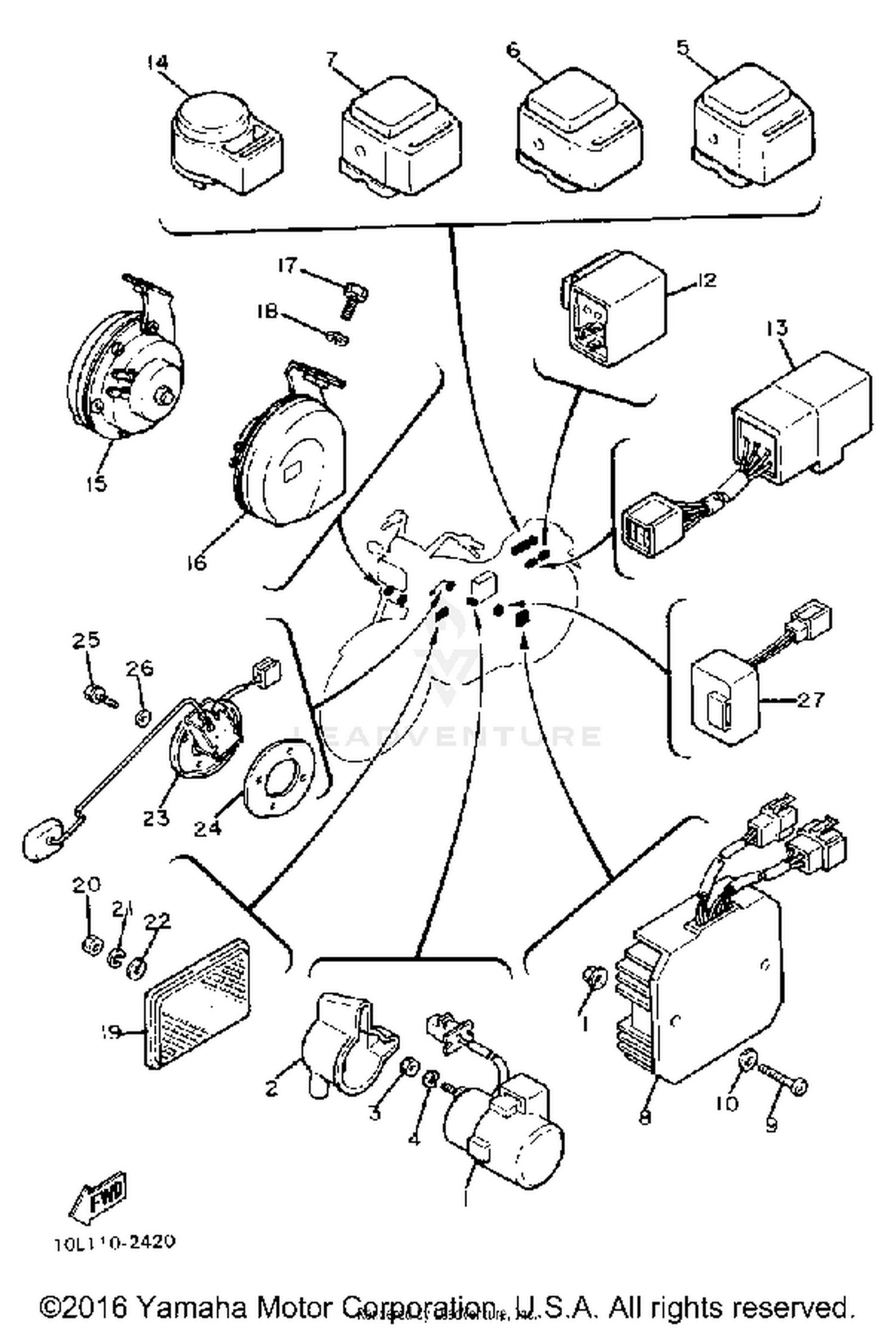

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER SWITCH ASSEMBLY (MS5D-3
4X7-81940-10-00
|
$161.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER,LEAD WIRE
5H1-82119-00-00
Superseded by 6G5-82119-10-00
|
$9.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
RELAY ASSY
4U8-81950-02-00
Superseded by 4U8-81950-03-00
|
$79.99 | ||
|
Unavailable |
|||
|
#6
RELAY ASSY
4U8-81950-02-00
Superseded by 4U8-81950-03-00
|
$79.99 | ||
|
Unavailable |
|||
|
#7
RELAY ASSY
12R-81950-01-00
Superseded by 12R-81950-02-00
|
$67.99 | ||
|
Unavailable |
|||
|
#8
RECTIFIER/REG ASSEMBLY
4X7-81960-A0-00
|
$314.99 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98580-06035-00
Superseded by 97885-06035-00
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
FLASHER RELAY ASSEMBLYASSEMBLY
4E6-83350-70-00
Superseded by 2NV-83350-00-00
|
$182.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLASHER CANCELING UNIT
1A0-83395-03-00
|
$128.99 | ||
|
Unavailable |
|||
|
#14
HZRD FLSHR RLY ASSEMBLY
10L-83360-00-00
|
$23.42 | ||
|
Unavailable |
|||
|
#15
HORN
10L-83371-20-00
|
$60.99 | ||
|
Unavailable |
|||
|
#16
HORN
10L-83371-30-00
|
$60.99 | ||
|
Unavailable |
|||
|
#17
BOLT
97016-08016-00
Superseded by 97017-08016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92906-08100-00
Superseded by 92907-08100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
FRONT REFLECTOR ASSEMBLY
4X7-85110-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#20
NUT
95311-05700-00
Superseded by 95317-05700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
SNDR UT ASSEMBLY, F/MTR
10L-85752-00-00
|
$53.20 | ||
|
Unavailable |
|||
|
#24
GASKET, SENDER UNIT
2H7-85753-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
95821-06014-00
Superseded by 95817-06014-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#27
CONTROL UNIT ASSEMBLY
10L-85590-00-00
|
$105.99 | ||
|
Unavailable |
|||
