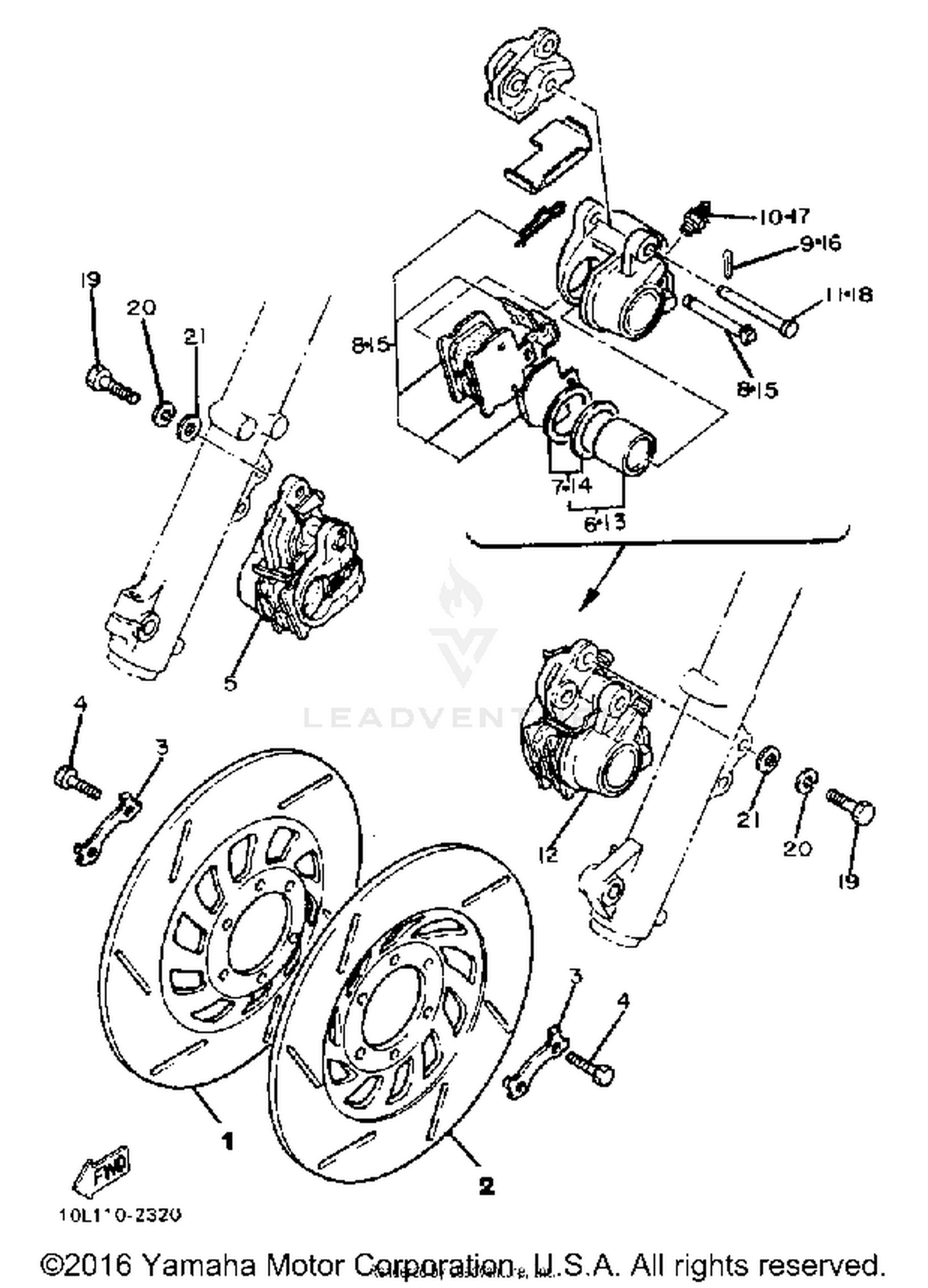

1982 Yamaha XV920J VIRAGO FRONT BRAKE-CALIPER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE
5G9-25831-00-00
|
$567.99 | ||
|
Unavailable |
|||
|
#2
DISC, BRAKE
5G9-25831-10-00
|
$319.99 | ||
|
Unavailable |
|||
|
#3
WASHER, LOCK
3H5-25834-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#4
BOLT
90101-08477-00
Superseded by 90101-08312-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER ASSY RIGHT
23W-25810-01-00
Superseded by 23W-25810-02-00
|
$243.99 | ||
|
Unavailable |
|||
|
#6
PISTON ASSEMBLY, CALIPER
4W1-W0057-00-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CALIPER SEAL KIT
4L0-W0047-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRAKE PAD KIT
23W-W0045-01-00
Superseded by 23W-W0045-02-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN. COTTER
91490-20015-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BLEED SCREW KIT
1J3-W0048-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, SLIDE
4W1-25914-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#12
CALIPER ASY.
23W-25810-11-00
Superseded by 23W-25810-12-00
|
$333.99 | ||
|
Unavailable |
|||
|
#13
PISTON ASSEMBLY, CALIPER
4W1-W0057-00-00
|
$143.99 | ||
|
Unavailable |
|||
|
#14
CALIPER SEAL KIT
4L0-W0047-01-00
|
$41.99 | ||
|
Unavailable |
|||
|
#15
BRAKE PAD KIT
23W-W0045-01-00
Superseded by 23W-W0045-02-00
|
$48.99 | ||
|
Unavailable |
|||
|
#16
PIN. COTTER
91490-20015-00
|
$1.99 | ||
|
Unavailable |
|||
|
#17
BLEED SCREW KIT
1J3-W0048-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#18
PIN, SLIDE
4W1-25914-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE
90105-10638-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92990-10100-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN
92990-10200-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
