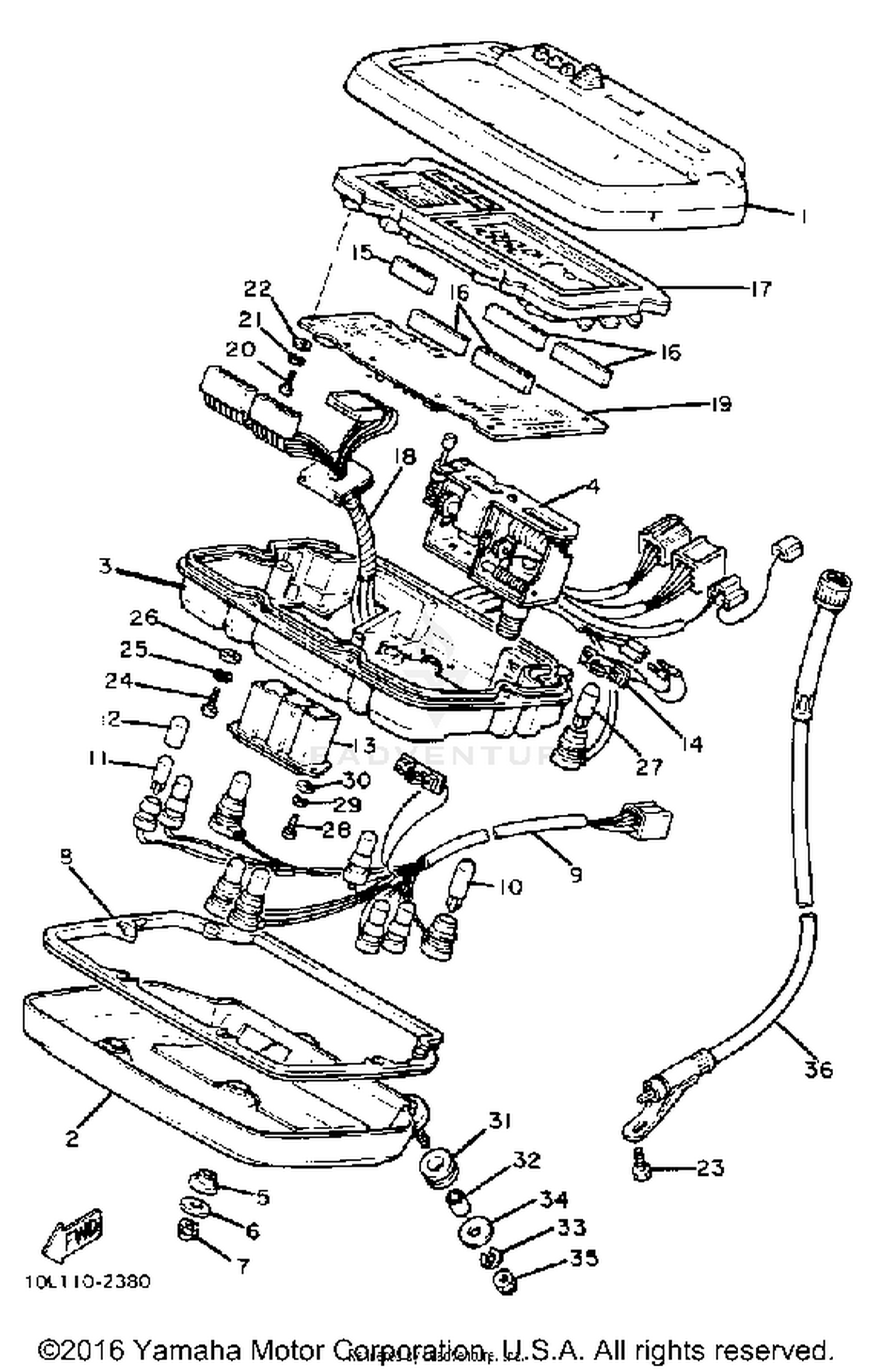

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
METER COVER ASSEMBLY
10L-W8354-00-00
|
$170.99 | ||
|
Unavailable |
|||
|
#2
BRACKET METER
10L-8355A-00-00
|
$122.99 | ||
|
Unavailable |
|||
|
#3
CASE, INNER
10L-8353H-00-00
|
$21.34 | ||
|
Unavailable |
|||
|
#4
COUNTER ASSEMBLY
10L-8355R-A0-00
|
$107.99 | ||
|
Unavailable |
|||
|
#5
DAMPER
10L-83523-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#6
WASHER, PLATE
90201-05660-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
95306-05800-00
Superseded by 95307-05800-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER
10L-83513-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#9
WIRE, LEAD
10L-83553-00-00
|
$40.00 | ||
|
Unavailable |
|||
|
#10
BULB (12V-3.4W T10)
4G1-84744-00-00
Superseded by 4G1-84744-00-XX
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
BULB (12V-2W T5)
10L-83517-00-00
Superseded by 4YR-83517-10-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE
10L-83535-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#13
BOX PILOT
10L-8356X-00-00
|
$8.28 | ||
|
Unavailable |
|||
|
#14
SENDER
10L-83556-00-00
|
$30.48 | ||
|
Unavailable |
|||
|
#15
CONNECTOR LCD 1
10L-8358T-00-00
|
$4.56 | ||
|
Unavailable |
|||
|
#16
CONNECTOR LCD 2
10L-8357V-00-00
|
$8.88 | ||
|
Unavailable |
|||
|
#17
LCD UNIT SET
10L-W8351-00-00
|
$252.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WIRE HARNESS
10L-8358Y-00-00
|
$37.80 | ||
|
Unavailable |
|||
|
#19
PRINT BOARD ASSEMBLY
10L-8359J-A0-00
|
$666.99 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN HEAD
98501-03016-00
Superseded by 98507-03016-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92990-03100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
92902-03600-00
Superseded by 92907-03600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, HEXAGON
90153-06004-00
|
$3.45 | ||
|
Unavailable |
|||
|
#24
SCREW, PAN HEAD
98580-04010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BULB (12V-3.4W T10)
4G1-84744-00-00
Superseded by 4G1-84744-00-XX
|
$4.80 | ||
|
Unavailable |
|||
|
#28
SCREW, PAN HEAD
98502-03012-00
|
$0.65 | ||
|
Unavailable |
|||
|
#29
WASHER, SPRING
92990-03100-00
|
$7.49 | ||
|
Unavailable |
|||
|
#30
WASHER
92902-03600-00
Superseded by 92907-03600-00
|
$7.49 | ||
|
Unavailable |
|||
|
#31
GROMMET
90480-14335-00
|
$2.85 | ||
|
Unavailable |
|||
|
#32
SPACER
90560-07007-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT
95316-06600-00
Superseded by 95317-06600-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPEEDOMETER CABLE
20X-83550-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
