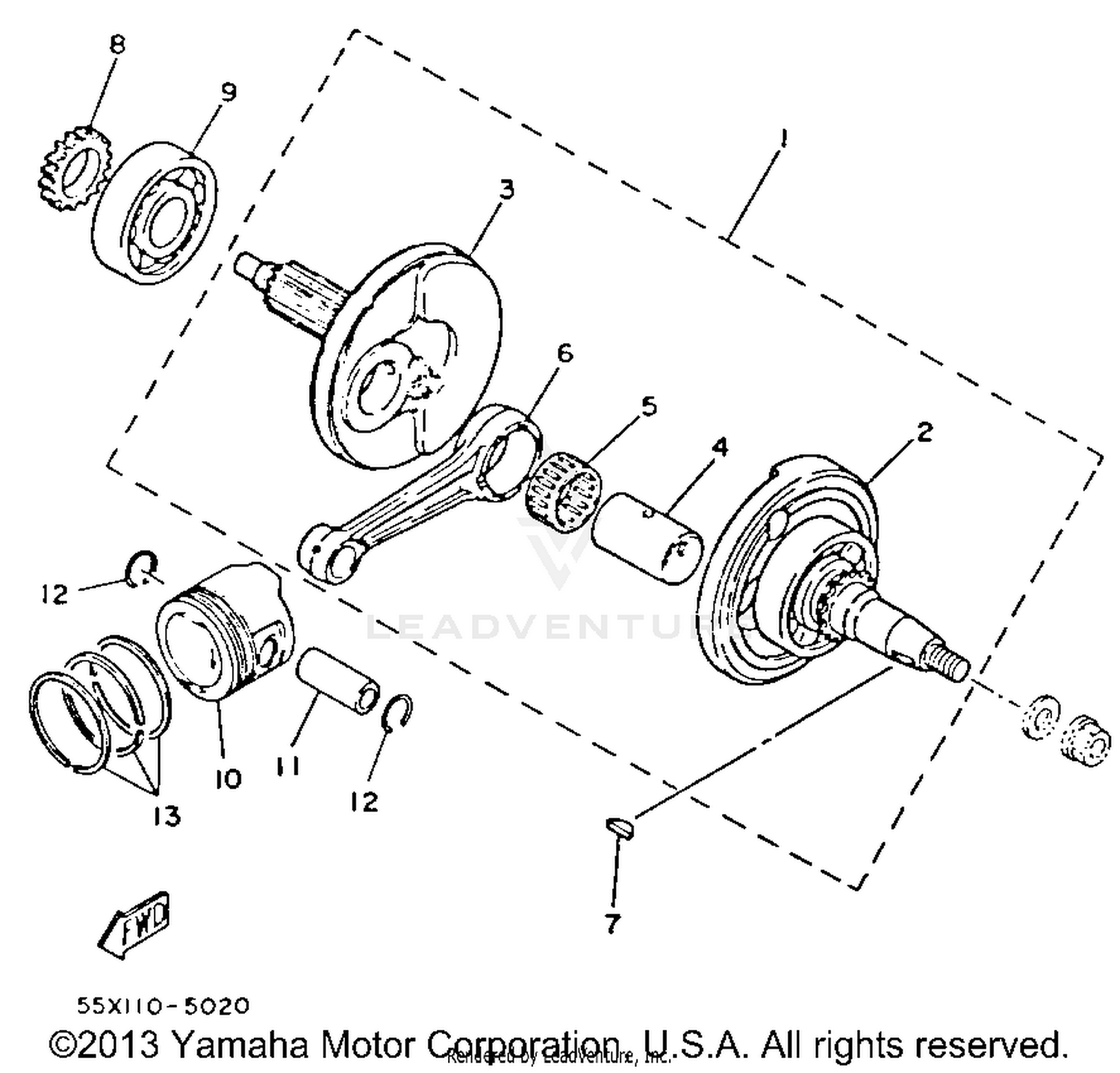

Crankshaft - Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
22K-11400-01-00
|
$236.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRANK SUB ASSY 1
22K-W1141-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANK 2
22K-11422-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, CRANK 1
22F-11681-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93311-32353-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD, CONNECTING
22K-11651-02-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
KEY, WOODRUFF
90280-03017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, PUMP DRIVE
46J-13324-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-30421-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON (1.00MM O/S)
55X-11638-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (0.50MM O/S)
55X-11636-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (STD)
55X-11631-00-96
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, PISTON
22K-11633-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
93450-14088-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
PISTON RING SET (0.50MM O/S)
55X-11610-20-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (STD)
55X-11610-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (1.00MM O/S)
55X-11610-40-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
