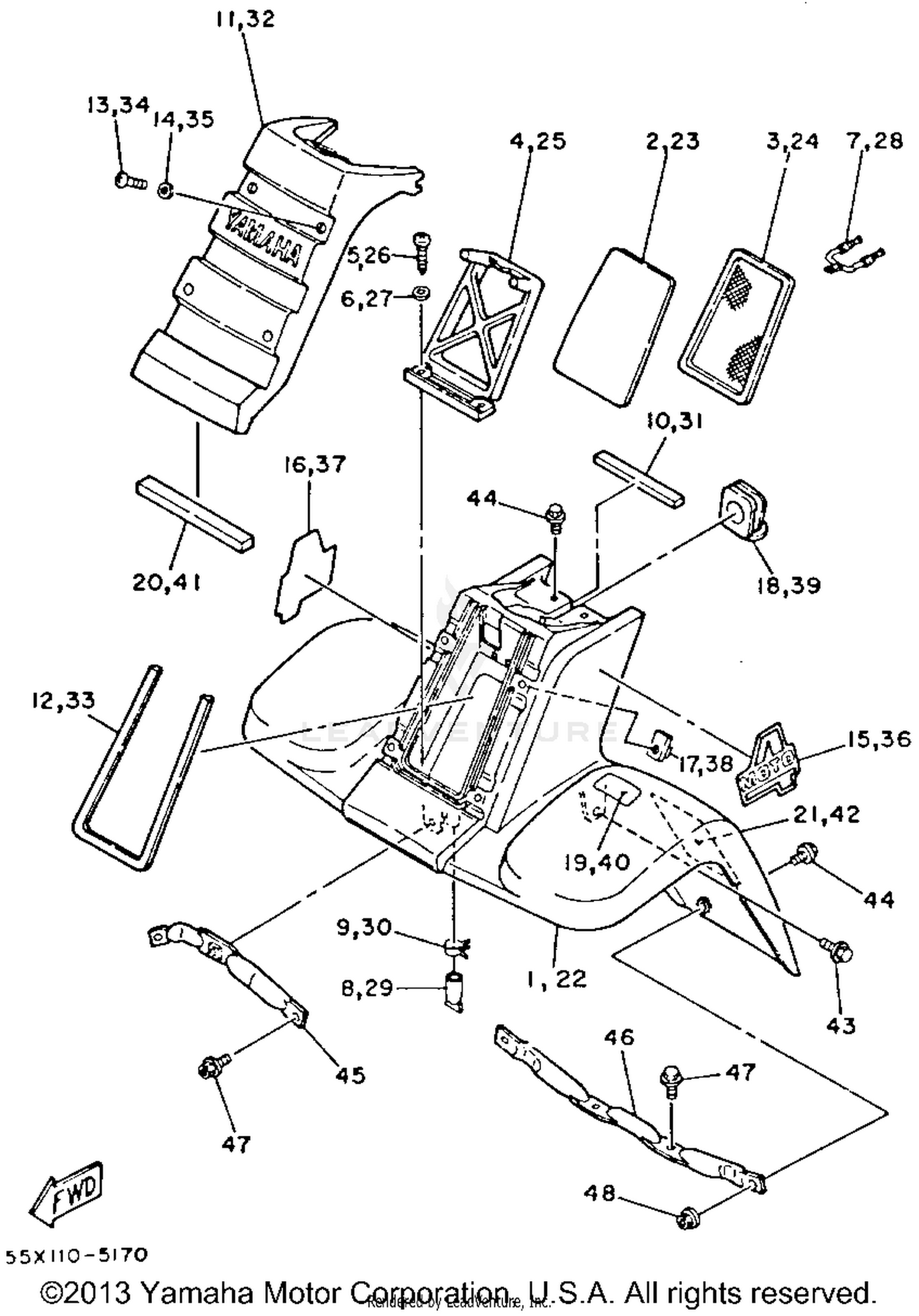

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT (55X-21511-01-00)
55X-21511-09-00
|
$177.99 | ||
|
Unavailable |
|||
|
#2
ELEMENT, AIR CLEANER
55X-14451-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, ELEMENT
55X-14472-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE
55X-14458-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, TAPPING
97780-40116-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
92990-04200-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOOK
55X-14436-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL
59V-14457-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP
90467-22080-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL 2
55X-21576-00-00
|
$2.60 | ||
|
Unavailable |
|||
|
#11
OVER, FENDER
55X-21551-00-00
|
$40.62 | ||
|
Unavailable |
|||
|
#12
SEAL 1
55X-21575-01-00
|
$18.99 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98506-05020-00
Superseded by 98517-05020-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
92906-05600-00
Superseded by 92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
GRAPHIC, FRONT FN 1
55X-21571-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
GRAPHIC FRT FNDR 2
55X-21572-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#17
NUT 1
55X-21535-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
DUCT
55X-14437-00-00
|
$12.40 | ||
|
Unavailable |
|||
|
#19
LABEL, CHOKE
55X-26139-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#20
DAMPER (55X-21541-00)
1X2-28372-00-00
|
$4.50 | ||
|
Unavailable |
|||
|
#21
LABEL, SAFETY
55X-21659-00-00
|
$7.06 | ||
|
Unavailable |
|||
|
#22
FENDER, front
2FJ-21511-10-00
|
$151.99 | ||
|
Unavailable |
|||
|
#23
ELEMENT, AIR CLEANER
55X-14451-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#24
PLATE, ELEMENT
55X-14472-01-00
|
$42.99 | ||
|
Unavailable |
|||
|
#25
GUIDE
55X-14458-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#26
SCREW, TAPPING
97780-40116-00
|
$3.85 | ||
|
Unavailable |
|||
|
#27
WASHER
92990-04200-00
|
$1.75 | ||
|
Unavailable |
|||
|
#28
HOOK
55X-14436-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#29
SEAL
59V-14457-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#30
CLIP
90467-22080-00
|
$7.49 | ||
|
Unavailable |
|||
|
#31
SEAL 2
55X-21576-00-00
|
$2.60 | ||
|
Unavailable |
|||
|
#32
OVER, FENDER
55X-21551-00-00
|
$40.62 | ||
|
Unavailable |
|||
|
#33
SEAL 1
55X-21575-01-00
|
$18.99 | ||
|
Unavailable |
|||
|
#34
SCREW, PAN HEAD
98506-05020-00
Superseded by 98517-05020-00
|
$4.00 | ||
|
Unavailable |
|||
|
#35
WASHER, PLATE
92906-05600-00
Superseded by 92907-05600-00
|
$3.55 | ||
|
Unavailable |
|||
|
#36
GRAPHIC, FRT FNDR 1
55X-21571-10-00
|
$8.49 | ||
|
Unavailable |
|||
|
#37
GRAPHIC FRT FNDR 2
55X-21572-10-00
|
$6.99 | ||
|
Unavailable |
|||
|
#38
NUT 1
55X-21535-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#39
DUCT
55X-14437-00-00
|
$12.40 | ||
|
Unavailable |
|||
|
#40
LABEL, CHOKE
55X-26139-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#41
DAMPER (55X-21541-00)
1X2-28372-00-00
|
$4.50 | ||
|
Unavailable |
|||
|
#42
LABEL, SAFETY
55X-21659-00-00
|
$7.06 | ||
|
Unavailable |
|||
|
#43
BOLT, WITH WASHER
90119-06056-00
Superseded by 90119-06152-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
SCREW, WITH WASHER
90159-05065-00
Superseded by 90159-05073-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
STAY, FENDER 2
55X-21514-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#46
STAY, FENDER 1
55X-21513-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#47
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#48
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
