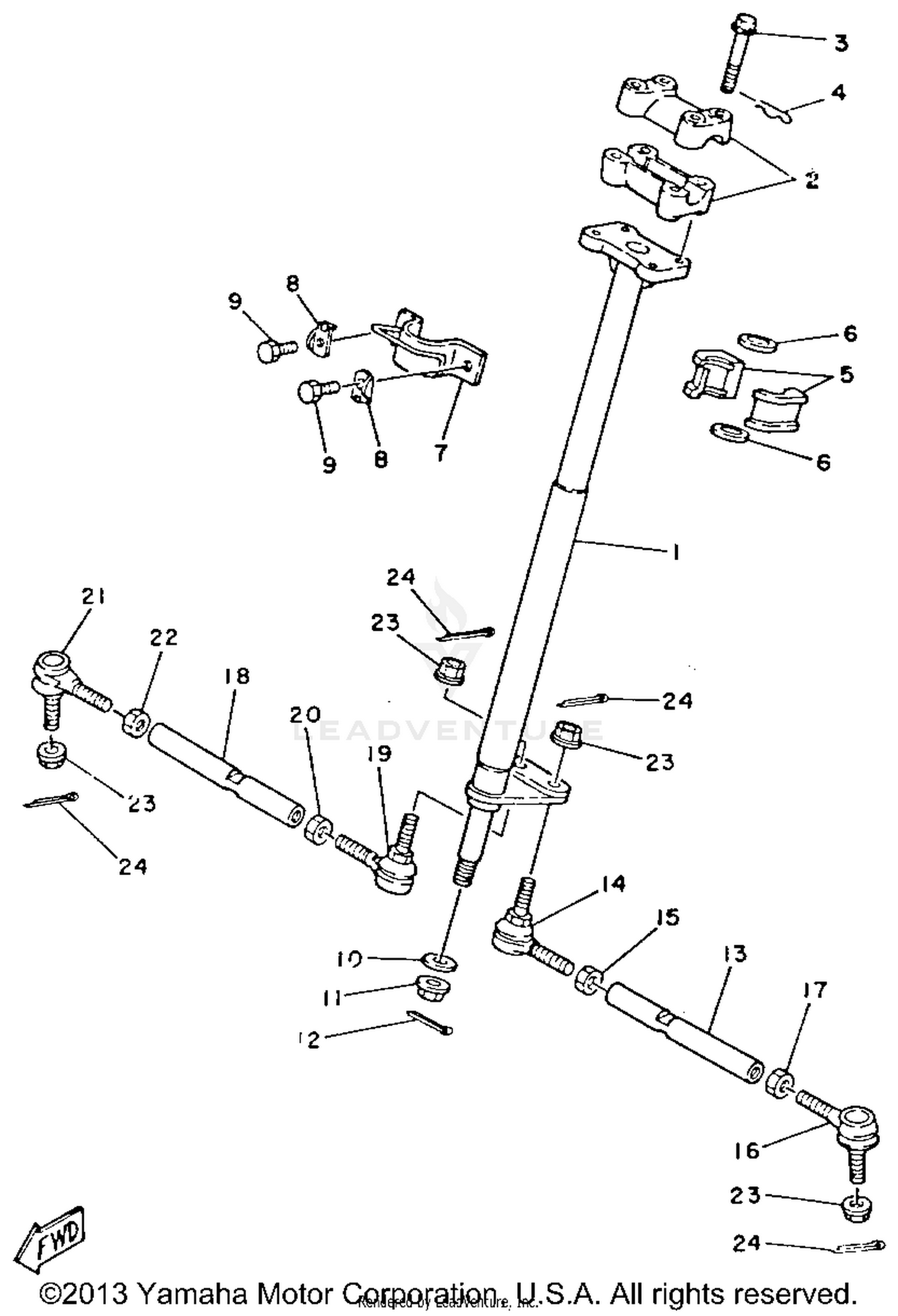

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLUMN, STEERING 2
55X-23813-00-00
|
$75.36 | ||
|
Unavailable |
|||
|
#2
HOLDER, HANDLE UNDER (8G5-23814
164-23441-00-98
Superseded by 164-23441-01-98
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WASHER BASED
90105-08350-00
|
$0.65 | ||
|
Unavailable |
|||
|
#4
CLIP
90468-12006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLANE BEARING, STEERING
52H-23812-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#6
OIL SEAL
93112-28007-00
|
$7.99 | ||
|
Unavailable |
|||
|
#7
BRACKET, STRG LOWER
55X-23868-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#8
WASHER, LOCK 1
90215-08262-00
Superseded by 8AC-23894-01-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97011-08016-00
Superseded by 97017-08016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-10774-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SELF-LOCKING
90185-10115-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROD TIE
55X-23831-01-00
|
$15.49 | ||
|
Unavailable |
|||
|
#14
JOINT, UNIVERSAL 1
55X-23841-01-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
95303-10700-00
Superseded by 95380-10700-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
JOINT, UNIVERSAL 2
52H-23845-01-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
90170-10186-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
ROD TIE
55X-23831-01-00
|
$15.49 | ||
|
Unavailable |
|||
|
#19
JOINT, UNIVERSAL 1
55X-23841-01-00
|
$74.99 | ||
|
Unavailable |
|||
|
#20
NUT
95303-10700-00
Superseded by 95380-10700-00
|
$5.65 | ||
|
Unavailable |
|||
|
#21
JOINT, UNIVERSAL 2
52H-23845-01-00
|
$56.99 | ||
|
Unavailable |
|||
|
#22
NUT
90170-10186-00
|
$9.49 | ||
|
Unavailable |
|||
|
#23
NUT, SELF-LOCKING
90185-10115-00
|
$8.49 | ||
|
Unavailable |
|||
|
#24
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
