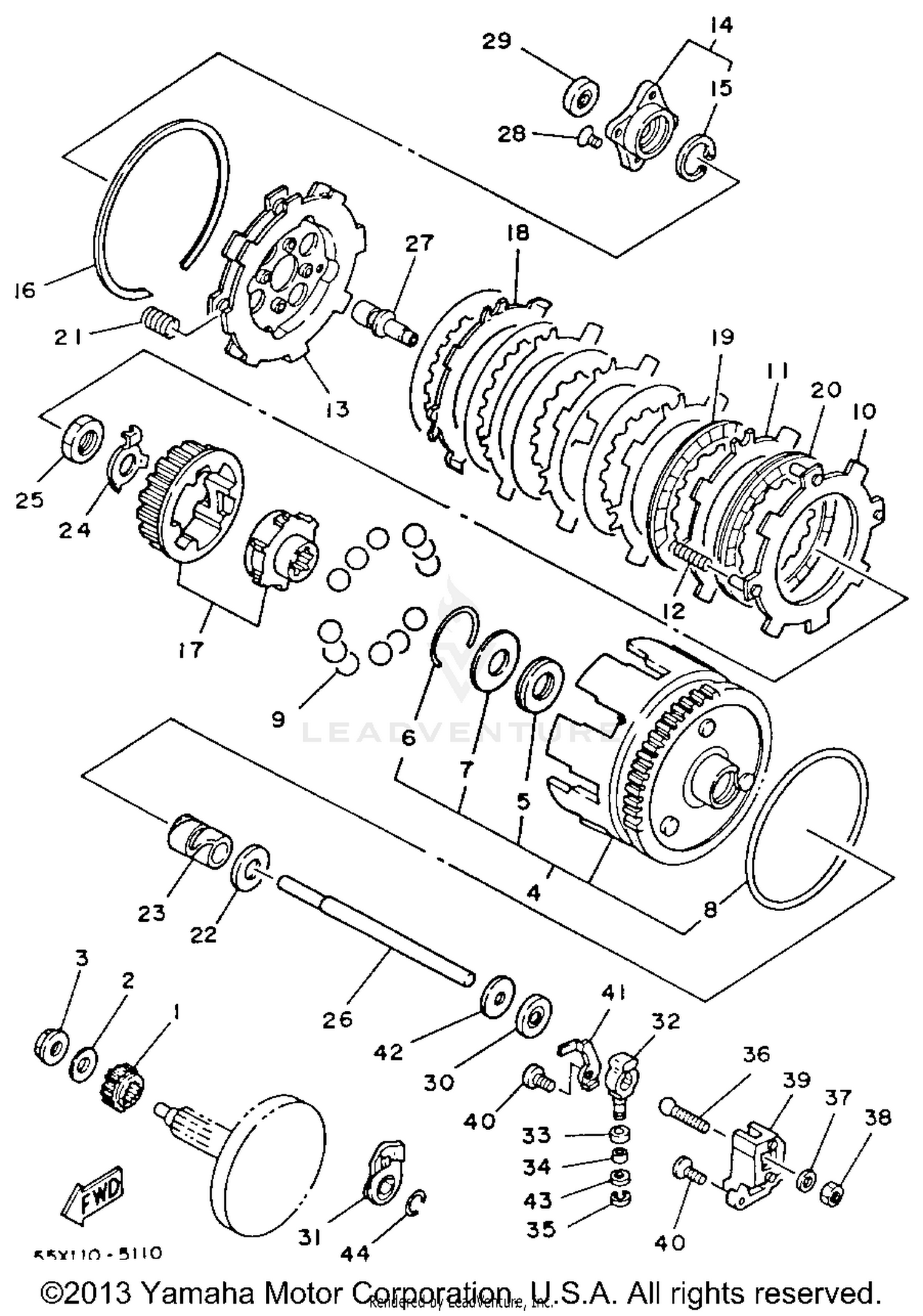

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE
22K-16111-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, CONICAL SPRING
90208-12015-00
Superseded by 90208-12800-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
90179-12244-00
Superseded by 90179-12659-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PRIMARY DRIVEN GEAR COMP
22K-16150-02-00
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, FLAT #41
93341-22302-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
93450-42112-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, THRUST (2.1T)
22F-16153-20-00
|
$19.49 | ||
|
Unavailable |
|||
|
#
WASHER, THRUST (2.3T)
22F-16153-30-00
|
$19.49 | ||
|
Unavailable |
|||
|
#
WASHER, THRUST (1.7T)
22F-16153-40-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER, THRUST (1.9T)
22F-16153-10-00
|
$21.99 | ||
|
Unavailable |
|||
|
#8
O-RING
93211-04665-00
|
$10.49 | ||
|
Unavailable |
|||
|
#9
BALL
93505-08030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, THRUST WEIGHT
22K-16520-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, CLUTCH 1 (1.2T)
517-16524-10-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLATE, CLUTCH 1 (1.6T)
517-16524-30-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLATE, CLUTCH 1 (1.4T)
517-16524-20-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, COMPRESSION
90501-105A5-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PRESSURE PLATE ASSY
22F-16550-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PUSH PLATE ASSY
22K-16590-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
93420-27069-00
Superseded by 93420-26077-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
93451-08094-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLUTCH BOSS SET
22K-W1657-00-00
Superseded by 22K-16570-00-00
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, CLUTCH 1
22F-16524-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, FRICTION
3E5-16521-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, FRICTION
22F-16521-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, COMPRESSION
90501-135A4-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, THRUST 2
122-16164-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPACER
90560-17146-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, LOCK
90215-14249-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
90170-14284-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
ROD, PUSH 2
22F-16357-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
ROD, PUSH 1
22K-16356-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, FLAT HEAD
90151-06028-00
Superseded by 98707-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
OIL SEAL
93104-10076-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL
93102-07292-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
LEVER, PUSH 2
22F-16362-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
LEVER, PUSH
22F-16342-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
COLLAR
90387-062G9-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR
90387-062G8-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#35
CIRCLIP
99080-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
AXLE, PUSH LEVER
22F-16382-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#39
GUIDE, PUSH ROD
22F-16399-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
SPRING, CLUTCH BOSS
22F-16383-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BUSH, SOLID
90380-07118-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER, THRUST 2
22F-16163-00-00
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#44
CIRCLIP
93440-11128-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
