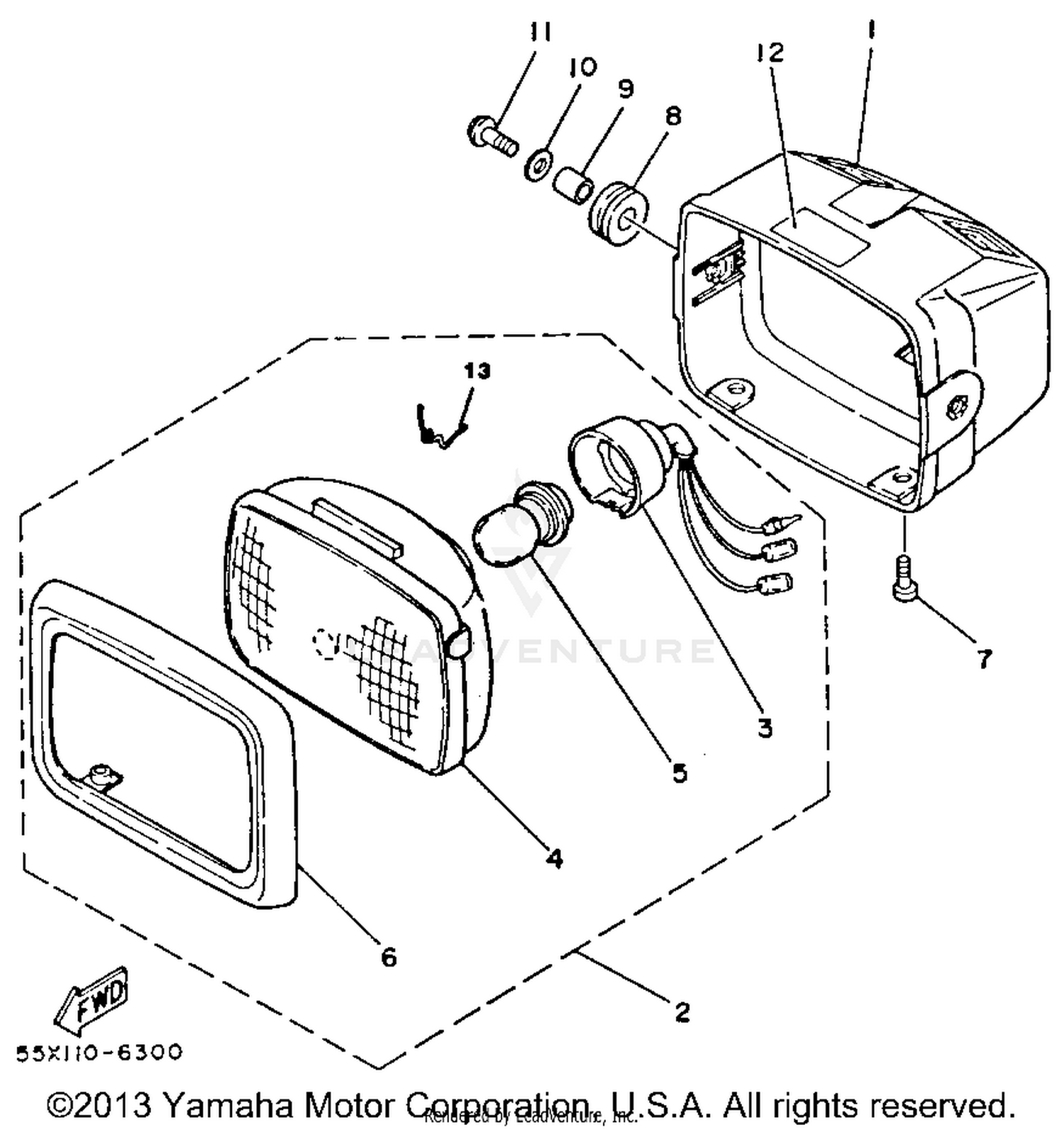

1986 Yamaha YFM80S HEADLIGHT OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSEMBLY
55X-84330-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
UNAVAILABLE IN PRICE BOOK
55-X8431-00-00
|
|||
|
Unavailable |
|||
|
#3
SOCKET
55X-84312-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#4
LENS ASSY
59V-84320-00-00
Superseded by 59V-84320-01-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BULB, HEADLIGHT (12V-25/25W)
102-84314-00-00
Superseded by 1YT-84314-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
RIM, HEADLIGHT
55X-84315-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#7
SCREW, PAN HEAD
98516-05012-00
Superseded by 98517-05012-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET
90480-18276-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR (90387-066J9)
90387-064W1-00
|
$2.20 | ||
|
Unavailable |
|||
|
#10
WASHER, PLATE
90201-06407-00
Superseded by 90201-06747-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95811-06016-00
Superseded by 95817-06016-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
EMBLEM
55X-21578-00-00
|
$4.50 | ||
|
Unavailable |
|||
|
#13
SPRING, SET
55X-84124-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
