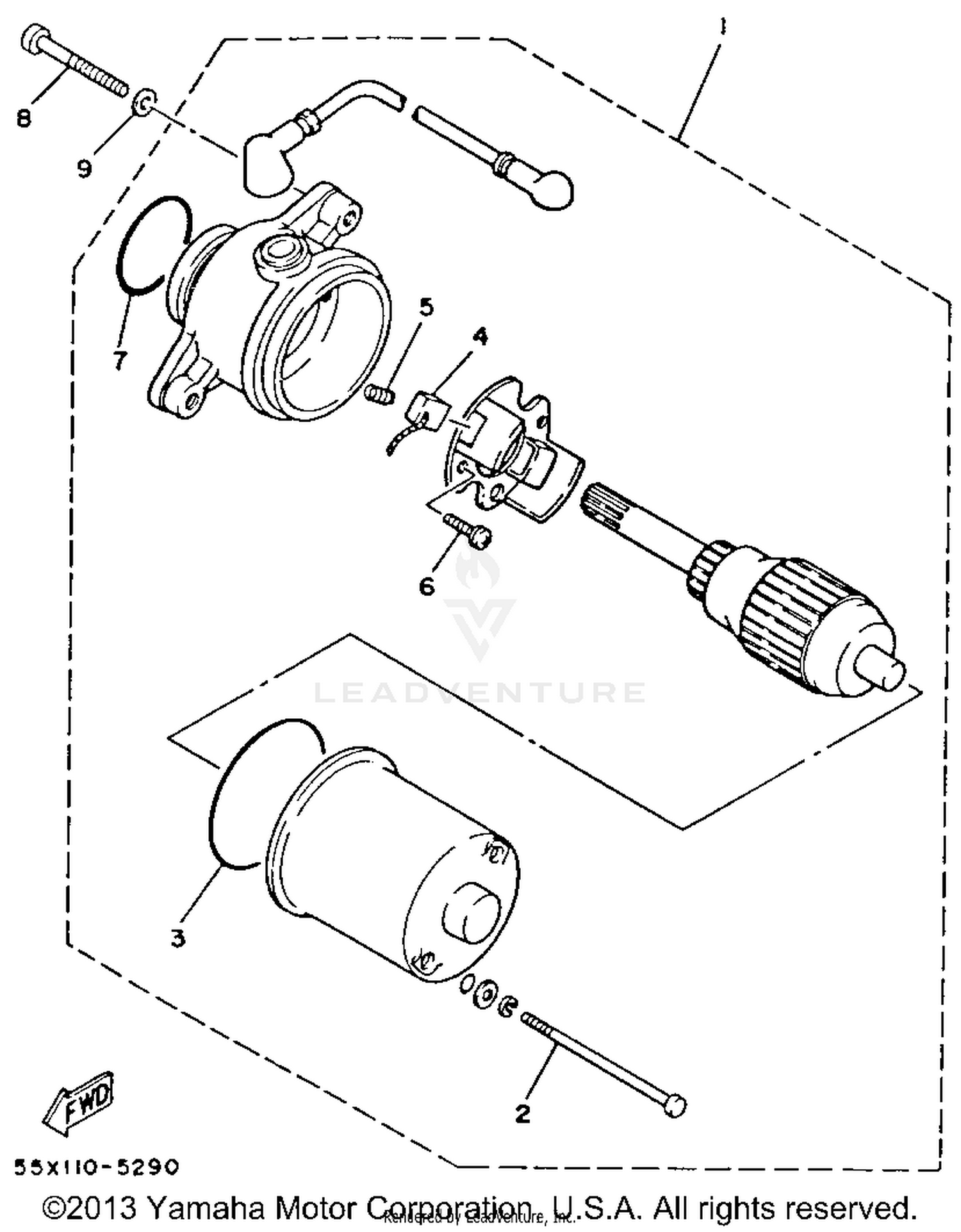

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTING MOTOR ASSY
55X-81800-51-00
|
$418.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
22J-81826-50-00
|
$22.99 | ||
|
Unavailable |
|||
|
#3
O-RING
5J3-81847-50-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRUSH SET
22J-81801-50-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, BRUSH
5J3-81855-50-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW,PANHEAD
97601-04112-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
22J-81847-50-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEXAGON SOCKET HEAD
91311-06035-00
Superseded by 91314-06035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
