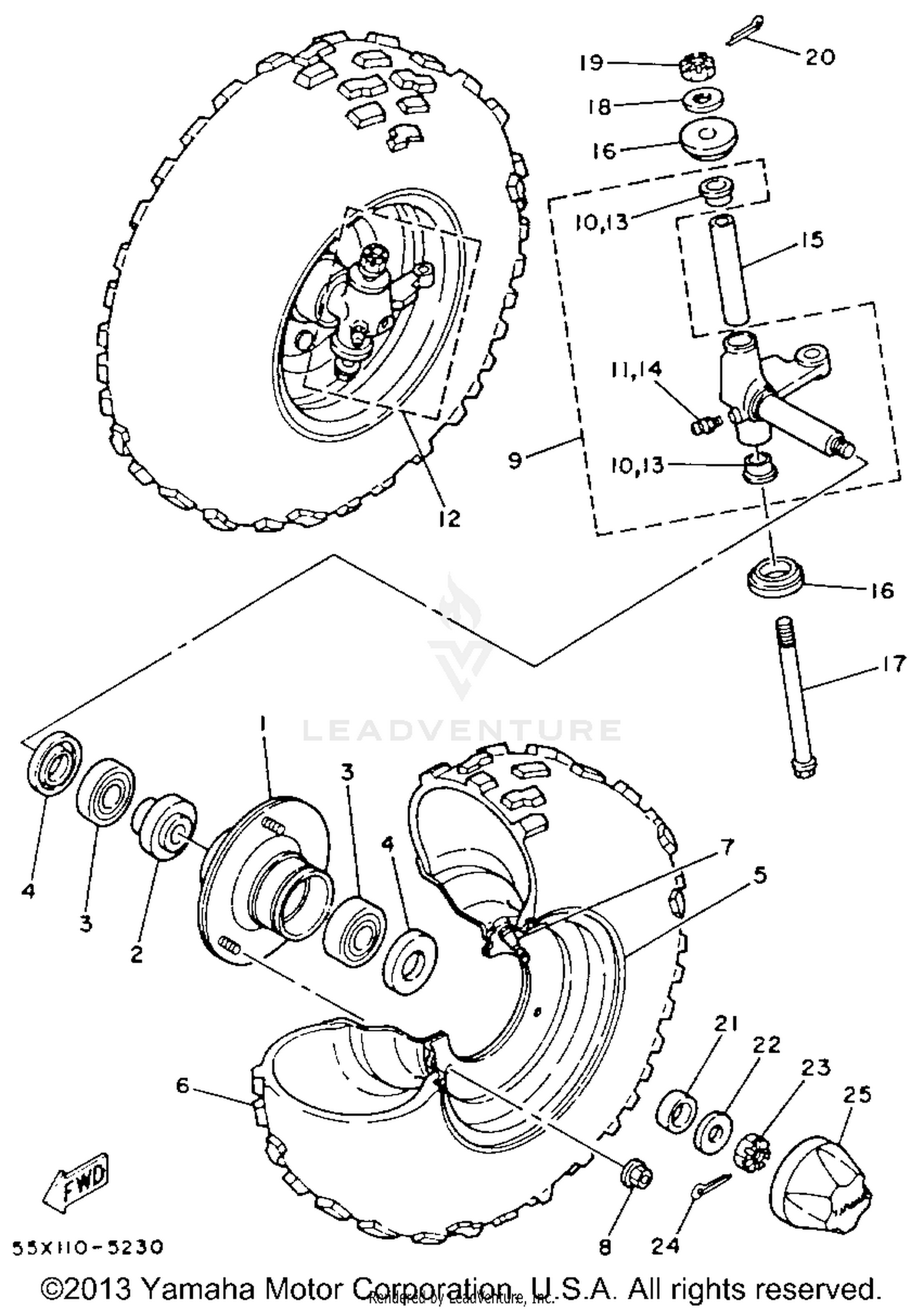

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
55X-25111-00-00
|
$66.48 | ||
|
Unavailable |
|||
|
#2
SPACER, BEARING
55X-25117-00-00
|
$6.26 | ||
|
Unavailable |
|||
|
#3
BEARING
93306-20310-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93102-23252-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
FRONT WHEEL COMP (55X-25180-00-
55X-25180-01-35
|
$105.99 | ||
|
Unavailable |
|||
|
#6
TIRE
94170-071K2-00
Superseded by 2D3-2510K-09-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE, RIM (TR412)
93900-00030-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
STEERING KNUCKLE L (LEFT)
55X-23501-00-00
|
$117.99 | ||
|
Unavailable |
|||
|
#10
BUSH, SOLID
90381-15032-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
STEERING, KNUCKLE R (RIGHT)
55X-23502-00-00
|
$117.99 | ||
|
Unavailable |
|||
|
#13
BUSH, SOLID
90381-15032-00
|
$25.99 | ||
|
Unavailable |
|||
|
#14
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Unavailable |
|||
|
#15
SPACER
55X-23448-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#16
COVER, THRUST 1
59V-23517-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
90109-104A8-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-08759-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, CASTLE
90171-10004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-175R2-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-120E8-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, CASTLE
90171-12039-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN. COTTER
91401-25030-00
Superseded by 91490-25030-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
CAP, WHEEL
52H-2512A-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
