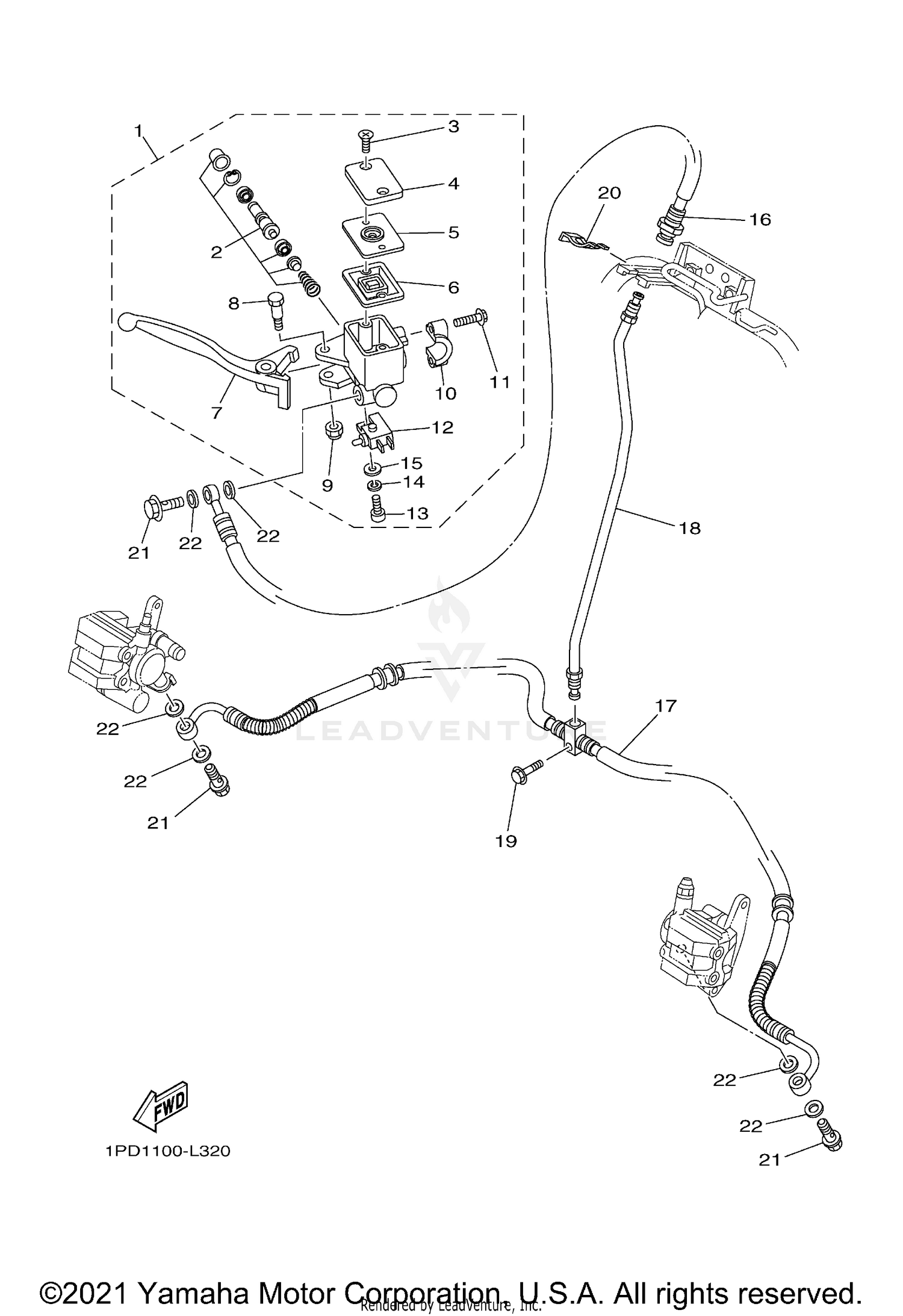

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER ASSY
4D3-2583T-02-00
|
$301.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
5D3-W0041-00-00
Superseded by 5HH-W0041-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, FLAT HEAD
98702-04012-00
Superseded by 98707-04012-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, RESERVOIR
5YU-25852-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, DIAPHRAGM
3B4-2585B-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DIAPHRAGM, RESERVOIR
4TT-25854-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER 2
4D3-83922-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, LEVER
3B4-2589F-30-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, MASTER CYLINDER
5MV-25867-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FITTING
5MV-25833-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
FRONT STOP SWITCH ASSY
5D3-83980-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98502-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92902-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
92902-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE, BRAKE 1
5TG-25872-10-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE, BRAKE 2
1PD-25873-00-00
|
$130.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIPE, BRAKE
5TG-25871-10-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95822-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP
2GU-25866-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, UNION
90401-10015-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
